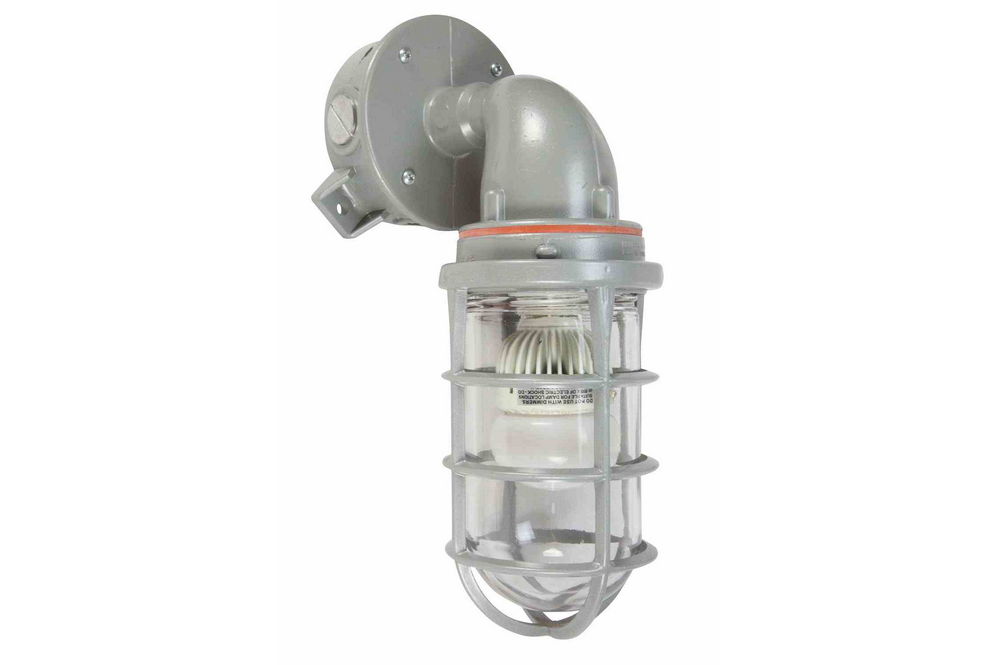

100W Hazardous Location Incandescent Light Fixture - C1D2 - 1470 Lumens - Aluminum Body - NEMA 4

LARSON ELECTRONICSSKU: PL3-HAL-MJ-100W
filler

Price:
Sale price$638.00

Description

Specifications / Additional Information
' Product Overview '
The HAL-MJ-100W from Larson Electronics is a Class I Division 2 Hazardous Location Incandescent Light Fixture. The copper-free aluminum construction with electrostatically applied epoxy/polyester finish resists corrosion and heavy-duty silicone gasketing meets NEMA 4 requirements. The HAL-MJ-100W produces 1470 lumens and operates on 120-277V AC or 11-25V AC/DC voltages. The HAL-MJ-100W has an acceptable operating temperature range of -20°C to 50°C and an operational life of 1,500 hours. The solid state design of the bulb used in this fixture means it is resistant to the effects of impacts and vibrations, providing adding durability to withstand conditions that would cause a normal incandescent bulb to fail. The overall dimensions of the included bulb are the same as a standard A19 incandescent lamp and the base is constructed of aluminum for durability and resistance to rust and corrosion. Voltage: The HAL-MJ-100W is configured to operate on voltages ranging from 120-277V AC. A low voltage configuration that operates on 11-25V AC/DC voltage is also available. Mounting: The HAL-MJ-100W is available in wall, pendant or ceiling mount configurations.
HAL-MJ-100W Hazardous Location LED Light Fixture Ratings/Features:
Type: Incandescent Class I, Division 2, Groups A, B, C & D
Ceiling Dimensions: 10.13" H x 4.25" OD Class I, Zone 2, Groups IIC, IIB & IIA
Pendant Dimensions: 9.76" H x 4.25" OD NEMA 3 & 4
Wall Dimensions: 12.38" H x 4.88" OD UL844 Listed
Temperature Rating: -20°C to +50°C
Voltage: 120-277V AC or 11-25V AC/DC
Watts: 100
Lumens: 1470
Housing Materials: Copper-Free Aluminum
Finish: Epoxy Coating Toll Free: 1-800-369-6671
Bulb Style: A19 Intl: 1-903-270-1187
Mounting: Wall, Pendant or Surface E-mail:
