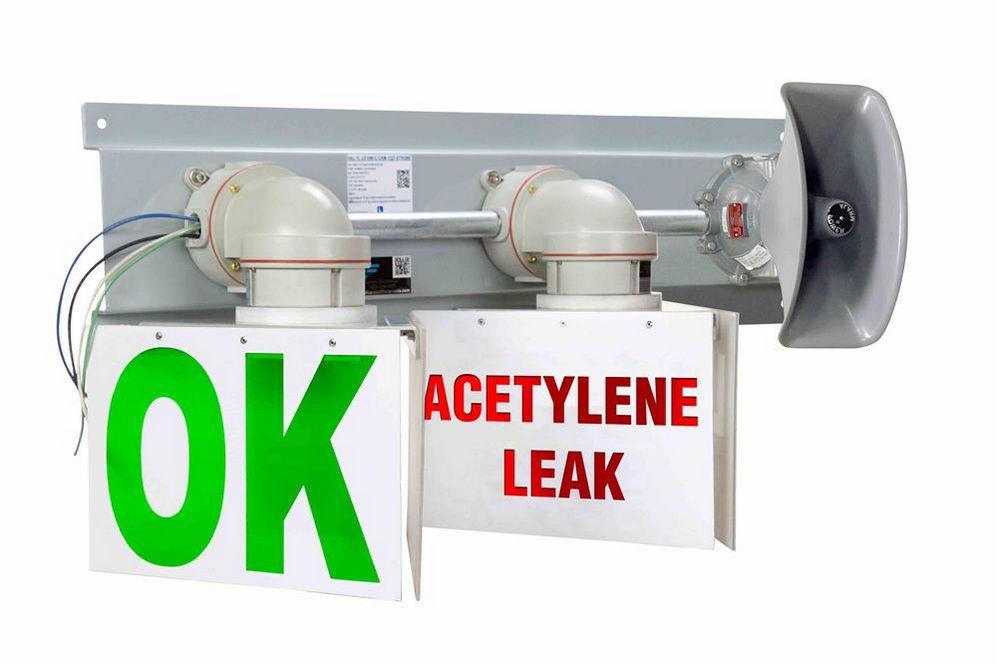

C1D2 20W LED Acetylene Leak Warning Sign Light & Horn - Non-Metallic - Corrosion Resistant - 110dBA

C1D2 20W LED Acetylene Leak Warning Sign Light & Horn - Non-Metallic - Corrosion Resistant - 110dBA

Sold by: LARSON ELECTRONICS

$6,528.00 CAD
$6,528.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
HAL-TL-2X10W-C-ACET-PA Explosion Proof LED Stack Light w/ Audible Alarm Ratings/Approvals
Lamp Type: LED United States & Canada
Colors: Green, Red Class 1,Division 2 Groups A,B,C,D
Watts: 10 Watts Per Lamp - 20W Total (7W each for 11-25V) UL Listed to CSA 22.2-137
Voltage: 120-240V AC 50/60 Hz or 24V DC Class 1,Division 2 Groups A,B,C,D
Lighting Configuration: Strobe light or Steady Burn UL 844: Class1 Division 2 Hazardous Location
Sound Level: Up to 110dbAW @ 10ft from Horn UL 595: Outside Marine
Lamp Life: 50,000+ Hours UL 1570/1571: Wet Locations
Sign Wordage: OK, ACETYLENE LEAK NEMA 4X
Mount: Predrilled Aluminum Base -29°C to 40°C (-29°F to 104°F) Op Temp
Mounting Dims: 22"L x 16"H x 12"D CSA Approved
Horn Decibels: 110dBA USCG Accepted
New York City Department of Buildings Approved
Material meets UL 94-V-0 standards for flame retardant
Explosion Proof Horn Indicates Acetylene Leaks

' Product Overview '
Made in the USA The HAL-TL-2X10W-C-ACET-PA Class I Division 2 Chemical Resistant Acetylene Leak Level Warning Light and Horn from Larson Electronics is chemical resistant and approved for use in wet locations and marine environments. This waterproof LED equipped light is designed for use in industrial environments where acetylene levels are monitored within the atmosphere. When the red acetylene leak light comes on, triggered by an operator provided sensor, the warning horn will sound to alert operators to the acetylene leak. The powerful and durable HAL-TL-2X10W-C-ACET-PA hazardous location LED light from Larson Electronics is an ideal indicator lighting solution for industrial refueling stations and areas where acetylene exists in the workplace. The housing is waterproof, constructed of corrosion and chemical resistant body that is equipped with Pyrex globes with polycarbonate globe guards, USCG accepted, and NEMA 4X compliant and suitable for hose-down areas. This LED signal lamp and warning horn has a 50,000 hour operational life and is available in 120-240V AC or 24V DC configurations for high or low voltage operation. Each lamp is equipped with a warning sign and horn to indicate the presence of an acetylene within the environment. A green LED lamp illuminates the "OK" sign to indicate that there is no leak present. A red LED lamp illuminates the "acetylene LEAK" sign to indicate that a leak is present. When the red LED lamp turns on due to a leak, the warning horn will sound to alert people within the vicinity of the situation. The horn reaches a peak output of 110dBA which is powerful enough to be heard over industrial operations. Please Note: This indicator lighting system does not monitor the presence of an acetylene leak. Customer provided equipment is required for the measurement of O2 levels within the hazardous location. The HAL-TL-2X10W-C-ACET-PA provides a visual and audible indication of levels and works in conjunction with existing monitoring systems.
This hazardous area LED light carries has a -29°C to 40°C (-29°F to 104°F) operating temp range. The HAL-TL-2X10W-C-ACET-PA is Class I Division 2 approved, carries UL 1570/1571 and UL 595 compliance, and is waterproof and suitable for spray down areas and marine locations. Power is provided by a shared neutral and ground, with separate hot wires for each lamp to allow each LED lamp to be powered independently. This LED light carries UL and CSA certification, USCG acceptance, NTRL Listing for wet locations in any orientation, UL595 approval for marine environments, and NEMA 4X compliance for hose down areas. The HAL-TL-2X10W-C-ACET-PA is equipped with an explosion proof horn providing operators in hazardous locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery and equipment. The HAL-TL-2X10W-C-ACET-PA is designed for resistance to the damaging and corrosive effects of chemicals with polycarbonate construction instead of metal, and is ideal for locations where these hazardous compounds are commonly encountered. Mounting is provided by a heavy gauge aluminum base with four predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. This hazardous location LED warning sign light and horn is configured for green and red output (one lamp each color) offers exceptional lumen output, a 50,000+ hour life span, and the lamps are protected by Pyrex globes and polycarbonate globe guards. The LED lamps in this indicator light are 10 watts each and offer cool operation and clean bright output that surpasses that of 100 watt incandescent indicator lamps. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Note on Lights: Please note, the color choices and light configuration of this unit can be customized to your requirements. We offer steady burn or strobing LED lamps, as well as high or low voltage configurations. Sign wordage customization is available. Please contact us for special color configurations. Voltages: 120-240V AC 50/60Hz or 24V DC
