168W Hazardous Area LED Light Fixture - 6 Lamp - 21000 Lumens - Paint Spray Booth Rated
168W Hazardous Area LED Light Fixture - 6 Lamp - 21000 Lumens - Paint Spray Booth Rated
| HALD-48-6L-LED LED Paint Booth Fixture | Approvals/Ratings |
| Lamp Type: T8-Style LED Tubes | Class I Division 2, Groups A, B, C, D |
| Fixture Dimensions: 19.50"W x 50.00"L x 2.25"D | Class II Division 2 Groups F,G |
| Flange Dimensions: 23.00"W x 51.875"L (Extends 0.375" into Spray Booth) | IP20 Ingress Protection Rating |
| Inset Dimensions: 19.50"W x 50.00"L | ETL listed U.S. and Canada |
| Minimum Hole Size: 20.75"W x 50.875"L | Class II Division 2 Groups F,G |
| Cutoff Switch: 10 Watts @ 300 V AC (Max) Momentary Contact Switch | NRTL Certified to UL-1993 |
| Total Watts: 168 Watts | NRTL Certified to UL-1993 CLS |
| Voltage: 100-277 Volts AC, 50/60 Hz or 11-25 Volts AC/DC | NRTL Certified to CAN/CSA C22.2 No 1993 |
| Total Lumens: 21,000 | |
| Lamp Life Expectancy: 50,000 Hours | |
| Luminous Efficacy: 125 Lm/W | |
| Weight: 45 lb | |
| Color Temperature: 3000K, 4500K, or 5600K | |
| Color Rendering Index: 85+ | |
| Beam Angle: 150° | |
| Lighting Configuration: Flood Pattern | Special Orders - Requirements |
| Power Efficiency: 90% | |
| Power Factor: >0.95 | Toll Free: 1-800-369-6671 |
| Ambient Temperature Rating: -40°C to +65°C | Intl: 1-214-616-6180 |
| Mounting: Recessed Panel Mounting | |
| Wiring Hub: 1/2" Threaded NPT Hub |
Made in the USA

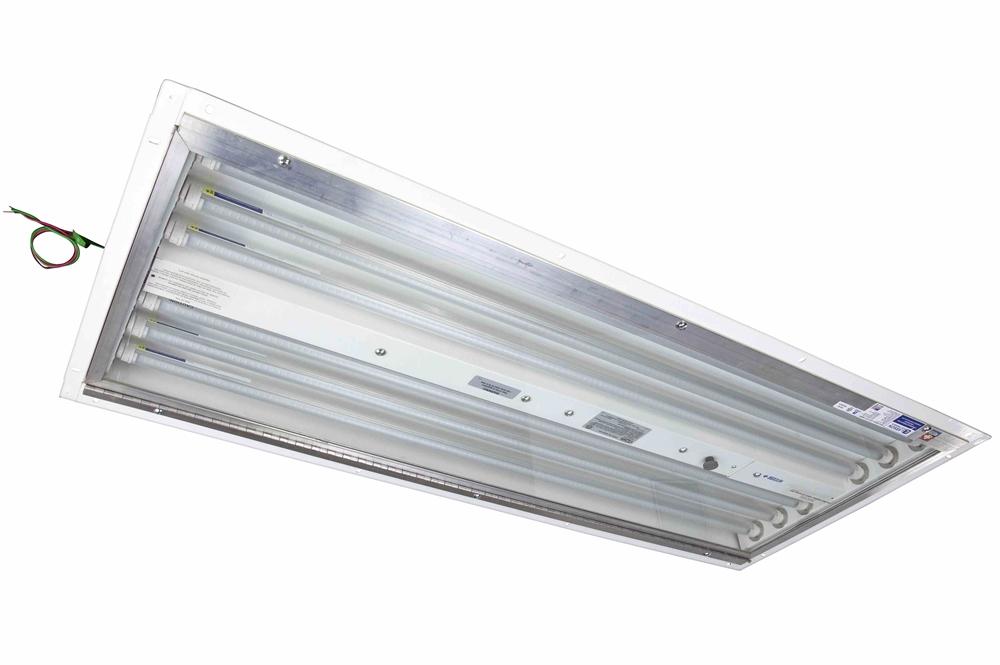

The HALD-48-6L-LED from Larson Electronics is a Hazardous Area LED Light Fixture that is designed to provide a thin fixture profile which allows for the maximum use of available space. This LED fixture is U.S./Canada approved Class I Division 2, Groups A, B, C and D - Class II Division 2, Groups F and G and designed for paint spray booths and locations where flammable chemical/petrochemical vapors are present. The HALD-48-6L-LED is offered in 100-277 Volts AC, 50/60 Hz or 11-25 Volts AC/DC voltage configurations and draws a total of 168 watts while producing a total of 21,000 lumens. THIS FIXTURE IS NOT APPROPRIATE FOR SURFACE MOUNT APPLICATIONS.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS LIGHTING SYSTEM*
The HALD-48-6L-LED Explosion Proof fixture is a 4 foot long, 6 lamp, Class I Division 2 hazardous area LED light and ideal for use in paint spray booths and hazardous locations where space for lighting fixtures is limited. This fixture is IP20 ingress protection rated, comes standard with T-series LED tube lamps, and features an integrated momentary paint spray system cutoff switch that is activated when this fixture's lamp door is opened. The lamps are protected by a steel framed, hinged, 3/16" thick glass door that provides direct front access to the two lamps.
|
