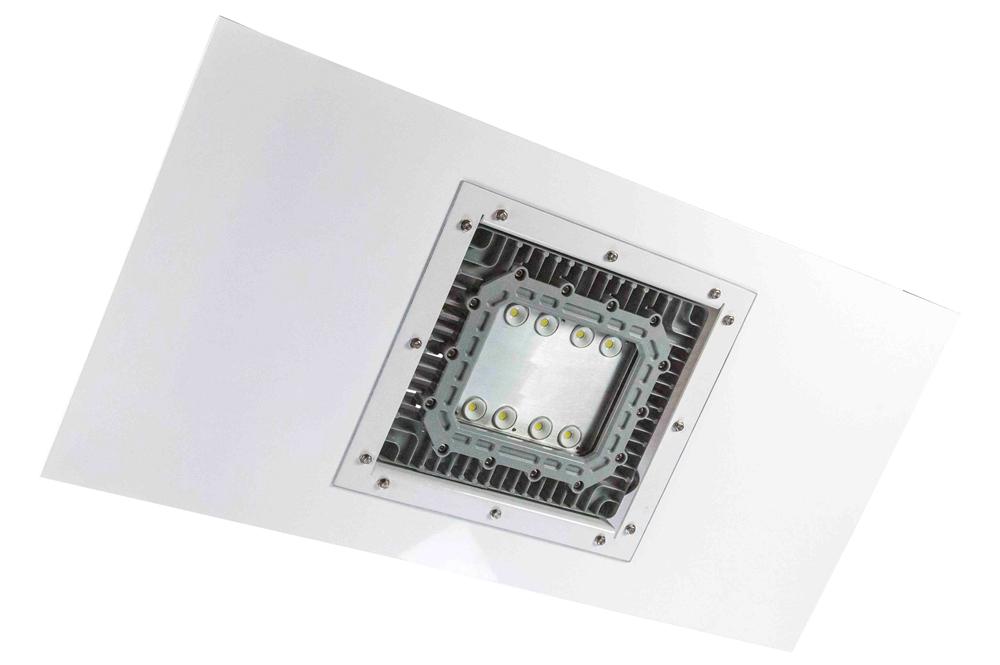

100W Low Profile Explosion Proof LED Light - 2x4 Lay-In Troffer Class 1/2 Div 1/2 Paint Spray Booth - Emergency Battery Backup

LARSON ELECTRONICSSKU: PL3-HALD-EMG-48-1X100LED
filler

Price:
Sale price$5,837.99

Description

Specifications / Additional Information
HALD-EMG-48-1X100LED HAZLOC Lay-In Panel Mount Emergency Light Ratings/Approvals
Listing: United States - Canada NRTL Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 48"-L x 24"-W x D-5.38" Class II, Divisions 1 & 2, Groups E,F,G
Flange Dimensions: 48"-L x 24"-W Class III, Divisions 1 & 2
Weight: 43 lbs NRTL Certified to UL 844 Ed. 13
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC NRTL Certified to UL 1598
Total Watts: 100W NRTL Certified to C22.2 No. 137 Rev 2009
Total Lumens: 11,666 NRTL Certified to C22.2 No. 250.0
Luminous Efficacy: 116.67 Lm/W NRTL Certified to C22.2 No. 30-M-1986 Rev 2012
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5600K, 4500K, 3000K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Mounting: Recessed Panel Mounting 80% Lumen Retention after 60,000 Hours
Power Factor: 0.992 Factory Sealed Light Fixture
Emergency Runtime: 90 Minutes
Emergency Watts: 25W
Emergency Lumens: 2,916.5
Battery Recharge Time: 24 Hours
Ambient Operating Temp Range: -50°C to +65°C
Operating Temp Rating: T5
Housing Material: Steel
Housing Finish: Powder Coated - White
Lens Material: Polycarbonate
Wiring Hub: 3/4" NPT
LED Driver Specs
Input Voltage: 100-277 Volts AC Special Orders - Requirements
Input Current: 1.8A Max
Power Factor: >98% Toll Free: 1-800-369-6671
Efficiency: >88% Intl: 1-214-616-6180
Output Voltage: 54V Max
Output Current: 2.1A
' Product Overview '
Made in the USA The Larson Electronics HALD-EMG-48-1X100LED Hazardous Area LED Emergency Light Fixture is designed to provide operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This LED panel mount fixture is ETL listed Class I Division 2, Class II Divisions 1 & 2, and is approved for use within paint spray booths. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for paint booths and hazardous locations where flammable chemical/petrochemical vapors are present. This fixture is equipped with an added battery backup providing 90 minutes of emergency runtime. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The HALD-EMG-48-1X100LED Explosion Proof emergency fixture is a 2x4 Class I Division 2 hazardous location lay-in LED light fixture and is ideal for use in paint spray booths and hazardous environments where space for lighting fixtures is limited. This fixture is T5 temperature rated and is a fully integrated LED unit. The LED assembly is protected by an aluminum framed, hinged, 3/16" thick polycarbonate door that provides direct front access to the internal components. The lamp housing is designed for recessed mounting, and is constructed of non-sparking aluminum coated with a powder coated white finish. This Class I Division 2, Class II Divisions 1 & 2 explosion proof emergency light fixture provides 11,666 lumens of high quality light while drawing only 100 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. The integrated LED assembly in this unit features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twenty-four individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 11,666 lumens with a color temperature of 5600K, 4500K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. Emergency Backup: This emergency LED light works, mounts, and is wired like our HALD-EMG-48-1X100LED explosion proof LED light fixtures. The main difference is we added a battery backup unit that provides emergency light functionality to the fixture. This hazardous area emergency light will run at 25 watts for 90 minutes (based on UL standards) after power is lost at 2,916.5 lumens. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is automatically recharged and kept in a ready state. Mounting: This fixture is designed for recessed mounting and requires a mounting hole to be made in booth panels capable of accommodating the fixture housing in order to provide the maximum amount of space in paint spray booth enclosures. Once mounted, this fixture`s door frame will extend 3/8" into the spray booth. Applications: Paint spray booths and enclosed spaces where flammable chemical/petrochemical vapors are present.
