|HALP-24-2L-2N Hazardous Area||U.L. Ratings|
|UL Listings: United States - Canada||Class 1 Division 2, Groups A, B, C, D|
|Dimensions:L-25.88â€ x W-7.21â€ x H-5.43â€||UL 844|
|Weight:Â 10Lbs||UL 1598A Marine Type (Salt water)|
|Total Watts: 48 watts*||California Title 24 Compliant|
|Voltage:Â 120-277 AC 50/60HzÂ||cUL Listed for CanadaÂ|
|Total Lumens:Â T5-HO BulbsÂ 4,400||Meets USCG Specs|
|Lamp Life Expectancy:Â T5-HO Bulbs 20,000 Hours||T4 Temperature Rating|
|Efficiency: STD-T5-HO BulbsÂ 92 Lumens per Watt|
|Operating Temp Range: T4A RatedÂ -20 C to +70 C||Â|
|Minimum Operating Temp:Â -20 C||Â|
|Maximum Case Temp:Â 70 C||Â|
|Beam Angle: N/A|
|Color Temp: 5000K- T5-HO BulbsÂ|
|Surface Mounting: Flange type aluminum bracketsÂ|
|Pendant Mounting (2) 1/2" or 3/4" hubsÂ on either side of fixture||Intl:Â 1-214-616-6180|
|Wiring Hub:(4) 1/2" or 3/4" inch threaded hubs||Fax:Â 1-903-498-3364|
|U.L Approval: Â||E-mail:Â|
|Meets US Coast Guard specifications.||Â|
|*Wattage totals are lamps only and may vary with different lamps.||Â|

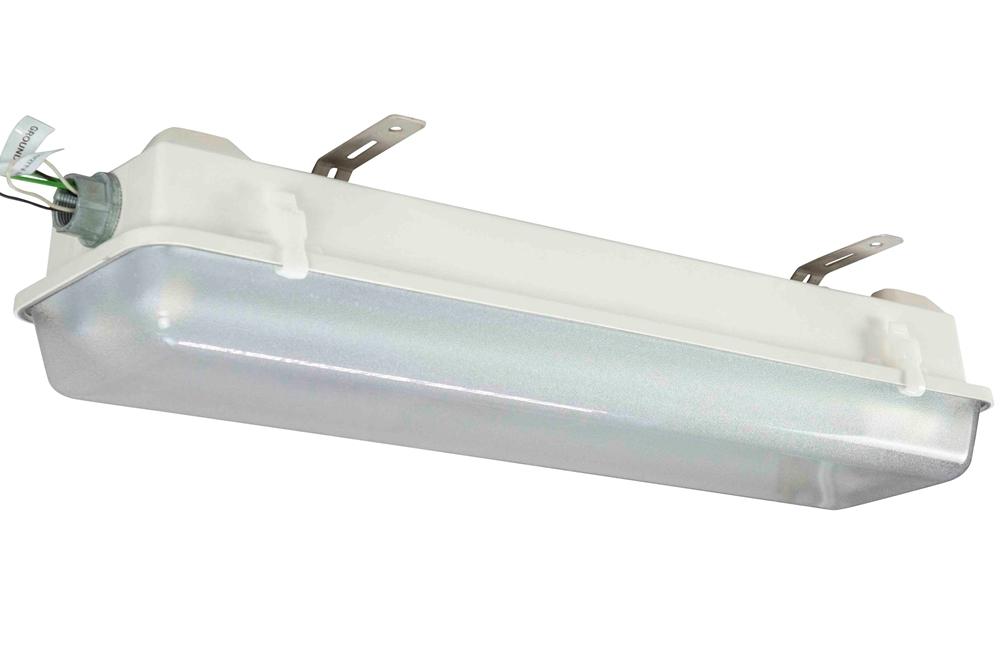

|Made in the USA The Larson Electronics HALP-24-2L-2N Hazardous Area Fluorescent Light Fixture is U.S./ Canada UL Listed Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4AÂ temperature ratingÂ and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-24-2L-2N hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistantÂ plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-24-2L-2N also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This lamp ideal for hazardous areas where corrosion resistance is mandatory and space limitations require a compact lighting solution.|
NOTE ON LAMPS: This fixture comes equipped with-T5/HO â€“ 24 Watt lamps producing 2,500 lumens per bulb, aÂ 5000 Kelvin color and a 20,000 hour rated service life. We offer -T12/HO â€“2025 lumens per bulb, 12,000 hours life, 4100 Kelvin color and T8/ â€“ 1500 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HALP-24-2L has an electronic universal ballast that works on 120-277 AC 50/60 Hz.Â
Surface Mounting: Flange type aluminum brackets attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 14.91" inches on center apart along the top of this hazardous location light. The mounting holes are 9.5" inches on center across the top of the light.
Pendant Mounting:This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4" NPT hubs on either side of the Â fixture. Operators will bring rigid pipe down to the threaded mounting hubs. The wiring is fed down through the rigid pipe to one of the NPT hubs and tied to the fixture`s lead wires to complete the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture.
Suggested Applications:Â The HALP-24-2L-2N is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
