The Larson Electronics HALP-24-2L-LED-SIBAB-SSÂ Suspended Stainless Steel I-Beam Mount Hazardous Area LED Light Fixture is NRTL U.S./Canada approved Class 1 Division 2 Groups A, B, C and D, NRTL Certified to UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This hazardous location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers.
This two foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-24-2L-LED-SIBAB-SSÂ suspended I-beam mount bracket hazardous area LED light fixture is designed for upward lighting for pits in work stations, downward lighting for pipe racks and under shelving or for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. The stainless steel I-beam mounting brackets suspend the fixture 1-1/8` below the I-beam while the brackets allow the fixture to be adjusted vertically up and down.
We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location lightâ€™s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The two foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which isÂ over twice as long as standard T8 bulbs.
The HALP-24-2L-LED-SIBAB-SSÂ is NRTL Certified to UL 844 and Class 1 Division II, Groups A, B, C, D approved. This fixture is also NRTL Certified to UL 1598A outdoor marine use and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the includedÂ Â LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, emitting light. The LED assembly is mounted to the "tube" constructed from extruded stainless steel , with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 14 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 1,750 lumens at 125 lumens per watt, for a combined 3,500 total lumen light output. A HAL-24-2L-T8 hazardous location fluorescent light, with a combined total of 34 watts, draws 0.29 amps at 120 volts AC. This LED version of the same light, with a total of 56 watts, draws only 0.47 amps at 120 volts AC. The HALP-48-2L-LED is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.

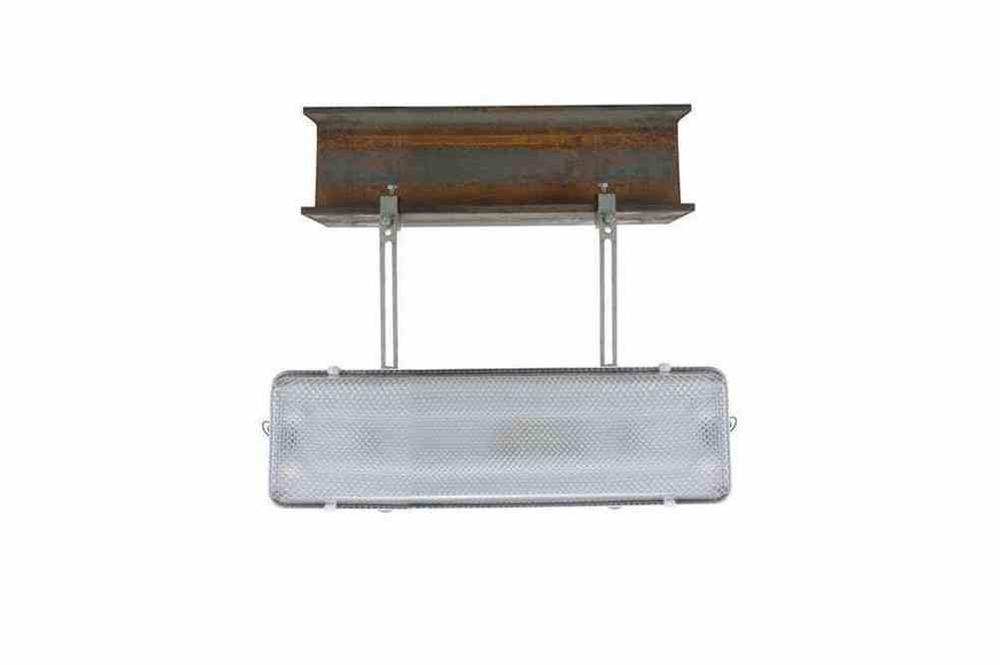

Mounting:Â This I-beam mount fixture is equipped with two stainless steel I-beam clamps machined from 316 stainless steel and two stainless steel adjustable flange brackets. This custom combination of brackets allows operators to secure the light fixture to existing I-beams without penetrating the I-beam. The adjustable flange brackets provide shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. Once installed the center of the light fixture housing will sit 1`-1.5` below the I-beam and operators can adjust the fixture 45Â° each direction, for a total of 90Â° of adjustability.
Suggested Applications:Â The HALP-24-2L-LED-SIBAB-SSÂ is designed for upward lighting for pits in work stations, downward lighting for pipe racks and under shelving, and marine, wet, damp locations where corrosion resistant lights are required or are already present. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
|Energy Consumption Comparison
|Amp Draw @ 120V AC
|Amp Draw @ 220V AC
|Amp Draw @ 240V AC
|Amp Draw @ 277V AC
|Amp Draw @ 12V DC
|Amp Draw @ 24V DC
|Lamp Life Expectancy
||5000KÂ / 4100K
|Operation cost per year
(12hs/day @ 12c/kWh)
|Made in USA Quality
||Superior LED Benefits
|1. Each unit dialectically tested.
2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface.
3. Fixture housing constructed of glass fiber reinforced polyester.
4. No ballast box. No ballast to replace. We simply run the black wire to one end of the bulb and white wire to the other.
5. Re-lamping done via 8 stainless steel snap locking latches which enables the operator to remove the door and access the lamps.
6. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection.
7. 1/2" or 3/4", threaded access hole for wiring conduit.
||1. 50,000 hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LEED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off â€“ No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
