Class I, Division 2 LED Light - 2 foot, 3 lamp - Corrosion Resistant Construction (Saltwater)

LARSON ELECTRONICSSKU: PL3-HALP-24-3L-LED
filler

Price:
Sale price$863.99

Description

Specifications / Additional Information
HALP-24-3L-LED Hazardous Area Ratings/Approvals
UL Listing: United States - Canada Class I Division 2, Groups A, B, C and D
Dimensions: L- 25.88" x W - 7.21" x H - 5.43" Class II, Division 2, Groups F, G
Weight: 8 Lbs UL 844
Voltage: Universal 120-277VAC 50/60 Hz or 11-25V AC/DC UL 1598A Marine Type
Total Watts: 42 watts California Title 24 Compliant
Total Lumens: 5,250 cUL Listed for Canada
LED Lamp Life Expectancy: 50,000+ Hours Meets USCG Specs
Luminous Efficiency: 125 Lumens per Watt T4 Temperature Rating
Color Temp: 5600K, 4500K, 3000K
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-30° C to +85°C
Operating Temp Rating: T4 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Wiring Hub: 3/4" inch threaded NPT hubs
Housing Material: Fiberglass Reinforced Polyester
Lens Material: Acrylic Toll Free: 1-800-369-6671
Surface Mounting (2) aluminum flange brackets Intl: 1-214-616-6180
Pendant Mounting: (2) 1/2" or 3/4" hubs  on either end of fixture Fax: 1-903-498-3364
U.L Approval:    E-mail:
' Product Overview '

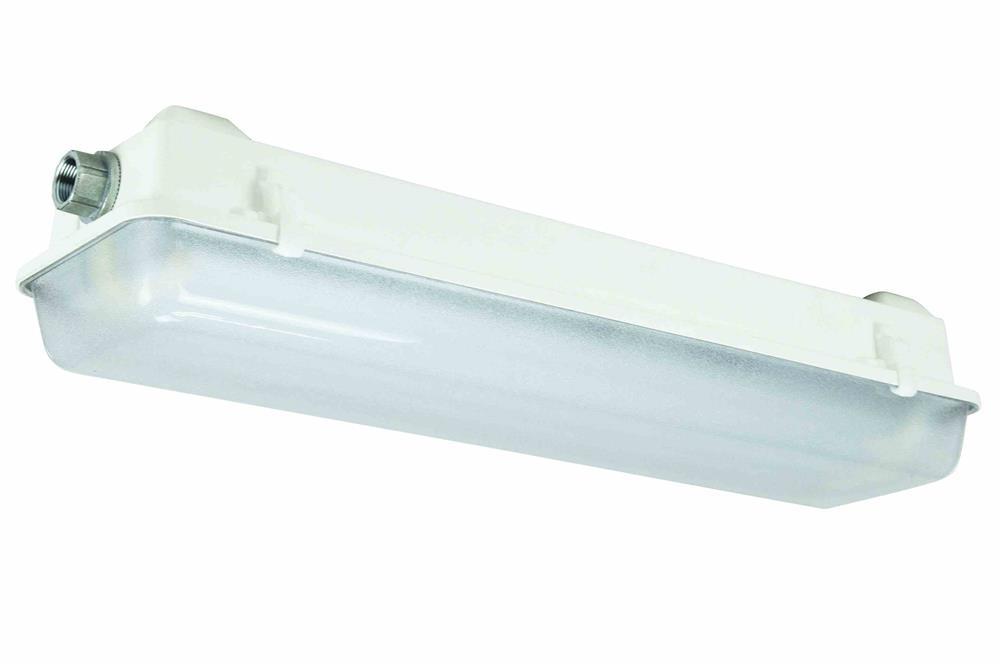

Made in the USA The Larson Electronics HALP-24-3L-LED Hazardous Area LED Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This hazardous location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. This two foot long, three lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-24-3L-LED hazardous area LED light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Four corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs. The HALP-24-3L-LED is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. This fixture also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Click Photo to Enlarge
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. The 14 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 1,750 lumens at 125 lumens per watt, for a combined 5,250 total lumen light output. A HAL-24-3L-T8 hazardous location fluorescent light, with a combined total of 51 watts, draws 0.43 amps at 120 volts AC. This LED version of the same light, with a total of 42 watts, draws only 0.35 amps at 120 volts AC. The HALP-24-3L-LED is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power. Surface Mounting: Flange type aluminum mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 14.91" inches on center apart along the top of this hazardous location light. The mounting holes are 9.5" inches on center across the top of the light. Pendant Mounting: This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4" NPT hubs on either side of the  fixture. Operators will bring rigid pipe down to the threaded mounting ups. The wiring is fed down through the rigid pipe to one of the NPT hubs and tied to the fixture`s lead wires to complete the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture.  Suggested Applications: The HALP-24-3L-LED is designed for marine wet and damp locations, where corrosion resistant lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Superior LED Benefits
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface and provide secure mounting and corrosion resistance. 3. Fixture constructed of corrosion resistant materials including high impact acrylics and stainless steel. 4. Re-lamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps. 5. Weatherproof housing and poured in gasket protects from moisture intrusion.. 6. 1/2" or 3/4", threaded access hole for wiring conduit. 7. Units can be wired end to end in series. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
