Class I, Div. II Fluorescent Fixture - Corrosion Resistant (Saltwater) - 220Volts, 50/60Hz

LARSON ELECTRONICSSKU: PL3-HALP-48-2L-220V
filler

Price:
Sale price$802.00

Description

Specifications / Additional Information
HALP-48-2L 220V Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class I Division 2, Groups A, B, C, D
Dimensions: W-8.25 "   L-52 "   H-7"  Class II, Division 2, Groups F, G
Weight: 8 Lbs  UL 844
Total Watts: 108 watts UL 1598A Marine Type (Salt water)
Voltage: 220V, 50/60Hz California Title 24 Compliant
Total Lumens: STD-T5-HO Bulbs 10,000 Meets US Coast Guard specifications
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs  92 Lumens per Watt
Operating Temp Range: T4C Rated -30 C to 70 C
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Beam Angle: N/A
Color Temp: 4100K- Toll Free: 1-800-369-6671
Mounting: Flange type stainless steel Intl: 1-214-616-6180
Wiring Hub: 1/2" or 3/4" threaded Fax: 1-903-498-3364
U.L Approval:    E-mail:
*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

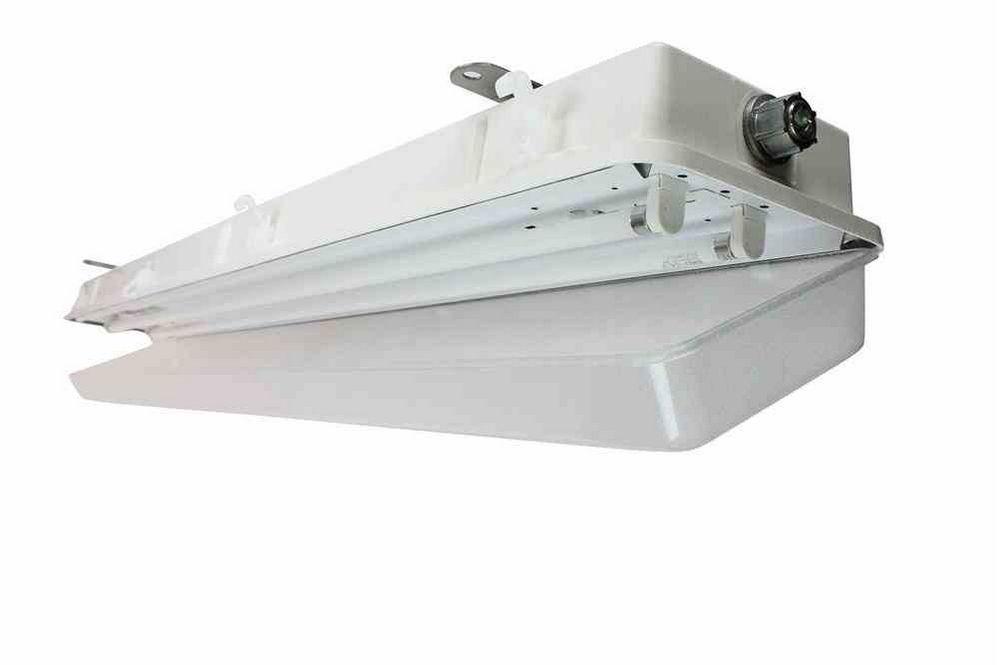

Made in the USA The Larson Electronics HALP-48-2L 220V, 50/60Hz Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C Temperature Rating, and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-48-2L 220V hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture runs off of 220V, 50/60Hz electrical current and is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-2L also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
 Click Photo to Enlarge
NOTE ON LAMPS: This fixture comes equipped with F54-T5/841/HO €“ 54 Watt lamps producing 5,000 lumens per bulb, a 4100 Kelvin color and a 20,000 hour rated service life. We offer F48-T12/HO €“ 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color and F32-T8/841 €“ 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HALP-48-2L 220V has an electronic ballast and works with 220V, 50/60Hz . Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light. Suggested Applications: The HALP-48-2L 220V is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. 3. Fixture housing constructed of glass fiber reinforced polyester. 4. Relamping done via 6 plastic snap locking latches, which enable the operator to remove the door and access the lamps. 5. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection. 6. 1/2" or 3/4", threaded access hole for wiring conduit. F54-T5/841/HO €“ 54 Watt, 5000 lumens per bulb, 20,000 hours life, 4100 Kelvin color F48-T12/HO €“ 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color F32-T8/841 €“ 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color
