Class 1 Division 2 Hazardous Location LED Light w/ Stainless Steel Pole Mount - Corrosion Resistant

LARSON ELECTRONICSSKU: PL3-HALP-48-2L-LED-SSPM
filler

Price:
Sale price$3,359.99

Description

Specifications / Additional Information
HALP-48-2L-LED-SSPM Hazardous Area LED Offshore Light Ratings
Listing: United States - Canada Class I Division 2, Groups A, B, C, D
Dimensions: W-8.25" x L-52" x H-7" Class II, Division 2, Groups F, G
Weight:8 Lbs UL 844
Total Watts: 56 watts UL 1598A Marine Type (Salt water)
Total Lumens: 6,720 California Title 24 Compliant
Voltage: Universal 120-277VAC 50/60 Hz or 12-24V AC/DC T4A Temperature Rated
Lamp Life Expectancy: 50,000 Hours Stainless Steel Pole Mount
Luminous Efficiency: 120 Lumens per Watt
Temp Range: -30°C to +85°C
Beam Angle: 150°
Color Temp: 5600K or 4500K
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C Toll Free: 1-800-369-6671
Mounting: 2-Piece Stainless Steel Bar Clamp Pole Mount Intl: 1-214-616-6180
Wiring Hub: 1/2" or 3/4" threaded Fax: 1-903-498-3364
U.L Approval:   E-mail:
' Product Overview '

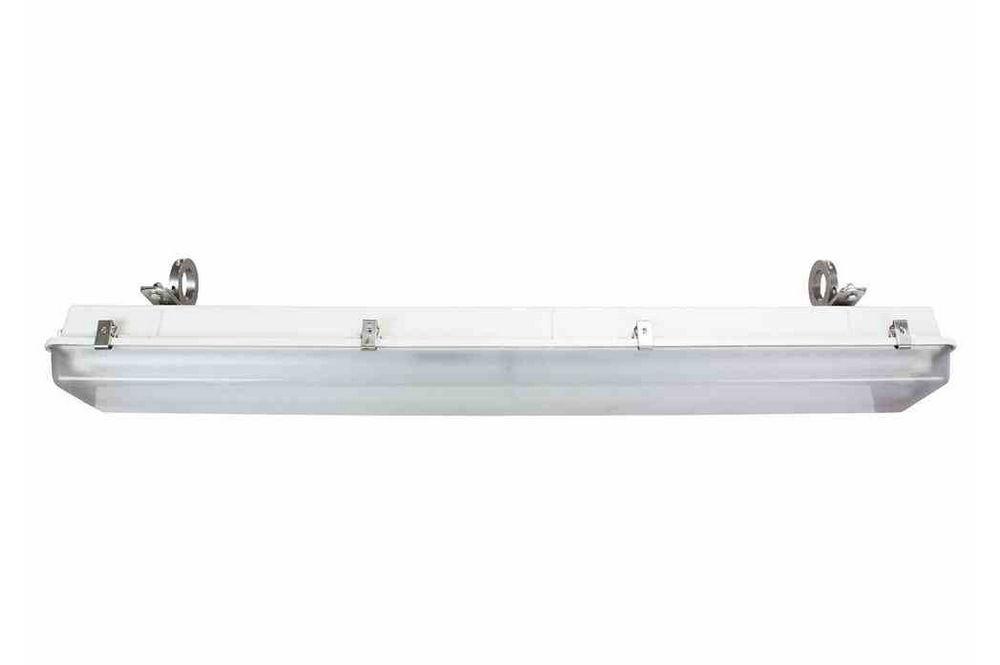

Made in the USA The Larson Electronics HALP-48-2L-LED-SSPM Stainless Steel Pole Mount Hazardous Area LED Light Fixture is U.S./Canada approved Class 1 Division 2 Groups A, B, C and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This hazardous location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. This four foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-48-2L-LED-SSPM stainless steel pole mount hazardous area LED light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. Two stainless steel bar clamp mounting brackets allow operators to secure the light fixture to existing light poles. We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance. This two lamp HAZLOC LED linear fixture is lighter in weight and produces more light than hazardous location fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs. The HALP-48-2L-LED-SSPM is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. This fixture also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight and creates a slimmer unit profile. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3360 lumens at 120 lumens per watt, for a combined 6720 total lumen light output. A HAL-48-2L-T8 hazardous location fluorescent light, with a combined total of 64 watts, draws 0.54 amps at 120 volts AC. This LED version of the same light, with a total of 56 watts, draws only 0.47 amps at 120 volts AC. The HAL-48-2L-LED-G2 is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. We also make a 12/24V AC/DC version for low voltage applications for AC or DC power.
Energy Consumption Comparison
T5HO T8 LED
Wattage 108 watts 64 watts 56 watts
Amp Draw @ 120V AC 0.90 amps 0.54 amps 0.47 amps
Amp Draw @ 220V AC 0.49 amps 0.29 amps 0.25 amps
Amp Draw @ 240V AC 0.45 amps 0.27 amps 0.23 amps
Amp Draw @ 277V AC 0.39 amps 0.24 amps 0.20 amps
Amp Draw @ 12V DC 9 amps 5.34 amps 4.67 amps
Amp Draw @ 24V DC 4.5 amps 2.67 amps 2.34 amps
Lamp Life Expectancy 20,000 hours 24,000 hours 50,000 hours
Color Temperature 5000K / 4100K 4100K 5600K
Operation cost per year (12hs/day @ 12c/kWh) $56.77 $33.64 $29.43
Click Photo to Enlarge
Mounting: This pole mount fixture is equipped with two stainless steel bar clamps to allow operators to secure the light fixture to existing poles. This two-piece clamp provides easy installation, and the fixture is equipped with either a 1/2" or 3/4" NPT wiring hub. All mounting hardware is stainless steel or non-metallic for corrosion resistance. We offer this pole mount system to be installed on standard 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", and 3" pole sizes. Please choose your pole size below and our mounting system will fit over the OD of your pole size. If you do not see your pole OD below, please contace us. Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations. Suggested Applications: The HALP-48-2L-LED-SSPM is designed for marine, wet, damp locations where corrosion resistant fluorescent lights are required or are already present. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Superior LED Benefits
1. Each unit dialectrically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. 3. Fixture housing constructed of glass fiber reinforced polyester. 4. No ballast box. No ballast to replace. We simply run the black wire to one end of the bulb and white wire to the other. 5. Re-lamping done via 6 stainless steel snap locking latches which enables the operator to remove the door and access the lamps. 6. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection. 7. 1/2" or 3/4", threaded access hole for wiring conduit.       1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
