|HALP-48-2L-NSIL - Hazardous Area Fluorescent Light||Ratings/Approvals|
|Lamp Type: 4` Fluorescent||Class I Division 2, Groups A, B, C, D|
|Surface Dimensions: 49.975"-L x 7.975"-W x 5.1"-H||Class II, Division 2, Groups F, G|
|Pendant Dimensions: 49.731"-L x 7.205"-W x 5.425"-H||UL 844|
|Weight: 8 Lbs||UL 1598A Marine Type (Salt water)|
|Voltage: Universal 120-277V AC 50/60Hz||California Title 24 Compliant|
|Total Watts: 108W (T5HO), 64W (T8) or 120W (T12HO||Listed for Canada|
|Total Lumens: 10,000 (T5HO), 5900 (T8), or 8100 (T12HO)||T4 Temperature Rating|
|Lamp Life (Hours): 20,000 (T5HO), 24,000 (T8), 12,000 (T12HO)||Non-Corrosive Construction|
|Efficiency (Lumens per Watt): 92 (T5HO), 92 (T8), 67.5 (T12HO)||Meets US Coast Guard specifications|
|Color Temp: 5000K (T5HO) or 4100K (T5HO, T8, T12HO)||Â|
|Beam Angle: 160Â° Horizontal, 116.5Â° Vertical||Â|
|Mounting: Flange Type Surface Bracket or Pendant Hub|
|Wiring Hub: 1/2" or 3/4" NPT|
|Materials: Polyester/Fiberglass Housing, Acrylic Lens, Neoprene Gasket||Toll Free:Â 1-800-369-6671|
|Ambient Temp Range: -20Â°C to +70Â°C||Intl:Â 1-214-616-6180|
|Minimum Operating Temp: -30 C||Fax:Â 1-903-498-3364|
|Maximum Case Temp: 90 C||E-mail:Â|
|*Wattage totals are lamps only and may vary with different lamps.|

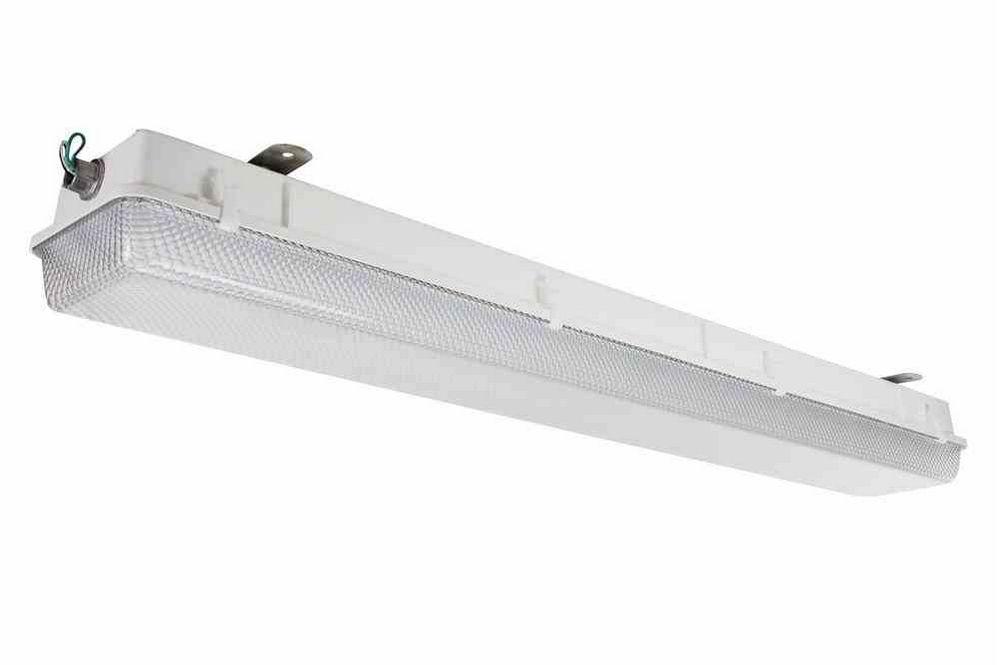

|Made in the USA The Larson Electronics HALP-48-2L-NSIL Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-48-2L-NSIL hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in neoprene gasket (non-silicone) for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. Optional stainless steel latches available upon request. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-48-2L-NSIL also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.|
NOTE ON LAMPS: This fixture comes equipped with two T5HO, T8, or T12HO fluorescent lamps. The F54-T5/850/HO 54 Watt lamps produce 5,000 lumens per bulb for 20,000 lumens per fixture, a 5000 or 4100 Kelvin color and a 20,000 hour rated service life. The F32-T8/841 32 watt lamps produce 2950 lumens per bulb for 5900 lumens per fixture, a 4100 Kelvin color and a 24,000 hour rated service life. The F48-T12/HO 60 watt lamps produce 4050 lumens per bulb for 8100 lumens per fixture, and a 12,000 hour rated service life. The HALP-48-2L-NSIL has an electronic universal voltage ballast and operates on a range of voltages from 120V to 277V AC 50/60Hz including: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ.
Flanged Surface Mount Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 38.25â€ on center apart along the top of this hazardous location light. The mounting holes are 3.9â€ and 7.2â€ on center across the top of the light.
Suspension/Pendant Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4â€ NPT hubs, one on each end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to one of the NPT hubs and tied in to the fixtureâ€™s lead wires, completing the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture.
Suggested Applications: The HALP-48-2L-NSIL is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
