3 Lamp Class 1 Division 2 Fluorescent Light - Two Input and 2 Output Hubs

LARSON ELECTRONICSSKU: PL3-HALP-48-3L-2XH
filler

Price:
Sale price$868.99

Description

Specifications / Additional Information
HALP-48-3L-2XH Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class I Division 2, Groups A, B, C, D
Dimensions: W-8.25 " L-52 " H-7" Class II, Division 2, Groups F, G
Weight: 8 Lbs UL 844
Total Watts: 162 watts* UL 1598A Marine Type (Salt water)
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz California Title 24 Compliant
Total Lumens: STD-T5-HO Bulbs 15,000
Lamp Life Expectancy: STD-T5-HO Bulbs 20,000 Hours
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt
Operating Temp Range: T4A Rated -30 C to 70 C
Beam Angle: N/A
Color Temp: 5000K- T5-HO Bulbs
Mounting: Flange type stainless steel
Wiring Hub: (2) 1/2" or 3/4" threaded hubs per end Toll Free: 1-800-369-6671
Minimum Operating Temp: -30 C Intl: 1-214-616-6180
Maximum Case Temp: 90 C Fax: 1-903-498-3364
U.L Approval:    E-mail:
Meets US Coast Guard specifications.
*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

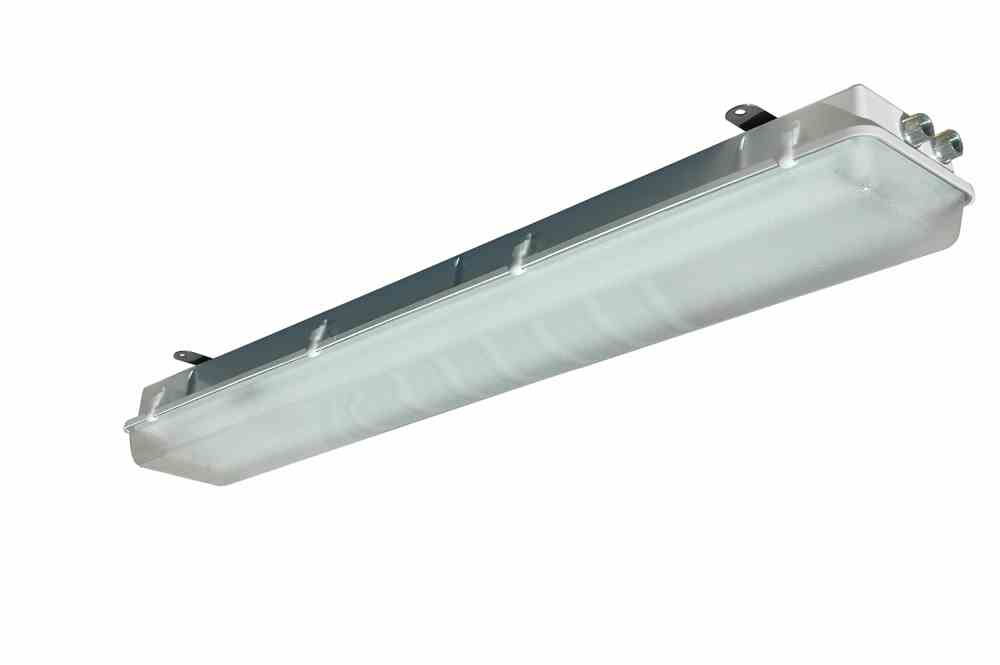

Made in the USA The Larson Electronics HALP-48-3L-2XH Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D, Class 2 Divisions 1 & 2 Groups E, F, and G, and UL 1598A listed. This fixture has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-48-3L-2XH hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 and Class 2 Divisions 1 and 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D and Class 2 Divisions I and II, Groups E, F, and G approved. The HALP-48-3L-2XH also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
Click Photo to Enlarge
NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and a 20,000 hour rated service life. We offer F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color tubes as lamp options for this fixture. The HALP-48-2L has an electronic multi-voltage ballast and works with 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ. Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light. Suggested Applications: The HALP-48-3L-2XH is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. 3. Fixture housing constructed of glass fiber reinforced polyester. 4. Relamping done via 8 plastic snap locking latches, which enable the operator to remove the door and access the lamps. 5. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection. 6. (2)1/2" or 3/4", threaded access holes per side for wiring conduit. F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color
