HALP-EMG-24-2L-ITG-LED Hazardous Area Integrated LED Light Fixture
Ratings/Approvals
UL Listing:Â United States - Canada
Class I Division 2, Groups A, B, C and D
Dimensions: L- 25.88" x W - 7.21" x H - 5.43"
Class II, Division 2, Groups F, G
Weight: 25 Lbs
UL 844Â
Voltage: Universal 120-277VAC 50/60 Hz
UL 1598A Marine Type
Total Watts: 40 watts
California Title 24 Compliant
Total Lumens: 4,000
cUL Listed for Canada
LED Lamp Life Expectancy: 50,000+ Hours
Meets USCG Specs
Luminous Efficiency: 100 Lumens per Watt
T4 Temperature Rating
Color Temp: 5000K
Remote Mount Emergency Battery Backup
Emergency Runtime: 90 Minutes
90 Minute Runtime
Emergency Lumens: 2,000
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range:-30°C to +85°C
Operating Temp Rating: T4 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Wiring Hub: 1/2" or 3/4" inch threaded NPT hubs
Housing Material: Fiberglass Reinforced Polyester
Lens Material: Acrylic
Toll Free:Â 1-800-369-6671
Surface Mounting (2) aluminum flange brackets
Intl:Â 1-214-616-6180
Pendant Mounting: (2) 1/2" or 3/4" hubs, (1) per end of fixture
Fax:Â 1-903-498-3364
U.L Approval:Â Â
E-mail:Â
'
Product Overview
'
Made in the USA

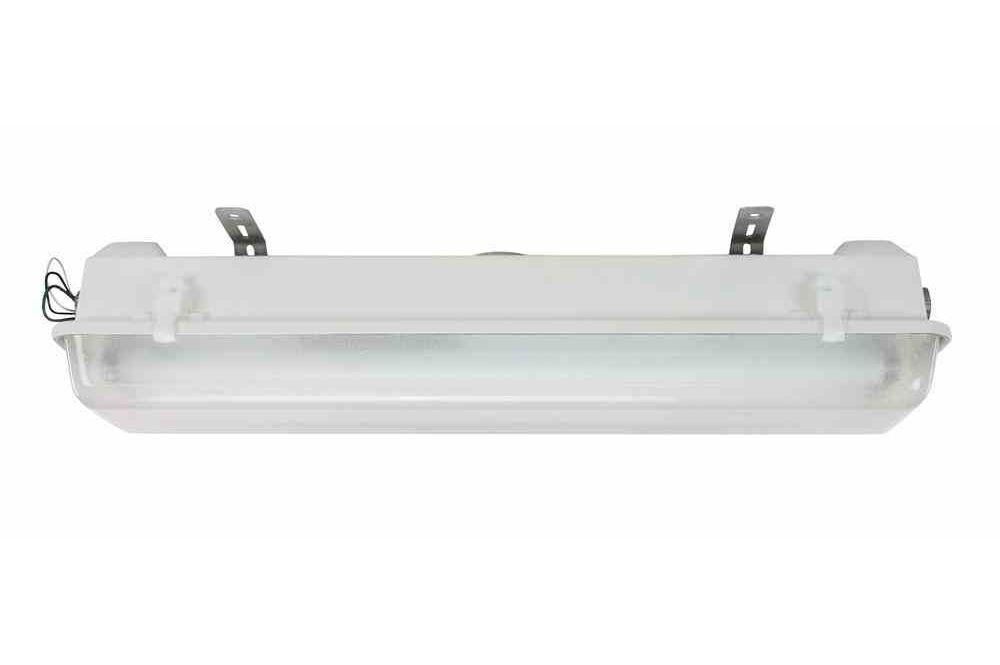

The Larson Electronics HALP-EMG-24-2L-ITG-LED Hazardous Area Emergency Integrated Dimmable LED Light Fixture is U.S./Canada UL Listed Class I Division 2 Groups A, B, C and D, UL 1598A listed, and is specifically designed to handle the rigors of wet and corrosive marine environments. This hazardous location LED light has a T4 temperature rating and carries a United States Coast Guard approval, making it ideal for applications such as oil rigs, ships, offshore applications, petrochemical, manufacturing, chemical storage, and water treatment centers. The HALP-EMG-24-2L-ITG-LED is a 40 watt integrated LED light that produces 4000 lumens of light. This integrated dimmable LED light fixture is dimmable and operates on voltages ranging from 120-277V AC. This unit features a remote mount battery backup for emergency operation.
This two foot long, two lamp LED fixture is ideal for operators seeking a top quality hazardous location light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The HALP-EMG-24-2L-ITG-LED hazardous area LED light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class I Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Four corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. A remote mounted battery backup unit that adds emergency light functionality to the fixture. This emergency LED light will run at the standard UL suggested 90 minutes after power is lost at 2,000 lumens. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is automatically recharged and kept in a ready state.
We now offer our first generation integrated LED tube assembly within this fixture which have increased this hazardous location light`s performance. This two lamp explosion proof LED linear fixture is lighter in weight and produces more light than traditional explosion proof fluorescent fixtures. The two foot long LED solid state board design included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T5HO bulbs. These lamps are individually dimmable for maximum control over illumination levels.
The HALP-EMG-24-2L-ITG-LED is UL 844 rated and Class I Division II, Groups A, B, C, D approved. This fixture also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This lamp offers the extreme durability, high efficiency and long lamp life of high power LEDs in a proven hazardous location fixture design, making it a reliable and affordable lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
Â
Click Photo to Enlarge
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
Surface Mounting: Flange type aluminum mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 14.91" inches on center apart along the top of this hazardous location light. The mounting holes are 9.5" inches on center across the top of the light.
Pendant Mounting: This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4" NPT hubs on either side of the fixture. Operators will bring rigid pipe down to the threaded mounting ups. The wiring is fed down through the rigid pipe to one of the NPT hubs and tied to the fixture`s lead wires to complete the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture.
Suggested Applications: The HALP-EMG-24-2L-ITG-LED is designed for marine wet and damp locations, where corrosion resistant lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality
Superior LED Benefits
1. Each unit dialectically tested.
2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface and provide secure mounting and corrosion resistance.
3. Fixture constructed of corrosion resistant materials including high impact acrylics and stainless steel.
4. Re-lamping done via 4 turn latches, which enable the operator to unlatch the hinged door and access the lamps.
5. Weatherproof housing and poured in gasket protects from moisture intrusion..
6. 1/2" or 3/4", threaded access hole for wiring conduit. 7. Units can be wired end to end in series.
Â
Â
Â
1. 50,000 hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LEED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off - No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
