Class I Division 2 Emergency LED Light - 2' 2 Lamp

LARSON ELECTRONICSSKU: PL3-HALP-EMG-24-2L-LED
filler

Price:
Sale price$2,265.99

Description

Specifications / Additional Information
HALP-EMG-24-2L-LED Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class I Division 2, Groups A, B, C, D
Dimensions: 8.25"W x 52"L x 7"H Class II, Division 2, Groups F, G
Weight: 12.5 lb UL 1598A Marine Type (Salt water)
Total Watts: 28 Watts UL 924 - Failsafe backup battery
Voltage: 120-277VAC 50/60 Hz cUL Listed for Canada
Total Lumens: 3,500 Meets USCG Specs
Lamp Life Expectancy: 50,000 Hours T4 Temperature Rating
Efficiency: 125 Lm/W UL 844
Operating Temp Range: T4C Rated -20°C to +65°C
Battery Backup: 90 Minute Runtime @ 900 Lumens
Color Temp: 5600 K
Surface Mounting: (2) Flange type aluminum brackets
Pendant Mounting: (2) 1/2" or 3/4" thick threaded NPT hubs on either side Intl: 1-214-616-6180
Wiring Hub: (2) 1/2" or 3/4" threaded hubs on each side Fax: 1-903-498-3364
U.L Approval: E-mail:
Meets US Coast Guard specifications.
' Product Overview '

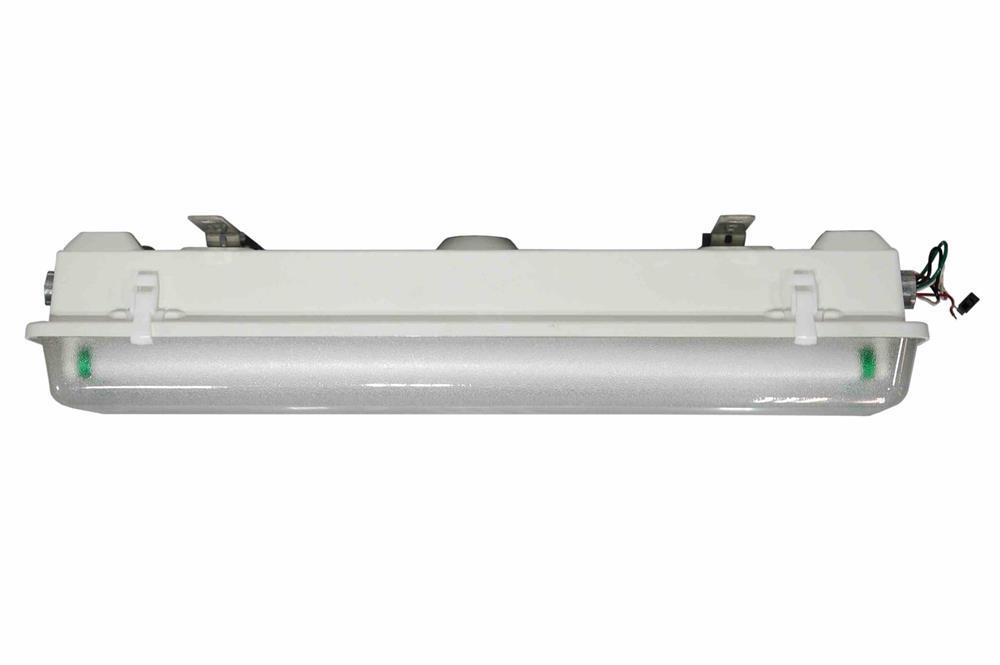

Made in the USA The HALP-EMG-24-2L-LED from Larson Electronics is a Hazardous Area Fluorescent Light Fixture that is U.S./Canada UL Listed Class I Division 2 Groups A, B, C and D - UL 1598A listed, has a T4C temperature rating, and is specifically designed to handle the rigors of wet and corrosive marine environments. This fixture is equipped with an added battery backup providing 90 minutes of emergency runtime. The HALP-EMG-24-2L-LED hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 rated and Class I Division 2, Groups A, B, C, D approved. The HALP-EMG-24-2L-LED also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications. This LED light works, mounts and is wired like our HALP-24-2L-LED hazardous location LED light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at full power for 90 minutes.
Surface Mount (Standard)
Surface Mounting: Flange type aluminum mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 14.91" inches on center apart along the top of this hazardous location light. The mounting holes are 9.5" inches on center across the top of the light.
Pendant Mount (Optional)
Pendant Mounting: This light fixture can hang from the ceiling suspected by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4" NPT hubs on either side of the fixture. Operators will bring rigid pipe down to the threaded mounting ups. The wiring is fed down through the rigid pipe to one of the NPT hubs and tied to the fixture`s lead wires to complete the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture. Suggested Applications: The HALP-EMG-24-2L-LED is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
