|HALP-EMG-48-2L-LED-1137 Hazardous Area Failsafe Light||Ratings/Approvals|
|Lamp Type: T8 Style LED Tubes||Class I Division 2, Groups A, B, C, D|
|Dimensions (Surface): 49.975"-L x 7.975"-W x 5.1"-H||Class II, Division 2, Groups F, G|
|Dimensions (Pendant): 49.731"-L x 7.2.05"-W x 5.425"-H||UL 844|
|Weight: 8 Lbs||UL 1598A Marine Type (Salt water)|
|Voltage: 120-277V AC 50/60 Hz||Failsafe Operation w/ Battery Backup|
|Total Watts: 56 watts||Non-Corrosive Non-Metallic Housing|
|Efficiency 125 Lumens per Watt||Meets US Coast Guard specifications.|
|Total Lumens 7,000||Switch Leg for Powering Light On/Off|
|Lumens on Battery 3,500||Listed for use in Canada|
|Color Temp: 5600K||Emergency Only|
|Color Rendering Index (CRI): 80|
|Beam Angle: 160Â° Horizontal - 120Â° Vertical|
|Lamp Life Expectancy: 50,000+ Hours|
|Housing Material: Polyester infused Fiberglass Housing|
|Lens Material: Acrylic Lens w/ Plastic Latch Clips|
|Battery Backup Runtime: 90 minute|
|Battery: High-Temperature, Maintenance Free Nickel-Cadmium||Toll Free:Â 1-800-369-6671|
|Mounting: Flange type Surface Mount - Pendant Mount||Intl:Â 1-214-616-6180|
|Wiring Hub: 1/2" or 3/4" threaded NPT||Fax:Â 1-903-498-3364|
|Operating Temp Range: T4 Rated -30Â°C to +50Â°C|
Made in the USA

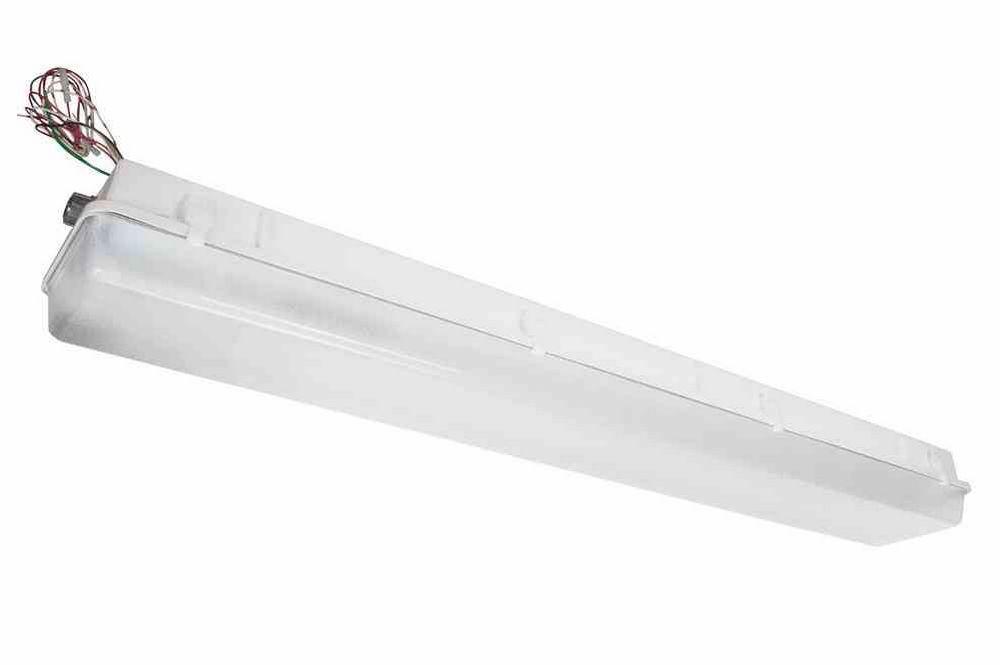

The HALP-EMG-48-2L-LED-113 Hazardous Area LED Light Fixture is U.S./Canada approved Class 1 Division 2 Groups A, B, C and D, UL 1598A listed, has a T4C temperature rating, and is specifically designed to handle the rigors of wet and corrosive marine environments. This fixture is equipped with an added battery backup providing 90 minutes of emergency runtime.
The HALP-EMG-48-2L-LED-1137 hazardous area fluorescent light fixture is designed for use in wet areas and saltwater/marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fixture is UL 844 and UL 924 rated and Class 1 Division II, Groups A, B, C, D approved. The HALP-EMG-48-2L-LED-1137 also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
This emergency LED light works, mounts and is wired like our HALP-48-2L-LED-G2 explosion proof LED light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will illuminate only when there is a loss of power, and will run the standard UL suggested 90 minutes after power is lost. This hazardous area emergency light will run one bulb at 20 watts the standard UL suggested 90 minutes after power is lost at 3500 lumens. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is automatically recharged and kept in a ready state. Alternatively, we can configure this unit to be an emergnecy only fixture, where the light will only operate when power is lost. Please choose EMG only below for emergency only operation. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
We have eliminated the ballast normally associated with fluorescent fixtures which reduces overall weight, increases lamp life to an extreme 50,000 hours and helps this LED fixture maintain a T4 temperature rating. The solid state design of the included LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 28 watt LED lamps produce more illumination than standard T8 bulbs, but draw only 3/4 of the current. The current generation of our LED T-series style bulbs produce 30% more light than standard T8 bulbs.
This fixture is universal voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. Our HAL-EMG-48-2L-LED-G2 light fixture is both U.S. and Canada approved.
Standard Flange Mount Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light.
A sliding bracket mount is available so operators can retrofit this LED light fixture to use the pre-existing mounting holes from other fluorescent fixtures. Contact us for the sliding bracket option.
Suggested Applications: The HALP-EMG-48-2L-G2 is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
