Class 1 Division 2 Emergency/Failsafe Fluorescent Light - Three T5HO Lamps - 2X Inputs and Outputs

LARSON ELECTRONICSSKU: PL3-HALP-EMG-48-3L-2XH-T5HO
filler

Price:
Sale price$2,819.99

Description

Specifications / Additional Information
HALP-EMG-48-3L-2XH-T5HO Hazardous Area U.L. Ratings
UL Listing: United States - Canada Class I Division 2, Groups A, B, C, D
Lamp Type: LED Class II, Division 2, Groups F, G
Dimensions: W-8.25 " L-52 " H-7" UL 844
Weight: 8 Lbs UL 924 - Failsafe battery backup
Voltage:120-277VAC UL 1598A Marine Type (Salt water)
Low Voltage Optional: 9-32VDC Meets USCG Specs
Total Watts: 162 watts T4 Temperature Rated
Total Lumens STD-T5-HO Bulbs: 15,000 Switch Leg for Powering Light On/Off
Luminous Efficacy STD-T5-HO Bulbs: 92 Lm/W UL Listed for Canada
Lamp Life Expectancy STD-T5-HO Bulbs: 20,000 Hours Meets US Coast Guard specifications
Color Temp: 5600K- CRI-75
Efficiency: 98 Lumens per Watt
Ambient Operating Temp Range: -30° C to +70° C
Operating Temp Range: T4C Rated
Battery Backup: 90 Minute Runtime Toll Free: 1-800-369-6671
Mounting: (2) Flange Type Aluminum Brackets Intl: 1-214-616-6180
Wiring Hub:(2) 1/2" or 3/4" Threaded Hubs Per End Fax: 1-903-498-3364
U.L Approval:   E-mail:
' Product Overview '

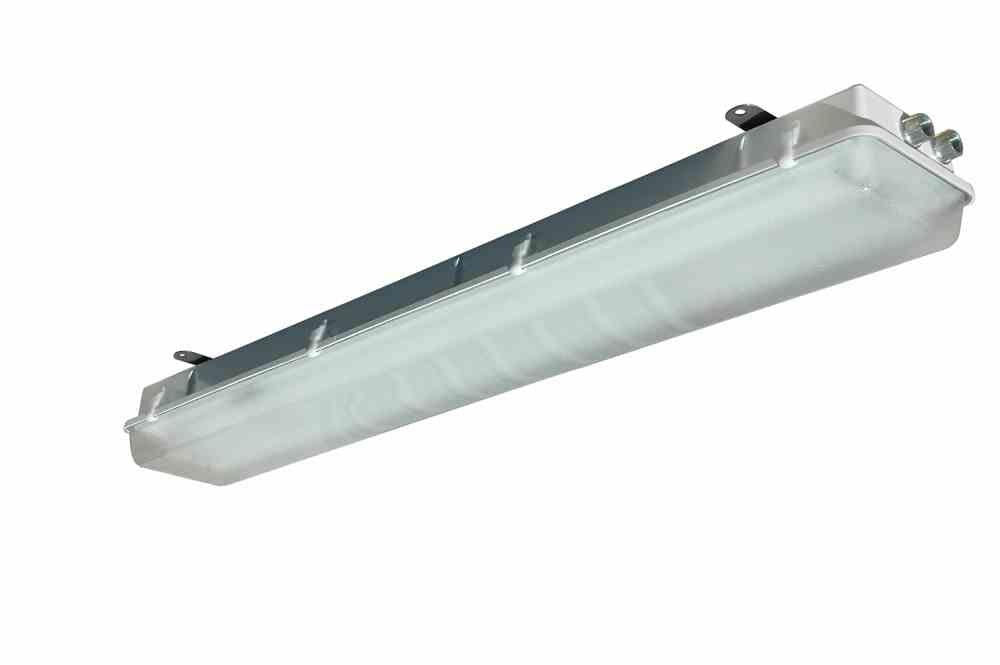

Made in the USA The Larson Electronics HALP-EMG-48-3L-2XH-T5HO Hazardous Area Fluorescent Light Fixture is U.S./Canada UL Listed Class 1 Division 2 Groups A, B, C and D, Class 2 Divisions 1 & 2 Groups E, F, and G, and UL 1598A listed, has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The HALP-EMG-48-3L-2XH-T5HO hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 and Class 2 Divisions 1 and 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. This fluorescent light works, mounts and is wired like our HALP-48-3L-2XH-T5HO explosion proof fluorescent light fixtures. The main difference is that we add a battery backup unit that adds emergency light functionality to the fixture. This hazardous area emergency light will run the standard UL suggested 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 900 lumens for 90 minutes. The battery backup unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode. This fixture is UL 844 rated and Class 1 Division II, Groups A, B, C, D and Class 2 Divisions I and II, Groups E, F, and G approved. The HALP-EMG-48-3L-T5HO-2XH also carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
Click Photo to Enlarge
NOTE ON LAMPS: This fixture comes equipped with F54-T5/850/HO – 54 Watt lamps producing 5,000 lumens per bulb, a 5000 Kelvin color and a 20,000 hour rated service life. Standard Flange Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 36 9/16 inches on center apart along the top of this hazardous location light. The mounting holes are 7 inches on center across the top of the light. Suggested Applications: The HALP-EMG-48-3L-2XH-T5HO is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Lamp Options
1. Each unit dialectically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. 3. Fixture housing constructed of glass fiber reinforced polyester. 4. Relamping done via 8 plastic snap locking latches, which enable the operator to remove the door and access the lamps. 5. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection. 6. (2) 1/2" or 3/4", threaded access holes per end for wiring conduit. F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color
