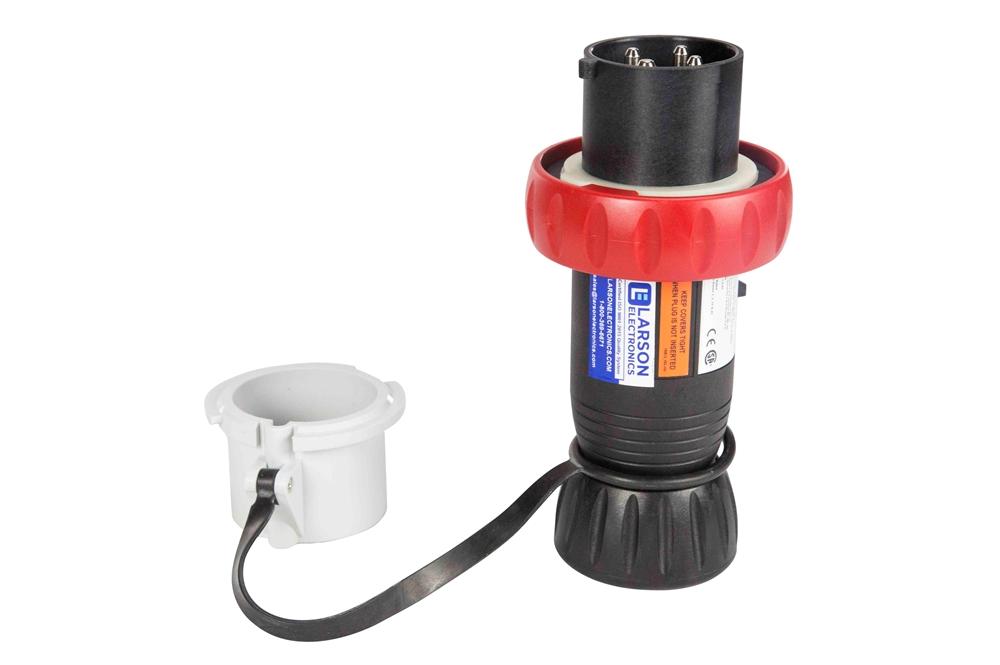

30A Hazardous Location Pin and Sleeve Plug - 480Y/277V AC - 4 Pole, 5 Wire - ATEX Rated

LARSON ELECTRONICSSKU: PL3-HLP-EX-30A-4P5W-480Y.277
filler

Price:
Sale price$1,483.99

Description

Specifications / Additional Information
HLP-EX-30A-4P5W-480Y.277 Hazardous Location Plug Ratings
Listing: United States, Canada, EU, International Class I, Division 2 Groups A,B,C,D
Dimensions: - Class I, Zones 1&2 Ex de IIC T
Weight: - Class II, Divisions 1&2 Groups E,F,G
Voltage: 480Y/277V AC, 3PH Class III
Amp Rating: 30A NEMA 3,4,4X
Configuration: 4-Pole 5-Wire IP66 Waterproof
Compatibility: HLO-EX-30A-4P5W-480Y.277 ATEX Rated
Materials: Polyamide PTB 04 ATEX 1060
Terminal Capacity: 2 Wire, 14 to 8 AWG


' Product Overview '
The Larson Electronics HLP-EX-30A-4P5W-480Y.277 Hazardous Location Pin and Sleeve Plug is an ATEX-rated cord cap approved for use in hazardous environments where flammable or explosive gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 4-pole, 5-wire plug is designed to provide a secure connection for electrical equipment within the hazardous location. This hazardous location 4-pole 5-wire pin and sleeve plug is compatible with our HLO-EX-30A-4P5W-480Y.277 hazardous location power receptacles. This plug is rated for 30 amps and is suitable for ATEX/IECEx rated flammable sites. With NEMA Type 3, 4, 4x and IP66 ratings, the unit is recommended for outdoor, marine and wet locations. The HLP-EX-30A-4P5W-480Y.277 features polyamide construction, a 30-amp current rating, and is operates on 480Y/277V AC. This plug is coded red to indicate its voltage rating and ground pin position. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations.
