|HLSW-AE.EX-FG-PB-16A-MS-GRN-C11-N-W1-G1 Flameproof Push Button||Ratings|
|Listing: NRTL Listed for ATEX/IECEx Locations||Approved for Zone 1 and 2|
|Unit Type: Explosion Proof Single Push Button||Approved for Zone 21 and 22|
|Dimensions: 3.74" x 3.38" x 2.99" (95mm x 86mm x 76mm)||ATEX EX II 2 GD|
|Weight: 0.82 lbs||IEC Ex d e IIC T6 Gd IP66|
|Rated Voltage: 100-250V AC, 10-110V DC||IEC Ex tb IIC T80°C Db|
|Rated Frequency: 50/60Hz||Temp Rating -40„ƒ‰Ta‰50„ƒ|
|Amperage Rating: 16A (100-250V AC), 1A (10-110V DC)||NRTL Certified to IEC 60079|
|Mechanical Life: 100,000+ Operations||NRTL Certified to EN 60079|
|Push Button Type: Momentary||CE Certified|
|Push Button Color: Green||Conforms to CE 0575|
|Contact Configuration: (4) Normally Open||IP66 Weatherproof|
|Operating Temp: -40°C to +50°C|
|Materials: Static Resistant Plastic Alloy (Housing), Silver (Contacts)|
|Terminals: 2.5mm (Component), 4mm (PE)|
|Cable Entry: (1) M20 x 1.5 - Molded Plastic, Bottom Entry|
|Maximum Cable OD: 5.5mm-13mm|
|PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards.|

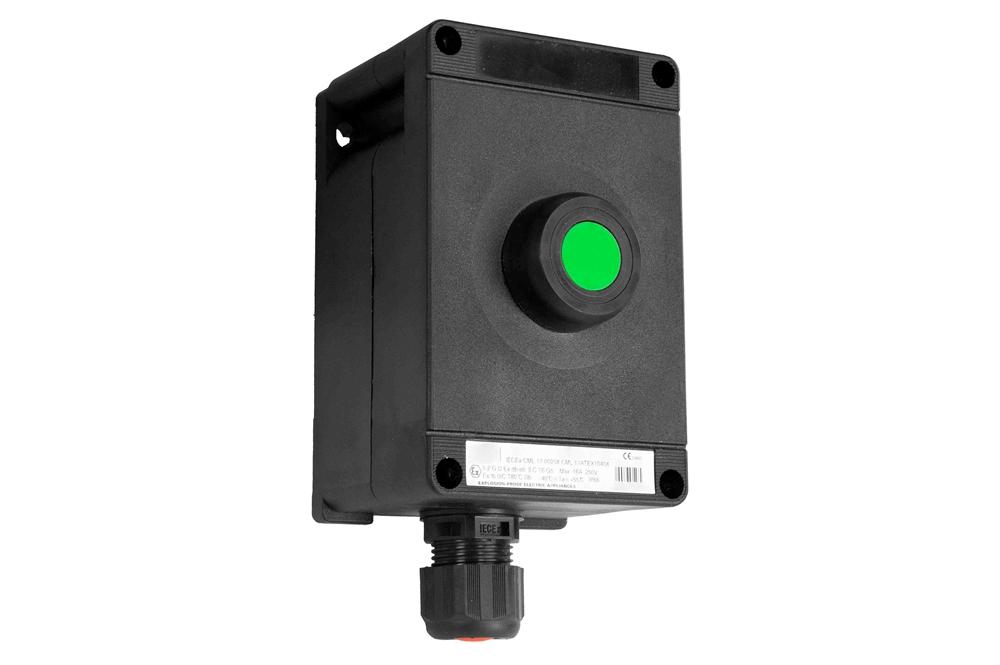

|The Larson Electronics HLSW-AE.EX-FG-PB-16A-MS-GRN-C11-N-W1-G1 Explosion Proof Green Push Button is a compact solution for controlling industrial machinery or equipment in flammable environments. This device is compatible with 100-250V AC/10-110V DC and contains (4) N/O contacts. The IP66-rated single push button is protected by a static resistant plastic alloy housing. PLEASE NOTE: The HLSW-AE.EX series of explosion proof switches, operators, buttons, lights, and dials are certified to European Union (ATEX) and International (IEC Ex) standards and are approved for installing in these locations. This unit IS NOT certified to United States (NEC) or Canadian (CEC) standards for hazardous location. This unit DOES NOT carry UL or CSA ratings. Please contact Larson Electronics for NEC/CEC equvilant version of this product if you intend to install the product in United States, Canada, or any country that followed NEC or CEC electrical standards. The HLSW-AE.EX-FG-PB-16A-MS-GRN-C11-N-W1-G1 is designed for use in Zones 1/2 and Zones 21/22 rated combustible locations. This unit is rated for 100-250V AC at 16 amps and 10-110V DC at 1 amp. Featuring more than 100,000 operating cycles, the flameproof Green push button operates with momentary action (maintained action is available at an additional cost). The device may also be offered with standard lockout/tag out and maintained lockout features. This push button can be added to custom control station builds that contain pilot lights, other push buttons, emergency stop, selector switches, sensors and more. This explosion proof push button is constructed of static resistant plastic alloy with silver contacts. The IP66-rated device is suitable for ATEX/IECEx rated work sites with operating temperatures ranging between -40°C and +50°C. There are no labels or marking on this push button. We offer both custom labels (upon request) and the following selection of markings at an additional cost: On, Off, Start, Stop, I, O, Forward, Reverse and directional arrows. The weatherproof unit contains (4) Normally Open (1) normally open and (1) normally closed contacts. We offer a variety of contact configurations, such as: (2) normally open, (2) normally closed, (2) normally open and (2) normally closed, (4) normally open, (4) normally closed, (3) normally open and (1) normally closed, as well as (1) normally open and (3) normally closed. Wiring: This non-illuminated device is equipped with 2.5mm terminals for component connections and 4mm terminals for PE connections. Cable entry is facilitated by one M20 x 1.5 molded plastic hub located at the bottom of the unit. To cater to other system or project requirements, we can offer this push button in M20 or M25, as well as in nickel-plated brass or stainless. Maximum outer cable diameter range for the hub is 5.5mm to 13mm. Mounting: The HLSW-AE.EX-FG-PB-16A-MS-GRN-C11-N-W1-G1 is compatible with surface mounting and pendant mounting applications. We offer a variety of stands for elevated mounting. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural operations, grain storage centers, industrial equipment and more.|
