100W Sealed Beam HIR Spotlight - Adjustable Locking Base w/ Handle - 12 Mil Candlepower - 750' Beam


Sale price$293.99


Specifications / Additional Information
HML-4-ALB Pivoting Sealed Beam Spotlight Features
Lamp Type: Halogen Infrared Reflective (HIR) Sealed Beam Beam Reaches up to 750`
Dimensions: 5.8"D x 5"W x 11.3"H, Lens Diameter: 6" 450 Hour Lamp Life
Weight: 2 lbs Bulb Coating Increases Light Output
Voltage: 12V DC UV & Saltwater Resistant Housing
Watts: 100W Adjustable for Rotation and Elevation
Lux: 2,750 @ 25` Covenient Adjustable Pivoting Base
Candlepower: 12 Million Multiple Cord Choice Options
Lamp Life Expectancy: 450 Hours
Spot Beam: 750`L
Lighting Configuration: Spotlight
Amps: 8.33 @ 12V DC
Wiring Options: 16` Cigarette Coil, 16` Cigarette, 21` Ring Terminals, 16` Battery Clamps, 16` Flying Leads
Housing Color: Black
Mounting: Adjustable Locking Permanent Mount Base
' Product Overview '

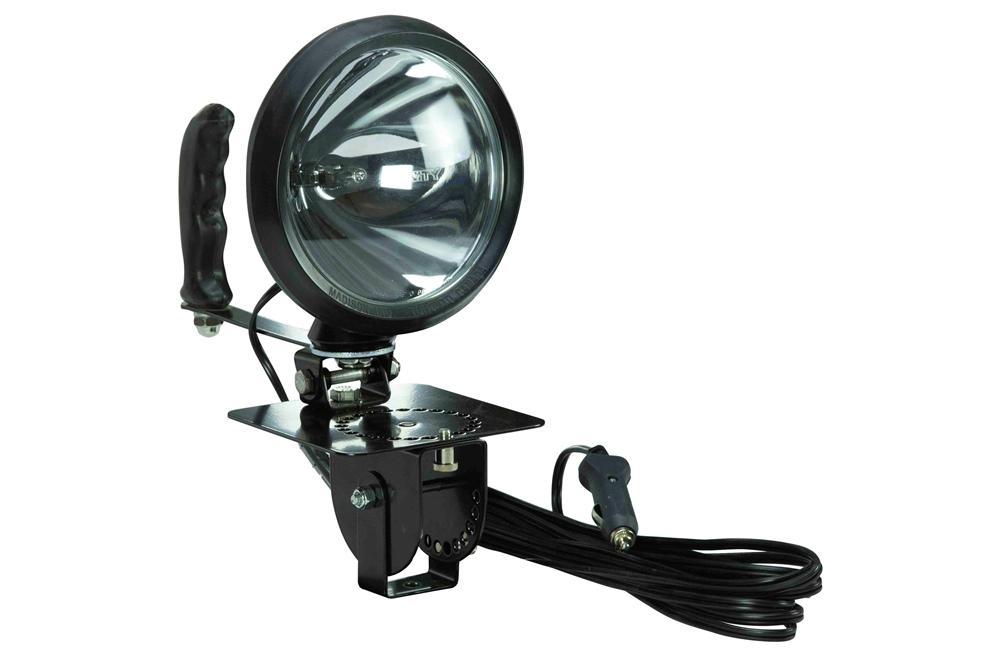

Made in the USA The HML-4-ALB from Larson Electronics is a 12 million candlepower sealed beam spotlight that enables the operator to control position of the light beam and place the light securely at any angle on a metallic surface. The adjustable locking permanent mount base that this spotlight is attached to features 360 degrees of rotation and 180 degrees of tilt. These adjustable lights are used as military spotlights, searchlights, utility spotlights, roof mount spotlights, hunting lights, work lights, and linesman lights. The HML-4-ALB is a 100 watt sealed beam spotlight that projects 2750 LUX at 25 feet and reaches distances of 750 feet. This sealed beam unit features a halogen infrared reflective (HIR) bulb. This type of halogen bulb achieves a greater light output while drawing the same wattage as traditional halogen bulbs. This greater light output is due to a special coating used on the bulb and capsule that allows visible light to pass trhough while reflecting infrared (IR) heat back onto the filament of the bulb. The specially designed halogen capsule of HIR lamps features a multi-layered thin film coating that allows visible light to pass through while reflecting infrared energy back to the filament. The reflected energy helps keep the filament within this spotlight at its optimum. The life of the lamp is rated at 450 hours and is the brightest halogen light of the ML series. *Please note that this sealed beam spotlight does not produce light in the infrared (IR) spectrum.*
This permanent mount sealed beam spotlight enables the operator to control the rotation and elevation of the light beam. As an ideal searchlight configuration, the operator positions the beam by changing the angle of the lamp. These lights will hold their position once the operator positions the beam. The operator can adjust the tension bolts to increase or lessen the "position holding" hinge depending on the amount of vibration in the environment. Interlocking aluminum and stainless steel u-brackets secure the elevation of the light beam once positioned. The lamp head is 6 inches in diameter and 3.5 inches deep. The housing of this unit is UV and salt water resistant. An on/off toggle switch is located on the back of the lamp housing.
16ft Coil Cord w/Cigarette Plug 21ft Cord with Ring Terminals 16ft Cord w/Battery Clamps 16ft Cord with Cigarette Plug
Click Images to Enlarge
Wiring: Each light comes with a detachable 16 foot coil cord with cigarette plug. The cord is detached via a weatherproof, 2 pin Deutsch connector which easily and securely attaches and detaches the coil cord from the spotlight. Other cords, including 21 foot cords with ring terminals (C-21RT), 16 foot cord with spring battery clamps (alligator clips) (C-16BC) and a 16 foot straight cord with cigarette plug (C-16CP) are available. This light can be ordered in either 12 volt or 24 volt configuration, allowing it to be used with any vehicle or ATV equipped with a cigarette plug. Choose voltage below when ordering. Mounting: This light features an adjustable locking permanent mount base that features 360 degrees of rotation and 180 degrees of tilt. The spring loaded pem bolt enables the user to easily change and lock the angle of rotation or tilt into one of the index holes. No amount of vibration will change the setting until the operator pulls back the spring loaded pin and selects a new position and locks that position in by releasing the spring loaded pin into one of the index holes. A permanent mount base enables the operator to secure a light on vehicles and equipment under severe vibratory conditions.
