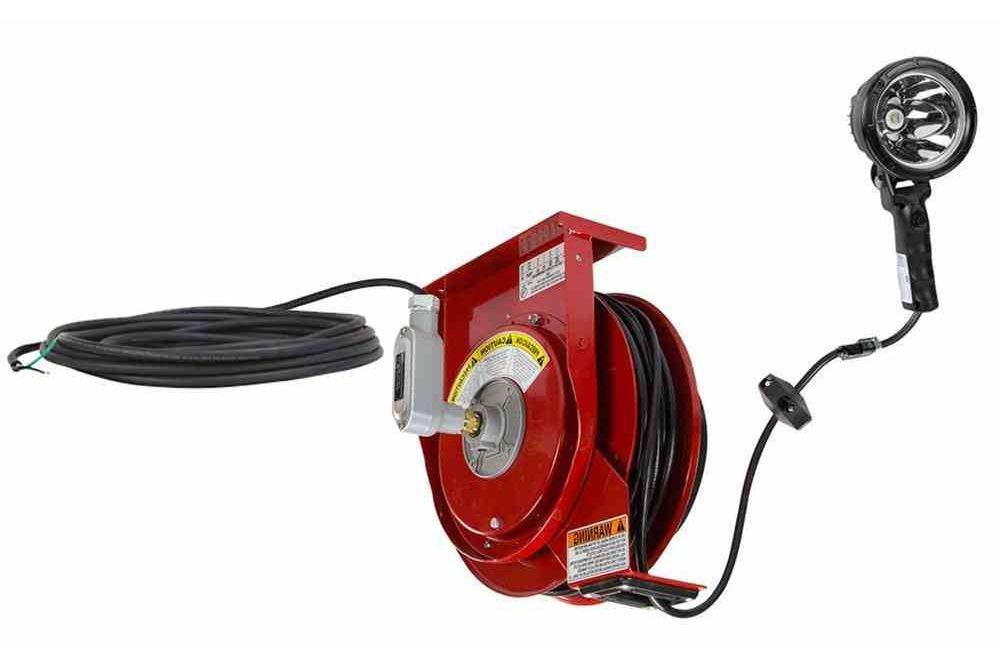

25W Handheld LED Spotlight - 12-32V DC - 1000' Spot Beam - 4.5" OD Light Head - 35' 12/3 Cord Reel

LARSON ELECTRONICSSKU: PL3-HML-LED25WRE-GCR35-HD
filler

Price:
Sale price$1,819.99

Description

Specifications / Additional Information
HML-LED25WRE-GCR35-HD LED Spotlight w/ 35` Cord Reel
Lamp Type: Cree LED
Dimensions: Spotlight - 5.75" x 4.36"
Weight: 26 Lbs
Voltage: 12-24V DC
Watts: 25 Watts
Amps: 2.08 @ 12V DC - 1.04 @ 24V DC
Total Lumens: 2,750
Light Color: 6000K
Beam: 850`-L x 50`-W
Lighting Configuration: 10° Spot or 60° Flood
Ambient Operating Temp: -40°C to 105°C
IP Rating: IP67 Waterproof
Vibration Tolerance: 8.6G RMS
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black Toll Free: 1-800-369-6671
Mounting: Handheld Portable, Surface Mount Cord Reel Intl: 1-903-270-1187
Wiring: 35` 12/3 SOOW Cable on Cord Reel w/ Flying Leads E-mail:
' Product Overview '
Buy American Compliant The HML-LED25WRE-GCR35-HD from Larson Electronics is a LED Handheld Spotlight with 35` Cord Reel that is ideal for a wide variety of uses including equipment, vehicle, military, law enforcement and industrial manufacturing applications. This ultra compact LED light produces a 2750 lumen output with low voltage and amp draw, 50,000 hour service life and 12 to 32 volt compatibility providing operators with a versatile and powerful LED lighting solution. The cord reel contains 35 feet of 12/3 SOOW cable to provide plenty of reach around the work area or job site. The HML-LED25WRE-GCR35-HD LED spotlight with cord reel from Larson Electronics produces 2750 lumen of bright light while drawing less than 2.25 amps from a 12 volt electrical system. A single Cree 25 watt LED producing 2750 lumen is combined with a high output reflector to produce a narrow 10 degree spread spot beam approximately 1000` long. This particular unit is ultra compact at 4.5" OD lamp head. This spotlight is built for durability and comfort with an impact resistant housing, an ergonomically designed 5 inch tall polycarbonate handle that matches the contours of your hand, and a light head that can be adjusted vertically. The 5.5 inch diameter lamp and reflector assembly is protected by a polycarbonate lens that is sealed against water and dust to provide an IP68 rating and weatherproof protection. The LED WRE series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The low profile design, low power requirements, high durability and versatile mounting makes these LED lights ideal for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, security and law enforcement, boating, off-roading and commercial structure illumination.
This photo shows an open parking lot lit only by ambient light at approximately 9:00 pm`. This photo shows the HML-LED25WRE-GCR35-HD in spot configuration. The building in the distance is 300` away, well illuminated by the LED spotlight.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or "duty cycle" accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage: These units are also able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDP WRE series LED lights can operate on current ranging from 12 to 32V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: As well as unparalleled heat control, the LED WRE series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Cree LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Each HML-LED25WRE-GCR35-HD Handheld Spotlight comes with flying leads. Cord Reel: The cord reel on the HML-LED25WRE-GCR35-HD provides a 35 foot long 12/3 cord for long range and convenient operation. The cord reel is designed for a lift/drag of up to 50FT of 12AWG/3C SOW/SOOW round cable. Reel with cable installed/tested comes with 50FT active travel plus an additional 2FT for safety wrap and hook up. This reel is UL Listed (UL/cUL), and is constructed of durable steel, has a red powder coat finish and includes a ball stop and a ratchet with a lockout feature.
CONDITIONS
Vin min (V) = 9 toff (us) = 2.9
Vin nom (V) = 12 R1 (kohm) = 50.2
Vin max (V) = 32 L1 (uH) = 3.0
Vo min (V) = 6.5 L-Pk (A) = 2.9
Vo nom (V) = 6.8 L-rms (A) = 2.9
Vo max (V) = 7 Ipk (A) = 2.5
I-LED (A) = 2.2 R2 (ohm) = 0.10
Efficiency = .85 I-FET (A) = 2.2
fsw nom (kHz) = 150 fs min (kHz) = 77
Ts nom (us) = 6.666667 fs max (kHz) = 301
Base frequency- = 36~37Khz @ 12V
Amplitude of pulse width- = 27Ms
Outside: External dimmer- = 500Hz
Inside : Current sensing from- 77KHz at 12V to 300KHz at 50V
