120W High Output LED Light Bar - 22" Length - 40 LEDs - 10-30V DC - IP68 Waterproof - 8800 Lumens


Sale price$1,209.99


Specifications / Additional Information
ILB-LED-40 Light Bar Specifications ILB-LED-40 Features
Type: (40) LEDs (40) 3 Watt LED Emitters
Dimensions: 21.5"W x 3.0"H x 3.5"D LEDs Driven At 80%
Watts: 120W -40°C ~ +80°C Operating Temp Range
Voltage: 10-30V DC IP68 Rated Waterproof to 3ft
Flood Beam: 380`L x 325`W
Weight: 15 lbs
Lighting Configuration: Driving Beam Pattern
Mounting: Adjustable Bracket w/ 270° Adjustability
Wiring: Deutsch IPD / LADD DT04-2P Connector
Amps: 10 Amps @ 12 Volts, 5 Amps @ 24 Volts
Lumens: 8800
LED Light Color: Cool White
LED Life Expectancy: 50,000+ Hours
Optics Efficiency: 90% Toll Free: 1-800-369-6671
Materials: Die-Cast Aluminum Housing, Coated Aluminum Bracket, Polycarbonate Lens Intl: 1-903-270-1187
Housing Color: Black E-mail:
' Product Overview '

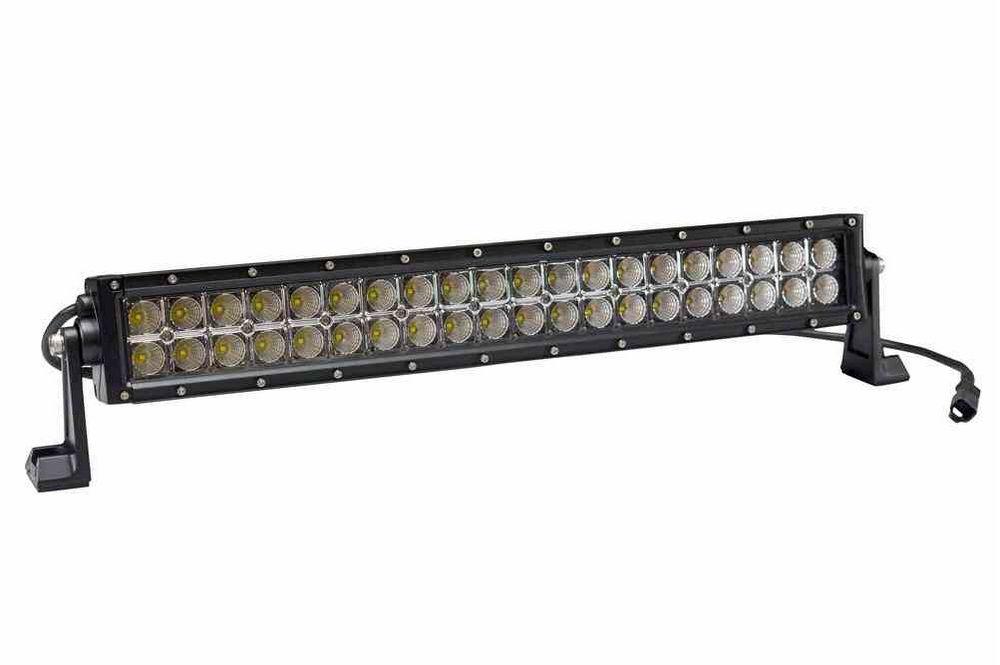

Buy American Compliant The ILB-LED-40 from Larson Electronics is a 22" LED Light Bar that offers a double stack LED assembly with double flood pattern reflector that gives the light bar its modern look and great light performance. The ILB-LED-40 22" LED Light Bar has high light output and extreme durability combined with an upright mounting option. This IP68 rated LED light bar is waterproof up to three meters and produces 8,800 lumens while drawing only 120 watts of power @ 10 amps from a 12 volt electrical system. This light can run on any voltage from 10 to 30 volts DC and provides an extremely rugged lighting solution that is ideal for vehicles, boating, machinery and road work. The ILB-LED-40 22" LED Light Bar produces a 380` long by 325` wide light beam with 8,800 lumens of cool white color. This LED Light Bar has 40 High Intensity 3 watt LEDs producing 220 lumens each and are paired with high purity 40 degree optics to produce a driving beam of cool white color to increase visibility in the far distance.
Shown above, vehicle headlights only.   Headlights supported with LED light bar.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize a die-cast aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the twelve high performance LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These ILB-LED series light bars can operate on current ranging from 10 to 30V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don`t always operate with 12 volts and external generators, transformers or inverters are impractical. Durability: The ILB-LED series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the `E` part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 80 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The 40 high-intensity LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Adjustable Mounting Option: The adjustable mounting option will give a full 270° rotation. Each bracket is stainless steel and is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single 3/8" bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. NOTE: Most Larson Electronics ILB-LED, LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
Superior LED Benefits
1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
