Industrial Control Station - (1) Disconnect Switch, (1) Fan Control Switch, (4) PLs, (2) 1P Circuit Breakers - Labels/EF

LARSON ELECTRONICSSKU: PL3-IND-CS-SS-M1
filler

Price:
Sale price$13,284.00
 More payment options

Description

Specifications / Additional Information
IND-CS-SS-M1 Industrial Control Station Ratings
Listing: - IP66 Rated
Dimensions: 14" x 12" x 6" NEMA Rated
Weight: - NRTL Listed to UL 508A
Voltage: - NRTL Listed to CSA C22.2 No. 14
System Label (Top/Center): Exhaust Fan EF-1 Control Panel
Disconnect Switch Type: 25A, 690V Rated, 3P - Rotary (Red)
Disconnect Switch Contacts: (3) NO
Disconnect Switch Label: Disconnect Switch
Fan Control Switch Type: 10A Rotary Knob, Two Positions (Black)
Fan Control Switch Contacts: (1) NO, (1) NC
Fan Control Switch Action: Maintained
Fan Control Switch Label: Fan Control
Green Pilot Light Qty/Labels: (1) FSD-1 Damper Open, (1) Fan On, (1) FSD-2 Damper Open
White Pilot Light Qty/Label: (1) Power On
Circuit Breakers: (1) 6A 1P, (1) 1A 1P
Magnetic Starter: 20A 2P
Materials: Stainless Steel
Mount: Flanged Panel Mount
Wiring: Terminal Blocks
' Product Overview '

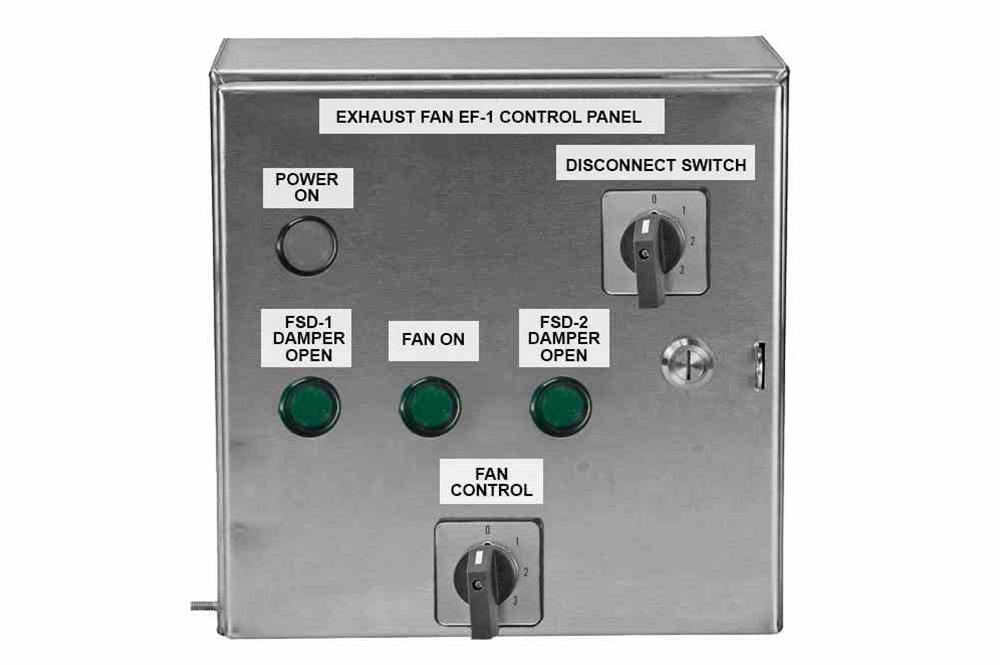

The IND-CS-SS-M1 from Larson Electronics is an Industrial Stainless Steel Control Station that offers several switches and control options for connected systems. This IP66 rated unit features one disconnect switch, one fan control switch, four pilot lights, a magnetic starter and two 1-pole circuit breakers. All components have labels to ensure proper use. The device is constructed of stainless steel and is compatible with flanged panel mounting requirements. The IND-CS-SS-M1 is recommended for use in industrial sites and facilities. This control station contains four pilot lights with the following labels: (1) green/FSD-1 Damper Open, (1) green/Fan On, (1) green/FSD-2 Damper Open and (1) white/Power On. A 25-amp, 690V rated disconnect switch with three normally open contacts (labeled "Disconnect Switch") and a 10-amp rotary, maintained switch with one normally open and one normally closed contacts (labeled "Fan Control") can be found on the device. Operators may access a 20-amp magnetic starter, as well as one 6-amp 1-pole and one 1-amp 1-pole circuit breakers inside the control station. The heavy-duty light station is constructed of stainless steel, with a screw clamp latch. Stainless steel control stations in this series can be customized with the following components: panel ID (316 stainless steel), tamperproof latches, key latches, copper ground/earth bars, hubs (quantity/location), glands, backplates, terminals and more. Wiring: Terminal blocks inside the device are available for completing wiring connections. Mounting: The IND-CS-SS-M1 is compatible with flanged panel mount installations.
