Far-UV Sanitation Portal - (5) 222 nm Excimer Lamps - 304 SS/Power Cord - MS
Far-UV Sanitation Portal - (5) 222 nm Excimer Lamps - 304 SS/Power Cord - MS
| IND-DWG-FUVC-5X-R1-MS-AT-120V-25C-M1 UVC Sanitation Portal - Ozone Free | Ratings/Features |
| Lamp Technology: Far UV-C Excimer | 222nm Germicidal Light |
| Lamp Quantity: (5) | Kills 99% of viruses and other germs |
| External Dimensions: 56"-W x 86"-H x 12"-D | Mercury Free Lamp |
| Internal Dimensions: 35.6"-W x 76.9"-H x 8.8"-D | Instant-On Lamp, No Warm Up Time |
| Weight: - | More Efficient & Effective than UVC Lamps |
| Voltage: 120V or 240V | No Harmful UVC Emissions |
| Frequency: 60Hz | No Block Off/Bandpass/Cutoff Filters) Needed |
| Total Watts: 200W | Skin Safe & Eye Safe |
| Single-lamp Watts: 40W | Ozone Free |
| Total UV Output: - | Low Heat Output |
| Total Effective UV Intensity: 200 uW/cm2 @ 1.57" | Motion Sensor |
| Expected Lifespan: 1,000+ Hours | EPA Reg. No 98409-1 |
| UV Wavelength: Far UV-C, 222nm | EPA Est. No. 98409-TX-1 |
| Lamp Type: - | |
| Lamp Base: - | |
| Replacement Lamp: - | |
| Beam Angle: 180º | |
| Light Configuration: Flood | |
| Remote Driver: Included | |
| Sensor Type: Motion Sensor | |
| On Duration After Activation: 2 Minutes | |
| Amps: 1.66A @ 120V, 0.83A @ 240V |  |
| Ambient Operating Temp Range: - | Special Orders - Requirements |
| Materials: 304 Stainless Steel | |
| Lens Material: Quartz Glass | |
| Mounting: Stand | |
| Wiring: 25' Power Cord w/ Cord Cap | |
| Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail | |
| *Please note: This product produces Far-UV light. Far UV-C light has shown in some studies to be eye-safe and skin-safe, while still effective as a germicidal and sanitation device, making it safe to use continually in occupied areas. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores and bacteria. * |
This unit is Made In USA - Manufactured in Texas

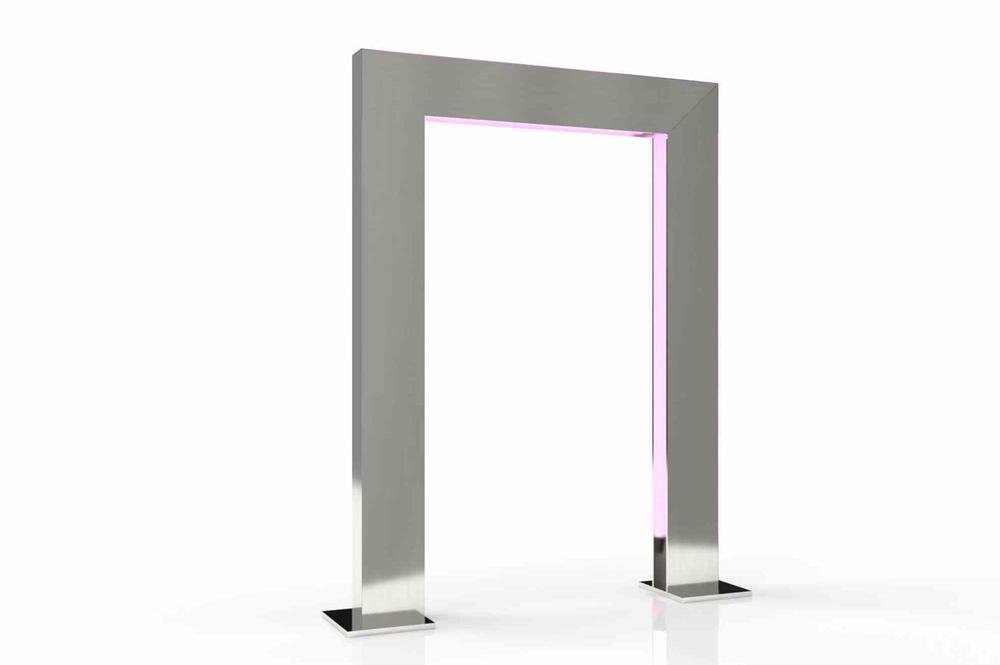

The Larson Electronics IND-DWG-FUVC-5X-R1-MS-AT-120V-25C-M1 Far-UV Sanitation Portal can disinfect 99% of viruses, bacteria, mold and spores at entry/exit points and high traffic areas. Equipped with five excimer lamps, this ozone-free unit offers 222nm UV-C output that is considered to be eye and skin safe for humans. The far-UV lamps offer instant start and automated operation with a motion sensor. The remote driver, which operates on 120V and 240V 60Hz, is included with the system.
*Please note: This product produces Far-UV light. Far UV-C light has shown in some studies to be eye-safe and skin-safe, while still effective as a germicidal and sanitation device, making it safe to use continually in occupied areas. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores and bacteria. *
The IND-DWG-FUVC-5X-R1-MS-AT-120V-25C-M1 is a powerful sanitation solution that has eye and skin safe features for industrial sites and commercial facilities. This sanitation portal consists of five, 40-watt excimer lamps. Each light offers 40 uW/cm2 UV intensity at 222nm UV wavelength. The ozone-free lights have an expected lifespan of 1,000+ hours and emit a flood beam pattern with 180 degrees of coverage. This UV light is protected by a quartz glass. The far-UV light can disinfect over 99% of viruses, bacteria, mold and spores. This lamp is considered to be eye and skin safe (the 222nm UV wavelength cannot penetrate the eyes and skin of humans), making applications suitable in occupied areas requiring sanitation. Designed for cool operation, the instant-start light is efficient at eliminating harmful microbes, viruses and bacteria at low doses.
The far-UV disinfection portal is made out of 304 stainless steel for corrosion resistance and long-term durability. We offer powder coated finishes for extended, reinforced durability at an additional cost. This system has a motion sensor that facilitates automated operation. When movement is detected near the portal, such as when a person is approaching or moving towards the unit, the UV lamps are turned on. After activation, the UV lights remain on for two minutes, as UV treatment occurs.
Benefits of Excimer Far UV Lamps: When it comes to Far-UV lamps, there are few options in the skin-safe and eye-safe wavelengths. Similar to LED lamps, excimer lamps provide “instant-on†startup, and do not require a warmup period; excimer lamps are at 100% peak output when switched on. Most lamp technologies that do product UVC use mercury in the manufacturing process. Excimer lamps have ZERO mercury, making them more environmentally friendly. Excimer lamps can be tuned to specific wavelengths (222nm wavelength for this product) and produce no harmful UVC radiation or wasteful visible light and infrared light. Excimer lamps are more efficient at converting electricity (input power) into UV irradiance, which reduces the heat output from excimer lamps over other technologies. Fluorescent, amalgam, low-pressure mercury, and high-pressure mercury lamps do not product as tight of a wavelength and generate more heat, both of which wastes energy for the UV sanitation application. Excimer lamps have a higher average UV irradiance per square inch and have a higher photon emission over other lamp technologies. Being safe for use in occupied areas, instant-on power, mercury free, higher UV output, and low heat output make Far-UV excimer lamps the preferred choice for UV sanitation and disinfecting applications.
Voltage: The IND-DWG-FUVC-5X-R1-MS-AT-120V-25C-M1 is compatible with 120V AC and 240V AC, 60Hz. Cooled by natural air, the remote driver is included with the system.
|
|||||||||||||||
