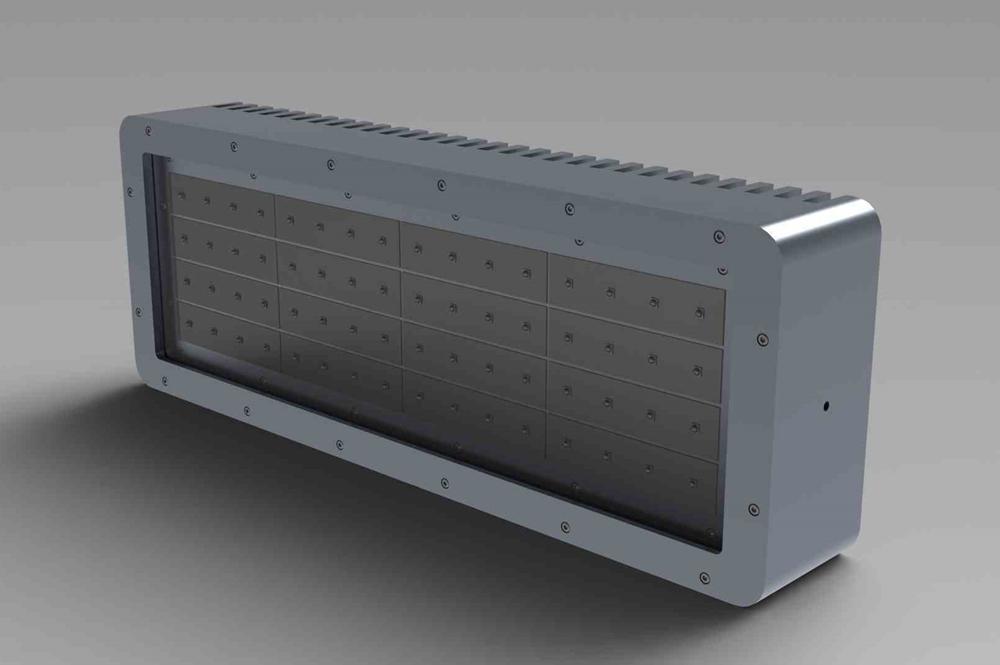

UV LED Light Fixture - 120-277V AC - 385nm - Heavy-Duty Industrial Applications

LARSON ELECTRONICSSKU: PL3-IND-HDLB-V1-80LED-BL-D-V2-1227-UV385
filler

Price:
Sale price$46,164.99

Description

Specifications / Additional Information
IND-HDLB-V1-80LED-BL-D-V2-1227-UV385 UV LED Light Bar Ratings/Approvals
Lamp Type: 64 Ultraviolet LEDs CE Certified
External Housing Dimensions: 24" L x 24" H x 5.25" D RoHS Compliant
Light Dimensions: 24" L x 24" H JEDEC MSL Level 1
Weight: 27 lbs IP68 Waterproof
Voltage: 120-277V AC @ 50/60Hz Lead Free LEDs
Total Radiant Intensity: 260W 70% Lumen Retention @ 65,000 hours
Amps: 4.6A @ 120V DC, 2.33A @ 240V DC, 2.02A @ 277V
Lumens: 40,000
Total Radiant Intensity: 312 mW
LED Life Expectancy: 50,000+ hours
LED Light Color: Ultraviolet (UV)
LED Wavelength: 385nm peak (UV-A)
Beam Configuration: 11°, 15°, 30°, 50° or 80°
Dimmable: Yes - 0-10V capable
Optics Efficiency: 95%
Ambient Operating Temp Range: -40°C to +80°C
Housing Material: Heavy Duty Billet Aluminum CNC Machined Housing
Housing Color: Black
Lens Material:Tempered Glass
Optic Materials:UV Transmissing Acrylic
Lens Gasket: O-ring Toll Free:1-800-369-6671
Wiring: 10` 16/2 SOOW Cord General App Plug Intl:1-903-270-1187
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail E-mail:

' Product Overview '
Buy American Compliant The IND-HDLB-V1-80LED-BL-D-V2-1227-UV385 from Larson Electronics is a Heavy-Duty Industrial Ultraviolet 385nm LED light fixture that offers high-intensity UV LED light output and extreme durability combined with versatile mounting and power options. This heavy-duty LED light bar, produces 260 W total radiant intensity with a peak wavelength of 385NM. This light is a native 120-277V LED light that does not use an external, back-mounted power supply, which provides an extremely rugged play and play lighting solution that is ideal for UV curing, food inspections, machine vision systems, and non destructive testing. The IND-HDLB-V1-80LED-BL-D-V2-1227-UV385 UV LED light bar from Larson Electronics produces 260 W total radiant intensity. 80 LEDs producing 3.25W radiant intensity each are arranged in rows and paired with high purity optics. We offer various beam degree options including 11°, 15°, 30°, 50° and 80°, covering a wide variety of both spot and flood lighting applications. This LED light produces 260 W total radiant intensity (at the lens) with a wavelength curve of 380-390NM and a peak wavelength of 385NM. This 600-watt unit operates on 120/277V AC 50/60 Hz. To ensure operation in versatile environments, the IND-HDLB-V1-80LED-BL-D-V2-1227-UV385 is constructed with stainless steel hardware (including mounting brackets) and a heavy-duty billet aluminum CNC machined housing. The lens is made out of shatter resistant polycarbonate with a one-piece front lens cover and o-ring lens gasket. To prevent moisture from entering the power cable, the wiring of the light uses a potted power connector. The LED ultraviolet light fixture can be used for non-destructive testing in aviation and manufacturing, food processing and inspection, and in paint, coating, and adhesive curing. The IND-HDLB-V1-80LED-BL-D-V2-1227-UV385 provides operators in industrial locations with a reliable and durable UV lighting solution that combines effective production of UV light with explosion proof protection and is applicable for leak detection, paint spray booths, ink, coatings, and adhesive curing, non-destructive testing, inspection, and food processing. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Driver: The industrial ultraviolet LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. With the IND-HDBL series of industrial LED lamps from Larson Electronics, each LED fixture contains multiple LED boards configured in a series of banks. Each bank contains four LED on a single board with the boards split into two driver banks. In the event of a driver failure, only one bank of LEDs will be effected while the other bank will continue to operate. This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the total irradiance output of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the "brightness" of the ultraviolet radiation needs of any lighting situation. A 0-10V dimmable light works through the use of a 2-wire DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. This 2-wire dimming control is in addition to the standard power wiring and requires additional connections. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof LED light fixture is equipped with 10 feet of 16/2 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 120-277V AC @ 50/60Hz without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don`t always operate with 12 volts and external generators, transformers or inverters are impractical. Durability: This LED light bar from Larson Electronics offers IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. This unit can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three feet and resist ingress of dust, dirt and humidity. The LEDs featured in this light bar have a total radiant intensity of 312 and a photosynthetic photon flux of 1160 umol/s. Each LED offers a very compact footprint - just 7.0mm x 7.0mm. Mounting: This light bar is equipped with stainless steel mounting brackets which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each stainless steel bracket has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light. Adjustment of the light is made with set screws. The mounting legs can be mounted inwards or outwards by flipping them around. Flipping in takes up less space for compact installs and flipping out makes the light easier to install. We also offer a BC-2 bar clamp mounting system  for even greater mounting versatility. Suggested Applications: Military, security inspections, non destructive testing, ultraviolet curing, food inspections, machine vision systems, paint booths, industrial grade 3D printing, and other locations that require a rugged source of ultraviolet LED light.
