Larson Body Temperature Thermal Camera System - 500 People/Minute - 0.3°C Accuracy, 32.8' Max Detection Distance
Larson Body Temperature Thermal Camera System - 500 People/Minute - 0.3°C Accuracy, 32.8' Max Detection Distance
Sold by: Larson Electronics

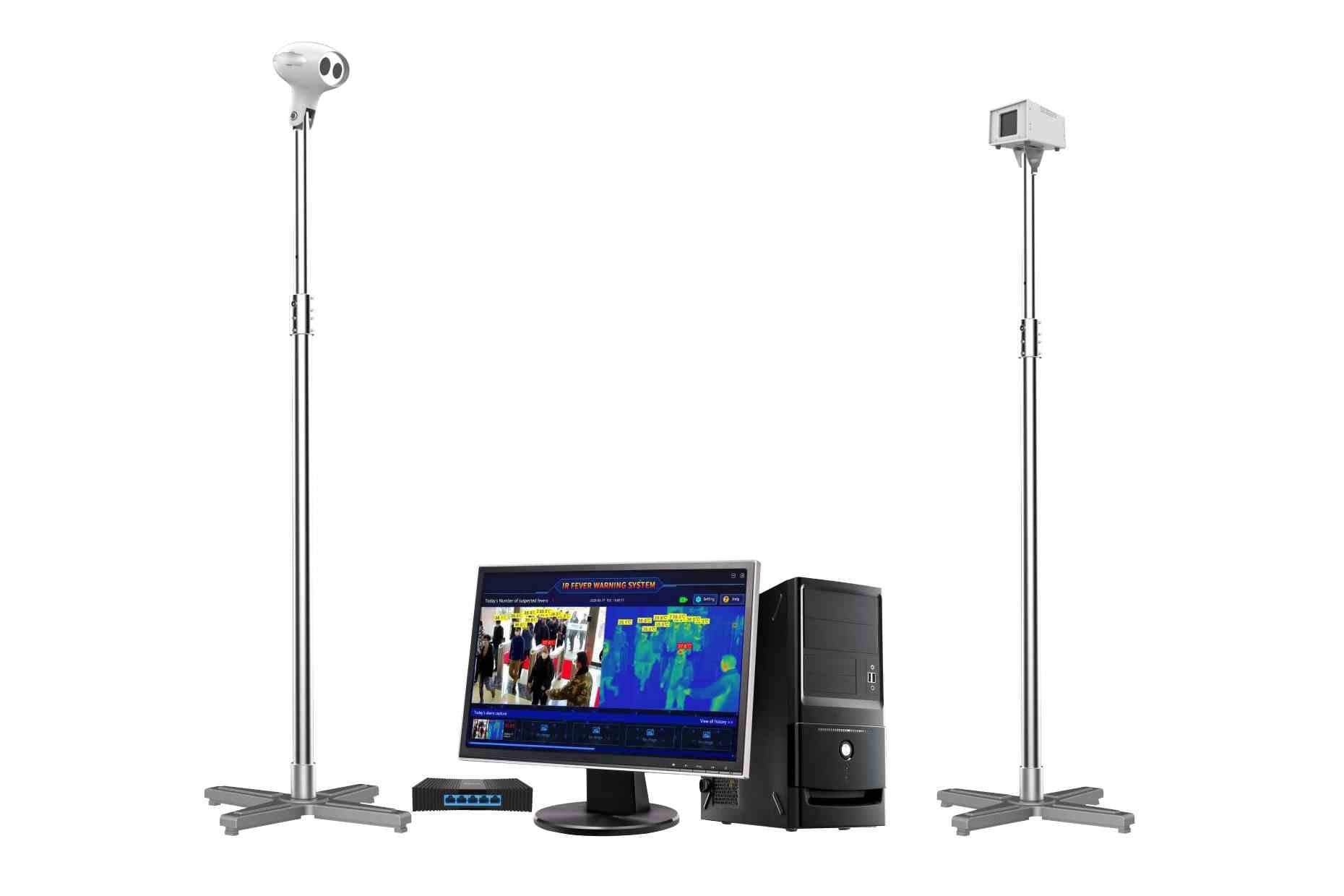

The IND-MD-TM-CS-TH-KT from Larson Electronics is a Body Temperature Detection Thermal Camera System for active monitoring at entrance/exit points, buildings, mass transit hubs, public locations and more. A thermal camera and black body are used to take temperature readings at a rate of 500 people per minute. This system comes with pole/stand mounting components and network/power cables.
The IND-MD-TM-CS-TH-KT is an automated body temperature monitoring system that utilizes a thermal camera and black body to capture body temperatures. This unit detects body temperatures at a rate of 500 people per minute, with an accuracy of +/- 0.3°C. Temperature readings of individuals are displayed as images in real-time. People with high body temperature readings are highlighted in red and triggers a warning notification on the system. This unit has a 6.56' to 32.8' detection distance. Resolutions include: 400x300 (thermal sensor) and 2 million pixels (visual camera).
Compared to a traditional thermometer, this intelligent body temperature monitoring solution is safer and faster to implement. Operators do not need to be in the same room with people subject to body temperature monitoring, which promotes social distancing practices and greatly decreases the risk of infection. Seamless tracking ensures temperature readings are carefully associated with the target individual at all times. People do not need to line up to get their temperature taken, as the process is automated.
Wiring:
The IND-MD-TM-CS-TH-KT comes with network and power cables. These components can be fed through the poles and stands during installation.
Mount:
The thermal camera and black body are compatible with pole mounting applications (pole mounting components included). For best results, the thermal camera should be mounted at a height of 7.87' and positioned at an angle of 13°-15°. Optimal height for the black body is 6.88'. The distance between the camera and black body should be 9.84' to 19.68' (optimal distance is 16.4').
Applications:
Medical, corona virus, industrial safety, hospitals, public locations, entrance/exit points, security checkpoints, retail centers, malls, hotels, large venues, transit points, buildings and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit: Far Infrared Body Temperature Screening System
Dimensions: -
Weight: -
Camera Input Voltage: 12V DC
Camera Watts: <12W
Camera Resolution: 2 Million Pixels @ 25Hz
IR Detector Resolution: 400 x 300
IR Detector Pixel Size: 17um
IR Detector NETD: <40mK
IR Detector Focal Length: 9.7mm
IR Detector FOV: 38º x 28º
IR Detector Frame Rate: 25Hz
Temperature Measurement Range: -10°C to 50°C
Temperature Measurement Accuracy: +/- 0.3°C
Temperature Measurement Calibration: Built-in Shutter and External Black Body, Automatic Calibration
Black Body Target Surface Uniformity: <0.1°C
Black Body Temperature Stability Accuracy: < +/-0.2°C (Single Point)
Software Parameter Settings: Warning Switch and Warning Threshold Value, Number of Warning Targets, Warning Photos Automatic Clearing, Shielding Fixed High Temperature Objects
Software Facial Recognition: Intelligent Facial Recognition
Software Real-time Preview: Visible and Thermal Images
Software Real-time Spot Temperature Detection: Any Point in the FOV
Software Automatic Tracking: Elevated Temperatures
Software Automatic Warning: Tracking, Warning and Photo Capturing for People w/ High Body Temperature Warning when Black Body is Blocked
Software Network Communication Protocol: HTTP, RTSP
Operating Ambient Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Working Humidity: <90%
Mount: Pole/Stand
Thermal Camera Mounting Position: 7.87' Height w/ 13°-15° Optimal Angle
Black Body Mounting Position: 6.88' Height
Distance Between Camera and Black Body: 9.84' to 19.68'
System Contents: (1) Thermal Camera, (1) Black Body, (2) Network Cables, Power Cables, PC Hosting, Licensed Windows System, (2) Poles w/ Base
