1 KVA Solid-state Frequency Converter - 240V 60Hz Input to 230V 50Hz Output - 1PH - Front Handles

LARSON ELECTRONICSSKU: PL3-IND-SFC-1P-1KVA-240V.US-60HZ-230V.EU-50HZ
filler

Price:
Sale price$7,264.00

Description

Specifications / Additional Information
IND-SFC-1P-1KVA-240V.US-60HZ-230V.EU-50HZ Frequency Converter Features/Ratings
Unit Type: Solid-state Static Frequency Converter NRTL Listed to UL 508A
Dimensions: 16.92" x 18.11" x 7.08" Advance Microprocessor Control
Weight: 99.2 lbs True Online Double Conversion
Input Voltage: 240V 1PH +/- 5% Smart Fan Control
Input Frequency: 60 Hz +/- 5% Low Input THDi < 3%
Input Connection: L1 + L2 (USA Spec)
Capacity: 1 KVA - 100% Load - 30 Mins
Output Voltage: 230V 1PH +/- 2%
Output Frequency: 50 Hz +/- 5%
Output Amps: 4.2A @ 240V Setting 0-300V (High Grade); 8.4A @ 120V Setting 0-150V (Low Grade)
Output Connection: L1 + N (EU Spec)
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40C
Humidity: 0-90% (Non-condensation)
Mounting: Standalone w/ Front Handles
Color: Tan
' Product Overview '

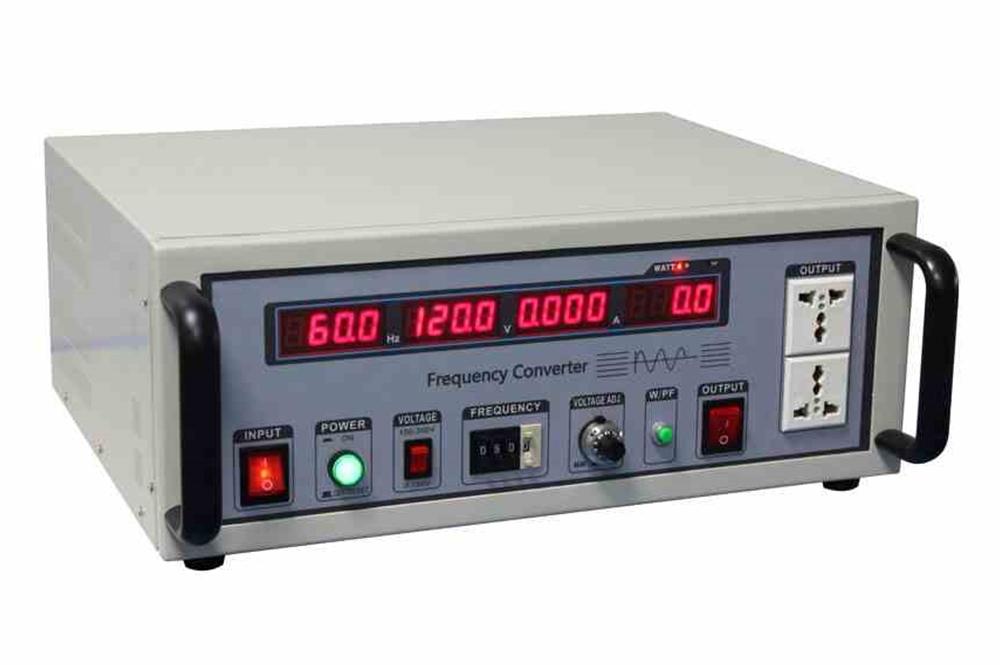

The Larson Electronics IND-SFC-1P-1KVA-240V.US-60HZ-230V.EU-50HZ Solid-state Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 1 KVA static converter comes with an input voltage/frequency of 240V single-phase 60 Hz and an output voltage/frequency of 230V single-phase 50 Hz. This unit is equipped with front handles and circular pads at the bottom of the converter. The IND-SFC-1P-1KVA-240V.US-60HZ-230V.EU-50HZ can be used to accurately convert voltages and frequencies in industrial sites. This 1 KVA unit offers 240V single-phase 60 Hz on the input side and 230V single-phase 50 Hz on the output side. Output amps is 4.2A @ 240V setting 0-300V (high grade) and 8.4A @ 120V setting 0-150V (low grade). During operation, rectification is completed via IGBT. The static frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. Input connection contains L1+L2 (USA spec), while output connection contains L1+N (EU spec). This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-1P-1KVA-240V.US-60HZ-230V.EU-50HZ is a standalone unit with front handles and bottom-located pads. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
