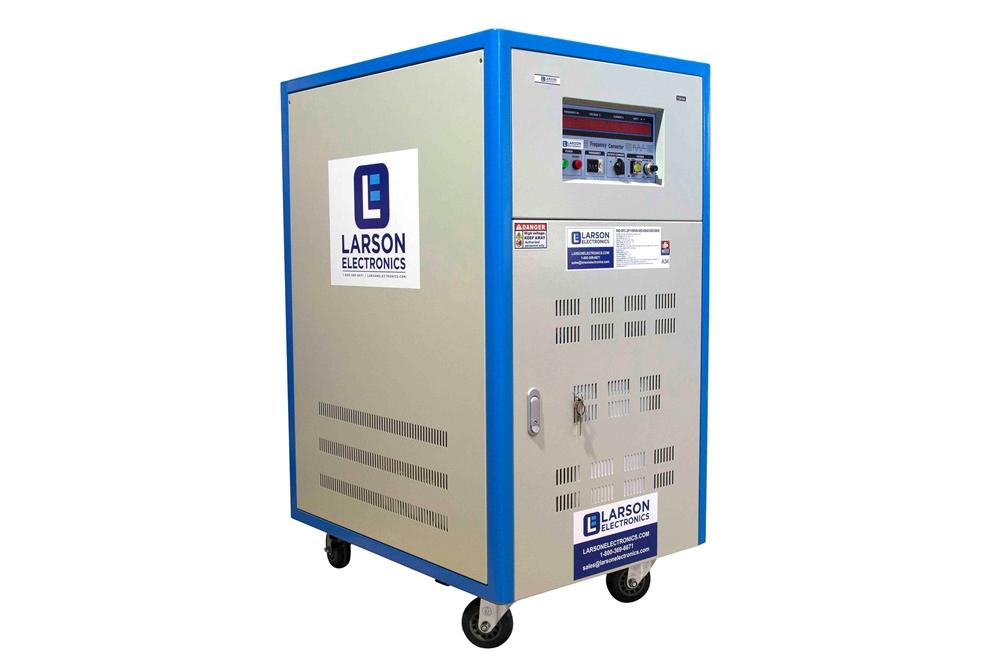

100 KVA Solid-state Frequency Converter - 208V 60 Hz Input to 208V 50 Hz Output - Mobile w/ Wheels - NEMA 3R

LARSON ELECTRONICSSKU: PL3-IND-SFC-3P-100KVA-208-60HZ-208-50HZ-N3R
filler

Price:
Sale price$126,320.00

Description

Specifications / Additional Information
IND-SFC-3P-100KVA-208-60HZ-208-50HZ-N3R Frequency Converter Features/Ratings
Unit Type: Solid-state Static Frequency Converter NRTL Listed to UL 508A
Dimensions: 59" x 33.8" x 56.2" Advance Microprocessor Control
Weight: 1,675 lbs True Online Double Conversion
Input Voltage: 208V 3PH +/- 5% Smart Fan Control
Input Frequency: 60 Hz +/- 5% Low Input THDi < 3%
Capacity: 100 KVA - 100% Load - 30 Mins NEMA 3R
Output Voltage: 208V 3PH +/- 2%
Output Frequency: 50 Hz +/- 5%
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40C
Humidity: 0-90% (Non-condensation)
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '
The Larson Electronics IND-SFC-3P-100KVA-208-60HZ-208-50HZ-N3R Solid-state Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 100 KVA static converter comes with an input voltage/frequency of 208V three-phase 60 Hz and an output voltage/frequency of 208V three-phase 50 Hz. This unit is mobile via four wheels at the bottom of the enclosure. The IND-SFC-3P-100KVA-208-60HZ-208-50HZ-N3R can be used to accurately convert voltages and frequencies in industrial sites. This 100 KVA unit offers 208V three-phase 60 Hz on the input side and 208V 50 Hz on the output side. During operation, rectification is completed via IGBT. The static frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-3P-100KVA-208-60HZ-208-50HZ-N3R is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
