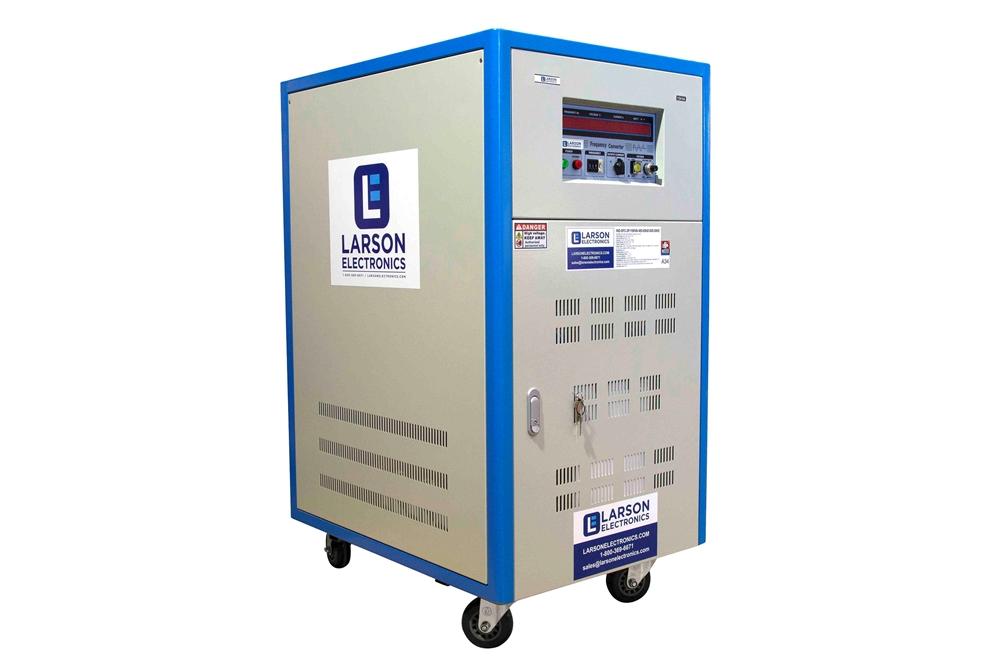

10 KVA Solid-state Voltage Frequency Converter - 208V 60 Hz Input to 208Y/120V 400 Hz Output - 3PH, Wye - Mobile w/ Wheels

LARSON ELECTRONICSSKU: PL3-IND-SFC-3P-10KVA-208-60HZ-208Y.120-400HZ
filler

Price:
Sale price$29,604.00

Description

Specifications / Additional Information
IND-SFC-3P-10KVA-208-60HZ-208Y.120-400HZ Frequency Converter Features/Ratings
Unit Type: Solid-state Static Voltage Frequency Converter NRTL Listed to UL 508A
Dimensions: 30.31" x 22.83" x 44.88" Advance Microprocessor Control
Weight: 331 lbs True Online Double Conversion
Input Voltage: 208V, Wye, 3PH +/- 5% Smart Fan Control
Input Frequency: 60 Hz +/- 5% Low Input THDi < 3%
Capacity: 10 KVA - 100% Load - 30 Mins
Output Voltage: 208Y/120V, 3PH +/- 2%
Output Frequency: 400 Hz +/- 5%
Rectification: IGBT
Efficiency Ratio: Up to 95%
Load Stabilization Rate: < +/- 1%
Frequency Stability: < +/- 0.01%
Harmonic Distortion: Pure Sine Wave < 2%
4-digit Meters: Digital Frequency Meter- Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Protection: Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Operating Temp: 0-40C
Humidity: 0-90% (Non-condensation)
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '
The Larson Electronics IND-SFC-3P-10KVA-208-60HZ-208Y.120-400HZ Solid-state Voltage Frequency Converter is designed for voltage and frequency rectification in industrial locations. The 10 KVA static converter comes with an input voltage/frequency of three-phase 208V Wye, 60 Hz and an output voltage/frequency of three-phase 208Y/120V, 400 Hz. This unit is mobile via four wheels at the bottom of the enclosure. The IND-SFC-3P-10KVA-208-60HZ-208Y.120-400HZ can be used to accurately convert voltages and frequencies in industrial sites. This 10 KVA unit offers three-phase 208V Wye, 60 Hz on the input side and three-phase 208Y/120V, 400 Hz on the output side. During operation, rectification is completed via IGBT. The static frequency converter provides robust microprocessor control, true online double conversion and active input power factor correction. This solid-state frequency converter is equipped with several protective features, including overload, short circuit, over temp, instant power failure connection and alarm. For efficient operation, the unit features smart fan control and ultra high efficiency (98% in Smart Eco Mode). Operators are provided access to a panel, which houses various controls for meters. Available meter components include digital frequency meter, digital voltage meter, digital ammeter and digital watt meter. Mounting: The IND-SFC-3P-10KVA-208-60HZ-208Y.120-400HZ is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
