Industrial Portable UV Sanitation Cart - Kills 99% of Viruses - 10,800 sq. ft. Area - 304 Stainless Steel - 50' Cord - Shatterproof Bulbs - WT

LARSON ELECTRONICSSKU: PL3-IND-UC.360-48-12L-UVC-V4-AT-KT-WT-SPF-50C
filler

Price:
Sale price$45,602.00

Description

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
IND-UC.360-48-12L-UVC-V4-AT-KT-WT-SPF-50C UV Sanitation Light Cart Ratings/Features
Lamp Technology: UV-C Fluorescent Short-wave Germicidal Light
Lamp Qty: (12) Kills 99% of Viruses and Other Germs
Dimensions:19"-W x 19"-D x 68"-H Cooling Fans
Weight: 65 lbs Safety Kit Included
Voltage: 120V AC, 50/60 Hz EPA Reg. No 98409-1
Total Watts: 1440W EPA Est. No. 98409-TX-1
Single-lamp Watts: 120W
Total UV Output: 319.12W
Single-lamp UV Output: 26.6W
Expected Lifespan: 8,000+ Hours
UV Wavelength: UV-C, 200nm - 280nm (254 nm)
Lamp Type: T8HO - Shatterproof
Lamp Base: G13
Replacement Lamp: FRL-48-1X-T8HO-120W-UV-C
Beam Angle: 360º
Light Configuration: Flood
Delay: 1 Minute and 30 Seconds at Startup
Maximum Treatment Time: 24 Hours
Wireless Network Connectivity: Included - Tracking Usage, GPS, Runtime Logging
Safety Kit: (2) Safety Goggles, (4) Safety Signs
Amps:  -
Ambient Operating Temp: 80ºF Special Orders - Requirements
Materials: 304 Stainless Steel
Lamp Protection: Wire Guard and Center Rail
Mounting: Portable - (4) Wheels
Wiring: 50' 16/3 SOOW Cord w/ Cord Cap
Cord Cap: 5-15 Straight, L5-15 Twist, or Pigtail
***PLEASE NOTE: UV-C light can cause temporary or permanent loss of vision, and temporary acute redness or ulceration (mild to severe sunburn) to exposed skin. To prevent exposure, do not operate the device in any application that allows UV-C light to be visible during operation. NEVER LOOK DIRECTLY AT THE BULB OR DISINFECTING TARGET ZONE. DO NOT touch bulb with bare hands. The oils in your skin will damage the lamp. Fingerprints will result in reduced performance and significantly reduce the lifespan of the lamp unless they are removed with alcohol. Please read instruction manual for UV safety requirements before operating.***
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

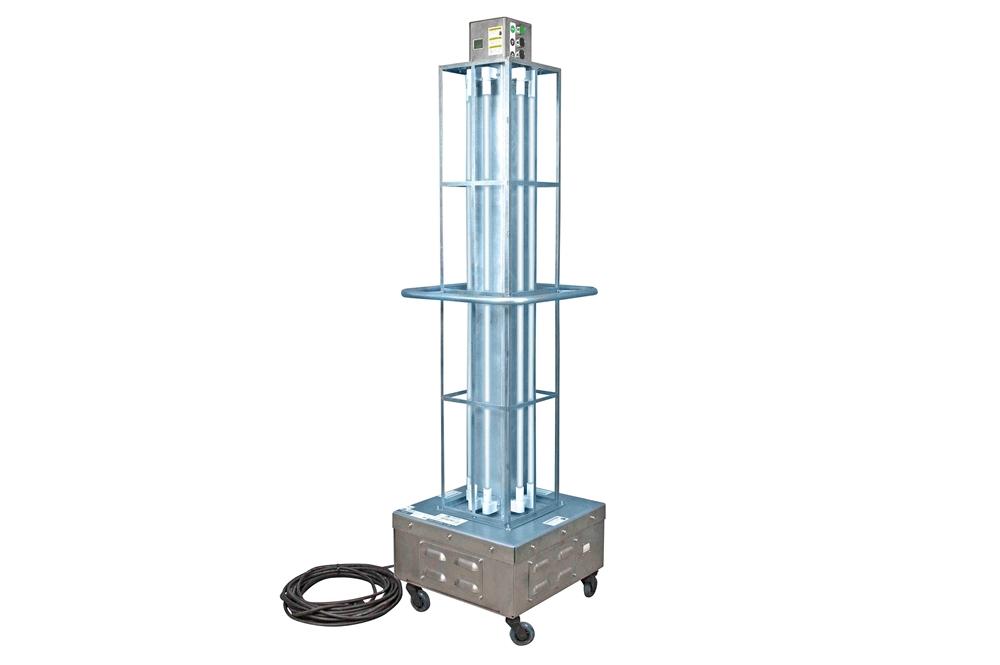

This unit is Made In USA - Manufactured in Texas The Larson Electronics IND-UC.360-48-12L-UVC-V4-AT-KT-WT-SPF-50C is an Industrial Portable UV Sanitation Cart which can kill 99% of viruses, bacteria, mold, and spores in large facilities. This unit offers UV-C output at a range of 200nm - 280nm (254nm) and comes equipped with twelve UVC fluorescent lamps. Capable of disinfecting an entire room, the 304 Stainless Steel UV system comes with wireless connectivity, 50' of 16/3 SOOW cord and a safety kit (two goggles and four safety signs). *Please note: This product produces UV light. Make sure to follow all safety guidelines and protocols found in the user manual. UVC light in the proper setting kills up to 99.9% of viruses, mold, spores, and bacteria. * The IND-UC.360-48-12L-UVC-V4-AT-KT-WT-SPF-50C is a powerful sanitation solution for industrial sites and commercial facilities. Equipped with twelve UVC fluorescent lamps, this system offers output within the 200nm - 280nm UV-C range (254 nm). The lights have an expected lifespan of 8,000+ hours and emits a flood beam pattern. A durable PEF coating makes the lamps shatter resistant and provides protection from impacts. Should the bulb break during an emergency, the internal contents and glass will remain trapped inside the unit. This coating adds an extra layer of safety for workers and customers alike. This UV system caters to 10,800 square feet of space with full, 360 degrees of coverage. Cooling fans below the lamps keep the unit running optimally. There is a delay of 1 minute and 30 seconds at startup for clearing the area after activation. Operators may move the cart around after exposure time to disinfect several sections. Wireless connectivity via local networks is available on the UV disinfection system. This feature enables individuals to monitor or track usage, log runtimes, view GPS and more.
Distance from Cart Irradiance/Second Exposure Time Required* Beam Width Beam Height
6 inch 7244.64 uW/cm2 5.8 seconds 2 ft 4 ft
12 inch 3639.16 uW/cm2 11.54 seconds 2.25 ft 4 ft
18 inch 2021.76 uW/cm2 20.77 seconds 2.5 ft 4 ft
2 foot 1308.52 uW/cm2 32.1 seconds 3 ft 4 ft
3 foot 685.15 uW/cm2 1 minutes 4.5 ft 4 ft
4 foot 345.39 uW/cm2 2 minutes 6 ft 4 ft
5 foot 221.04 uW/cm2 3.16 minutes 7.5 ft 4 ft
6 foot 153.51 uW/cm2 4.66 minutes 9 ft 4 ft
7 foot 112.78 uW/cm2 6.33 minutes 10.5 ft 4 ft
8 foot 86.34 uW/cm2 8.33 minutes 12.25 ft 4 ft
9 foot 68.22 uW/cm2 10.66 minutes 13.5 ft 4 ft
10 foot 55.26 uW/cm2 12.66 minutes 15.25 ft 4 ft
12 foot 38.37 uW/cm2 18.66 minutes 18.5 ft 4 ft
15 foot 24.55 uW/cm2 28.66 minutes 23 ft 4 ft
18 foot 17.05 uW/cm2 41.33 minutes 27.5 ft 4 ft
20 foot 13.81 uW/cm2 50.66 minutes 30 ft 4 ft
*Exposure time is based off of total irradiance. The above calculations are based on 12mJ total exposure. This level of exposure deactivates most organisms.
This unit is made out of 304 stainless steel and features spring-loaded lamp sockets, which makes it easier to switch out lamps. A wire guard protects the UV lamps from tampering or accidental bumping. Two safety goggles (not full face masks) and four safety signs (to warn individuals about ongoing UV sanitation) are included with the light. With a recommended 20-25 minute exposure time for viruses, multiple carts can be purchased to cover larger areas quicker. The UV light can disinfect over 99% of bacteria, viruses, bacteria, mold, and spores.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated Flying Leads / Pigtail Wires
Wiring/Plug: This unit is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground or NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Cart: Operators can easily move the UV lighting system around facilities via four wheels at the bottom. A center rail enables seamless guidance and positioning of the unit. For best results, the light should be setup in the middle of the area. Note on Environment: Sunlight and visible light fixtures do not impact the effectiveness of the disinfecting on this UVC sanitation product. Metal halide, high pressure sodium, fluorescent, and LED light fixtures can be left on. The UV radiation emitted from this product is not disrupted by any type of lighting in the environment. Put simply, NO it DOES NOT need to be dark in the area you plan to disinfect. The UV radiation is harmful to the eyes and skin, and that is why you should not be in the area while it is in operation. Please see user manual for additional safety information. Suggested Applications: Sanitation, disinfection, retail spaces, lobbies, commercial locations, industrial parks, schools, public transportation hubs, airports, office buildings, medical centers, and more; kills 99% of viruses, bacteria, mold, and spores.
