Non-Fused Disconnect Switch - Isolator Switch - Three Pole - 200A - 415V Rated - (1) Open Auxillary Contact - Carbon Steel
Non-Fused Disconnect Switch - Isolator Switch - Three Pole - 200A - 415V Rated - (1) Open Auxillary Contact - Carbon Steel
| IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 Weatherproof Non-Fused Disconnect / Isolator Switch | Ratings/Details: |
| Unit Type: Weatherproof Non-Fused Disconnect / Isolator Switch | IP66 |
| Dimensions: - | Carbon Steel Construction |
| Weight: - | Powder Coated |
| Rated Voltage: Max to 400 V | WF2 Corrosion-Proof Mark |
| Rated Current: Max to 200 Amps | |
| Utilization Category: AC-23, AC-3 | |
| Rated Insulation Voltage (Ui): 800 V | |
| Rated Withstand Impulse Voltage (Uimp): 6 kV | |
| Rated Short-Time Withstand Current (Icw): 10 kA | |
| Rated Short-Time Marking Capacity (Icm): 17 kA | |
| Short-Circuit Protection of Fuse: 500 V / 200 A | |
| Protection Characteristic of Fuse: gG(Conformity to IEC/EN60269-1) | |
| Ambient Temperature: -55°C to + 55°C | |
| Selector Switch: (1) 3-Pole, 2-Position Selector Switch Labeled "ON", "OFF" | |
| Selector Switch Safety: Lockout/Tag Out Lock | |
| Auxillary Contact: (1) Normally Open | |
| Terminals: (1) 120mm Terminal w/ Internal Wiring | |
| Materials: Carbon Steel - Powder Coated - Gray | |
| Cable Entry: (2) Cable Entries - Each w/ M63 Plastic Cable Glands | |
| Mount: Surface | |
| Cable Diameter: Can Accomodate 1.06" to 1.89" (27-48 mm) Cable |

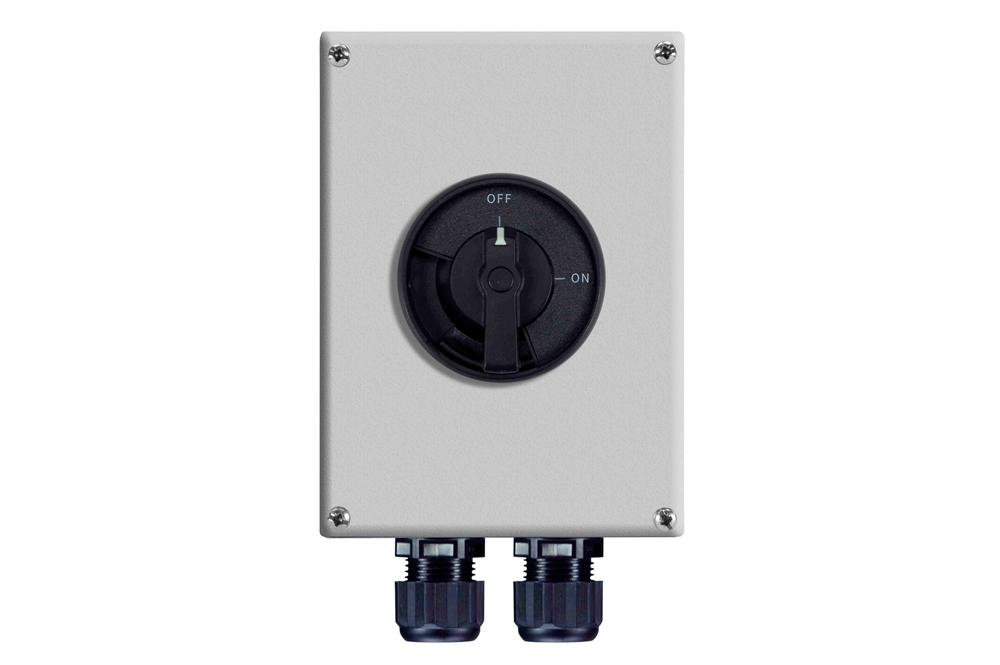

| The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 from Larson Electronics is a Weatherproof Non-Fused Disconnect / Isolator Switch that is rated for 415 V, 50 Hz and is also rated IP66 for use in areas where exposure to dust or powerful water jets is possible. This weatherproof non-fused disconnect / isolator switch prevents all ingress of dust and immune to water sprayed from powerful jets. The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 features a two position selector switch and one normally open auxillary contact. The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 is constructed from carbon steel and is powder coated gray for durability and corrosion resistance. The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 is a durable weatherproof non-fused disconnect / isolator switch designed for areas that encounter dusty or wet conditions. Featuring an voltage rating of 415 V, 50 Hz, this unit features one normally open auxillary contact in addition to the two-position selector switch. This isolator switch is equipped with two M63 moulded plastic cable glands with a diameter of 27-48 mm. The two position selector switch on the IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 is labeled "ON" and "OFF". The switch is key lockable for lock out or tag out. Voltage: The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 has a voltage rating of 415 V, 50 Hz. Wiring/Mounting: The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 features two cable entries. Each entry is equipped with a M40 plastic cable gland and can accommodate cables with a diameter of between 1.06" to 1.89" (27-48 mm). The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 has one 120mm terminal with internal wiring on the inside. Materials: The IND-WPCS-CS-NFDS-415V-3P-200A-AUX.1-R1 is built from carbon steel and is finished in a gray powder coating for durability and corrosion resistance. Applications: Situations requiring a weatherproof non-fused disconnect / isolator switch. |
