Larson 800W - Single Output Power Supply - 12V/24V -1 Approved

Larson ElectronicsSKU: PL3-ITX-83
filler

Price:
Sale price$972.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

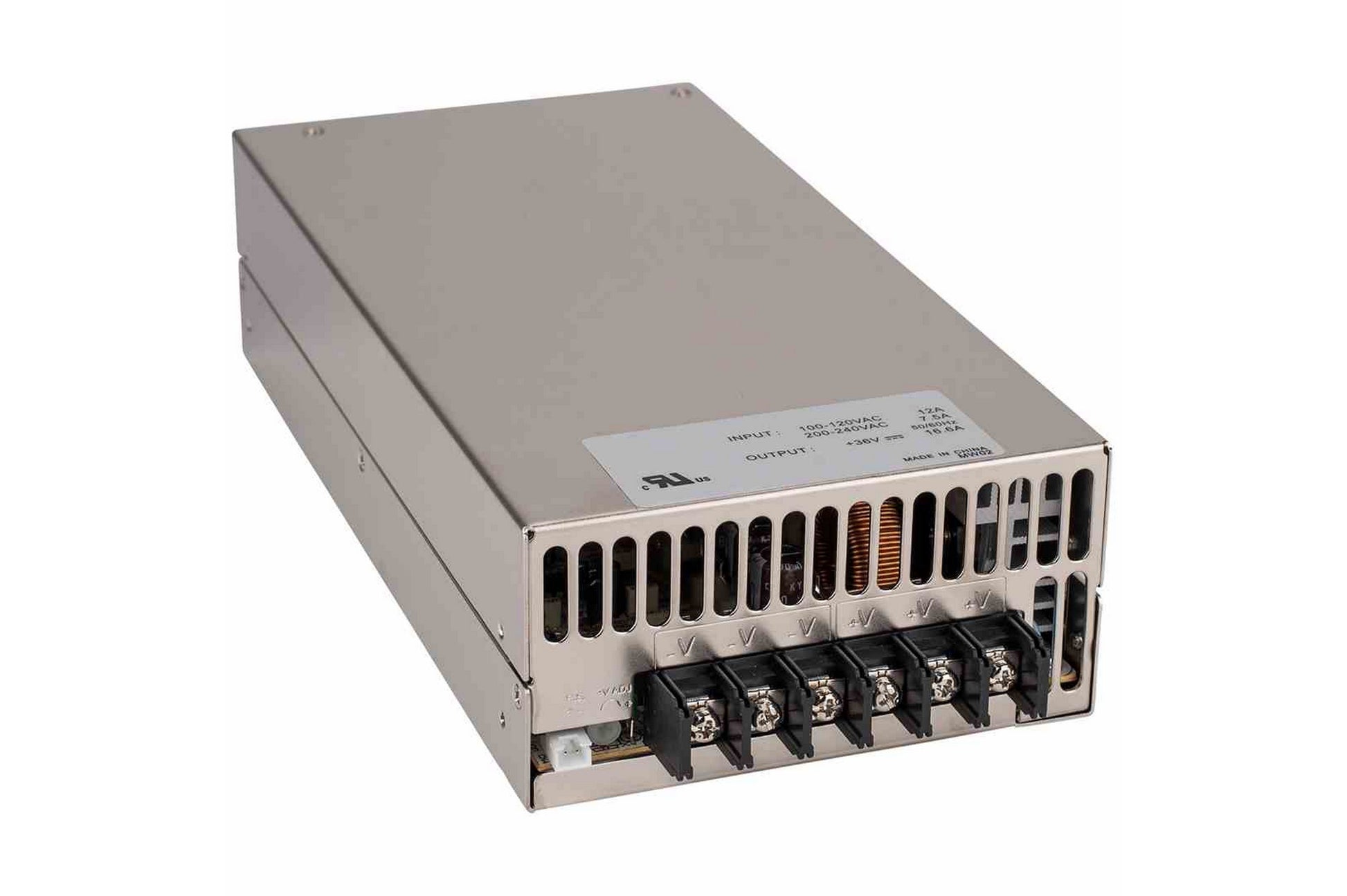

The Larson Electronics ITX-83 Single Output Power Supply is designed to convert commonly used AC electrical current to 12VDC @ 66 amps or 24VDC @ 33 amps (voltage selectable below). This unit features forced air cooling by built-in DC ball bearing fan, high power density of 7.3w/in3 and a built-in remote sense function. The device may be used to convert mainstream voltages to 12VDC or 24VDC, to operate a wide range of equipment, such as LED lights and other electronics with low voltage DC requirements.
Features:
The ITX-83 Single Output Power Supply is an 800-watt device that offers safe conversion and utilization of commonly used voltages to 12VDC @ 66 amps or 24VDC @ 33 amps, which can be used to power low voltage, 12/24V equipment. Operators may select AC input ranges (90-132VAC/180-264VAC or 254-370VDC) using a switch. During operation, the unit stays cool through forced air cooling by built-in DC bearing fan. The device features high power density of 7.3w/in3 and a built-in remote sense function. This unit supports DC_OK signal output and a built-in remote (ON/OFF) control. It is suitable for working environments ranging between -20°C and +60°C, with a working humidity range of 20 ~ 90% RH non-condensing.
When it comes to protection, this unit offers short circuit, overload (105 -125% rated output power), over voltage (12V: 13.8V-16.2V, 24V: 28V-32.4V) and over temperature (70°C ± 5°C [TSW1] detect on heatsink of power transistor). Should overload, over voltage or over temperature occur, the unit will shut down the o/p voltage and will either re-power on to recover (overload and over voltage) or recover automatically after temperature normalization (over temperature). The ITX-83 is NRTL Certified to UL 60950-1 and RoHS compliant.
Application:
Power management, industrial, machinery, industrial automotive, computing components.
NOTE:
In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 12 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using two of our LEDP10W-120E 120 watt LED lights, 120 watts divided by 12 volts is 10 amps. This would mean the ITX-83 is well suited as it would run at under 75% capacity to produce the necessary 10 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your Specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
800W - Single Output Power Supply - 12V/24V
Quick Summary
Device Type:
Single Output Power Supply
NRTL Certified to UL
60950-1 Approved
DC Voltage:
12V @ 66 Amps, 24V @ 33 Amps
Watts:
800 Watts
RoHS Compliant
Ripple & Noise:
150mVp-p (12V), 200mVp-p (24V)
Forced Air Cooling by Built-in DC Fan
Voltage Tolerance:
± 1.0%
Built-in Remote Sense Function
Frequency Range:
47 ~ 63Hz
DC_OK Signal Output
Input Voltage Range:
90-132VAC/180-264VAC, 254-370VDC (Switch Selectable)
Built-in Remote ON/OFF Control
Efficiency:
85% (12V), 88% (24V)
DC_OK Remote Signal:
3.3V ~ 5.6V (PSU Turn On), 0 ~ 1V (PSU Turn Off)
Remote Control:
RC+/RC-: 0 ~ 0.8V (Power On), 4 ~ 10V (Power Off)
Leakage Current:
< 2.5mA/240VAC
Protection:
Short Circuit, Overload, Over Voltage, Over Temperature
Special Orders- Requirements
Working Temp:
-20 °C ~ +60 °C
Contact us for special requirements
Working Humidity:
20 ~ 90% RH Non-Condensing
Toll Free:
1(647) 254-9757
Mount Type:
Panel
Intl:
1-903-270-1187
Dimensions:
10.9” x 5” x 2.5”
Fax:
1-903-498-3364
Weight:
4.6 Lbs
E-mail:
Contact info@purilite.ca
