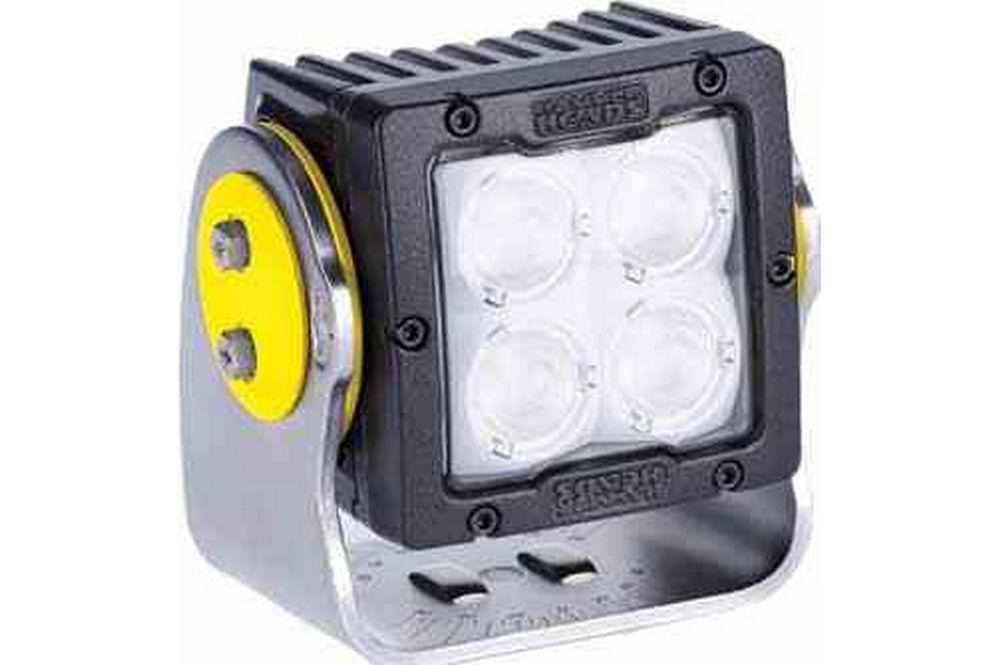

|LED-VD-10WSA-40 Dimmable High Output LED Light||LED-VD-10WSA-40 Series Features|
|Lamp Type: CREE XL-L2Â® LED||Automatic Current Sensing and AdjustingÂ|
|Dimensions: 5.02"-LÂ 5.20"-HÂ Â 3.98"-D||Active Heat Management|
|Watts: 40||AmbientÂ OpÂ Temp -40Â°C to +80Â°C|
|Led Drive %: 90%||IP69K High Temp High Pressure Wash Down|
|Voltage:Â Universal Voltage 11-65V DC||EMC/EMI CISPR 25 Class 3 Rated|
|Beam Spread: 10Â° Spot, 40Â° Flood, 60Â° Flood, 30Â°/60Â° Elliptical||304 Stainless Steel Mounting Hardware|
|Mounting: Flat Surface 304 SS Bracket - 360 Degree AdjustableÂ||Shock Dampening Mounting System|
|Wiring: Gold Plated Deutsch IPD / LADD DT04-2P connector||PWM Dimming via Control Wire|
|Amps: 3.34 (on 12 volts) - 1.67 (on 24 volts)||Â|
|LED Light Color: White||Â|
|LED Life Expectancy: 50,000 hours||Â|
|Dimmable: Yes - Dimmable via voltage|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black|
|Weight: 4.85 Lbs|
|Buy American Compliant The LED-VD-10WSA-40 LED Light offers high output from a compact form factor and is ideal for use in mining applications as well as heavy equipment, hunting, boating, vehicle, military, law enforcement and industrial manufacturing uses.Â A 3,680 lumen output, 50,000 hour service life andÂ 12-24 volt compatibility providesÂ operators with a rugged and powerful LED alternative to 300 watt halogen lamps that uses little power and can withstand rugged use and abusive mining conditions.Â The LED-VD-10WSA-40 high output LED light from Larson Electronics produces 3,680 lumens of high intensityÂ light while drawing only 40 watts @3.34 amps from a 12 volt electrical system. Four CREE XM-L2Â® ten watt LEDs producing 920 lumens each are arranged in rows and paired with high purity optics to produce a well focused 10Â° spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 40Â° or 60Â° beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. LED-VD-10WSA-40 lights are ideal replacements for fragile and hot running 300 watt halogen lamps. They offer soft start technology, a small profile, low power requirements, high durability and a shock dampening mounting system that makes these LED light emitters a superior lighting solution for rough applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: military, industrial manufacturing, machine visioning, mining,Â security and law enforcement, boating,Â vehicles and commercial structure illumination.|
|Dimming: The LED-VD-10WSA series of LED lights are dimmable via buck and boost style dimmers, such as our . These type of dimmers are designed to work inline and allows operators to increase or decrease the brightness of lights. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or â€œduty cycleâ€ accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LEDâ€™s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage: The drivers in this unitÂ provideÂ the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LED-VD-10WSA series light bars can operate on current ranging fromÂ 11 to 65 VDC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: As well as unparalleled heat control, the LED-VD-10WSA series of LED lights from Larson Electronics also offer IP69K rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40Â°C to +80Â°C, are waterproof to three meters, can withstand high pressure and high temperature wash downs, and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. TheÂ CREE XM-L2Â® LEDs help these units achieve up to 60Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. We recommend these LED lights for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt,Â and abusive working conditions are encountered. Mounting: Each unit is equipped with an innovative trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 360 degrees of vertical movement. The LED light head is secured to the mounting bracket withÂ shock dampening rotating inserts. The insert provides precision aiming down to 1Â° while providing increased longevity to the LED fixture. To vertically adjust the unit after mounting, the user simply loosens theÂ screws located on either side of the unit, moves it into the desired position, then retightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning. The stainless steel trunnion bracket has preset angles marked in 5Â° intervals, allowing operators to precisely aim each fixture.Â Note: The LED-VD-10WSA series feature gold plated DT connectors to provide better conductivity. Most Larson Electronics LEDP5W-30, LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.Â Applications for the LED-VD-10WSA include but are not limited to mining, dump trucks, construction machinery, cement mixers, and car washes.|
