LED Light Emitter - 10 Watt Single LED - 225'L X 25'W Beam - 100lbs. Magnetic Mount - 800 Lumen

LARSON ELECTRONICSSKU: PL3-LED10W-1S-M
filler

Price:
Sale price$334.00

Description

Specifications / Additional Information
LED10W-1S-M LED Light LED10W-1S Features
Lamp Type: Seoul Z-Power LED Seoul Z-Power LED
Dimensions: 2"W  2"-H   2.5"-Depth Low Amp Draw
Watts: 10 Small Size
Led Drive %: 80% 50,000 Hour Service Life
Voltage: 9-48 VDC  Shock Vibration Resistant
Spot Beam: 225`L x 25`W  Ambient Op Temp -45C to 85C
Flood Beam: 45`L x 40`W Pin-compatible with the HV9910B
Lighting Configuration: 10° Spot or 35° Flood Multi-Unit Connectable
Mounting: Magnetic Mount CE Certified
Wiring: 16` Coil Cord Cigarette Plug EN55015 EMI
Amps: 1/4 (on 12 volts) EN61547 EMS
Lumens: 900 EN62471 Photobiological Safety
LED Light Color: 6000K
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens Toll Free: 1-800-369-6671
Weight: 13 Ounces Intl: 1-903-270-1187
Housing Colors: Black or White E-mail:
' Product Overview '

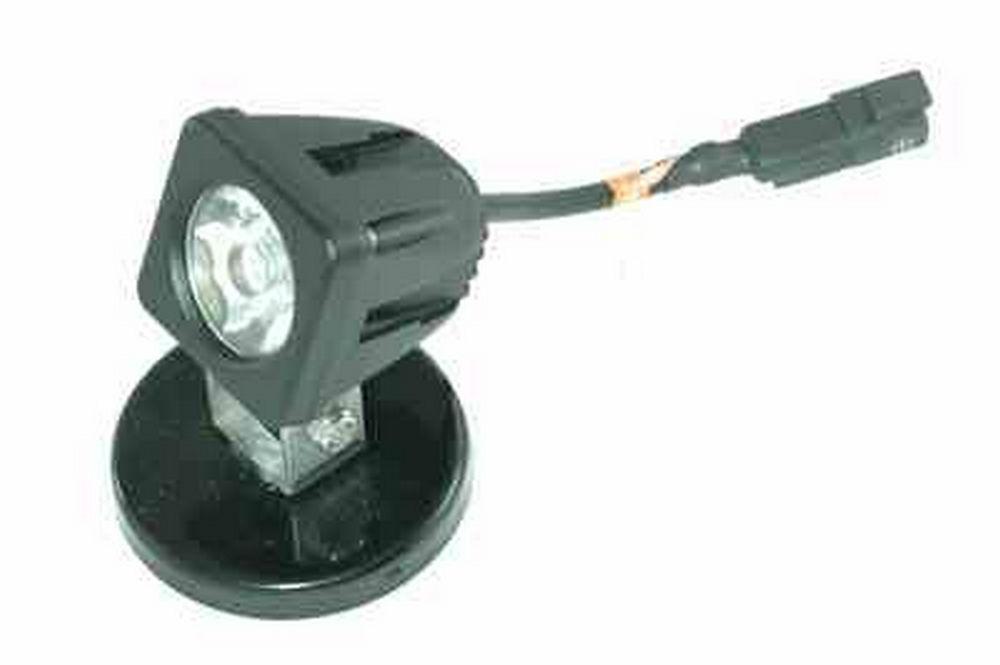

Buy American Compliant The LED10W-1S-M LED Light is ideal for a wide variety of uses including equipment, vehicle, military, law enforcement and industrial manufacturing applications. This ultra compact LED light produces a 900 lumen output with low voltage and amp draw, 50,000 hour service life and 9 to 48 volt compatibility. This unit includes a versatile magnetic mounting system that provides convenience and secure attachment to vehicles, equipment and any flat metallic surface.   The LED10W-1S-M LED light emitter from Larson Electronics produces 900 lumens of bright light while drawing only 10 watts @1/4 amp from a 12 volt electrical system. A single Seoul Z-Power 10 watt LED producing 900 lumens is combined with high purity optics to produce a 10 degree spread spot beam approximately 250’ long by 40’ in width. We also offer floodlight versions with a 35 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as work lights. This particular unit is ultra compact at only 2 inches wide by 2 inches tall, by 2.5 inches deep, which makes it ideal for applications where electrical power and mounting space is at a premium. Another unique feature of this LED light is that the side brackets enable the operator to connect multiple units together.  Thus, operators can combine any number of units to achieve the power and dimensions required for most any application. The LED10W series LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. This light is equipped with a 100lbs grip magnetic mount base and 16 foot coil cord ending in a cigarette plug connector. This magnetic base allows fast and easy setup of this light on vehicles and equipment and will hold the fixture in place at speeds up to 80mph provided the mount is properly affixed and secure.
This photo shows an open field illuminated only by ambient light at approximately 9:00 pm`. This photo shows the LED10W-1S-M, spot, illuminating that field. The beam reaches the object in the distance positioned at 280 feet. This particular photo shows the LED10W-1S-M in flood configuration. Notice a more abundant amount of light, closer to the fixture.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Seoul Z-Power Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LED10W series LED lights can operate on current ranging from 9 to 50VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical. Durability: The LED10W series of LED light bars from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand frigid temperatures, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Seoul Z-Power LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,000 hours of use. Mounting: The 100 lbs magnet mounting design on the LEDLB-8E-M allows for easy fixture placement and removal. This mounting system includes a 16 ft coiled power cord with a cigarette plug connector which makes this unit ideal for vehicle and equipment lighting applications where the unit can simply be attached or removed as needed. Please note, the magnetic base on this unit increases the units overall height. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB, LEDP10W and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
LEDP10W-1S-M 35° Flood Beam (Opt) LEDP10W-1S-M 10° Wide Spot Beam (Stnd)
