Infrared LED Strobe Light - 3 watts - Quad Flash – IR 850/940nm

LARSON ELECTRONICSSKU: PL3-LED10W-1SS-IR
filler

Price:
Sale price$642.00

Description

Specifications / Additional Information
LED10W-1SS-IR Features
Lamp Type: LED IP68 Rated Waterproof
Dimensions: 2"-Wide, 2" Height 2.5"-D 850nm or 940nm Infrared
Lamp Weight: 1.2 lbs 9-50 Volts DC
Voltage: 9-48 VDC Spot Beam: 125`L x 25`W Flood Beam: 45`L x 40`W Strobe or Constant On
Lumens: 800- IR Equivalent 100Lbs Grip MAgnetic Base
Lighting Configuration:10° Spot or 35° Flood
Mounting: 100 Lbs Grip Magnetic Base
IR Wavelength: 750Nm, 850nm or 940nm
Ambient Operating Temp: -45 degrees C to 85 degrees C
LED Lamp Watts: 3 Watts
Wiring:  Deutsch Connector-Control Box-Cigarette Plug
Lamp Life:  50,000+ Hours
WarrantyYES
CE Certified EN55015 EMI EN61547 EMS EN62471 Photobiological Safety

' Product Overview '
Made in the USA The LED10W-1SS-IR Infrared LED Strobe Light from Larson Electronics is multi-voltage capable and equipped with a 100 lbs grip magnetic base and cigarette plug connector to produce a portable and easily deployed IR light source. 750Nm, 850Nm or 940Nm versions. This ultra compact, high powered infrared LED strobe light projects an 750Nm, 850nm or 940nm infrared light. Included with this IR LED light is 1 high-powered 3 Watt LED emitter potted into an aircraft grade aluminum chassis that is designed to protect the LED and dissipate heat. Even after running for a several hours, the lenses are only mildly warm. This infrared LED strobe light can be powered on DC voltage ranging from 9-48 Volts DC and is configured to flash 4 times per second (quad flash).
Click Photo to Enlarge

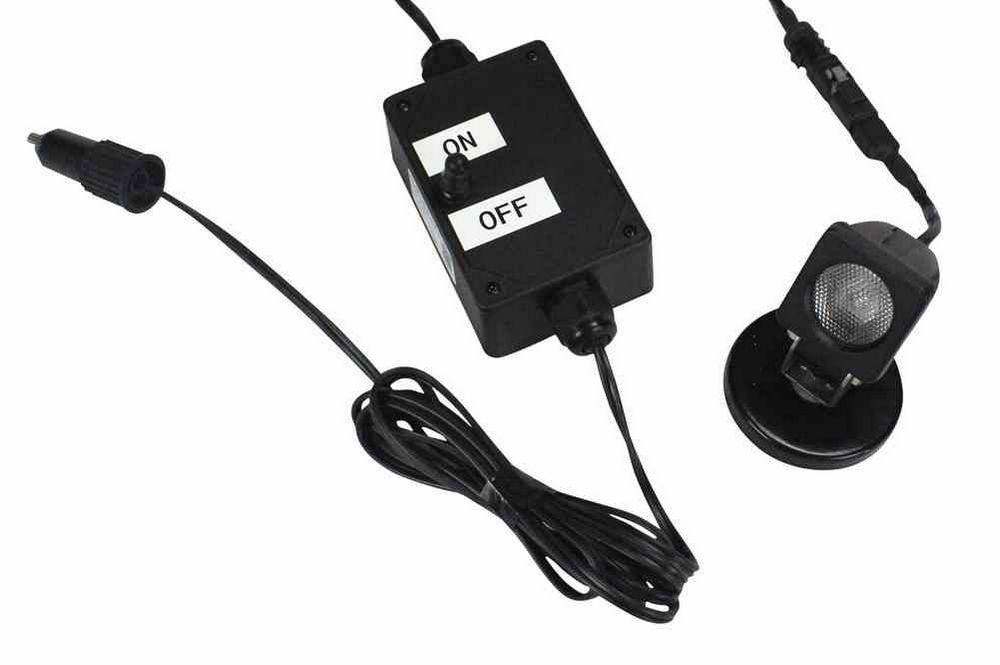

This fixture is 2 inches wide by 2 inches tall, by 2.5 inches deep and draws only 1/4 amp on 12 volts and puts out an infrared beam that reaches 125 feet. Mounting hardware includes a 100 pound grip 3.25 inch magnetic base, anti-vibration bushing and adjustable positioning brackets, resulting in a total unit height of five inches. The rugged aluminum extrusion housing on this unit provides optimum durability and heat dissipation. The IP67 ingress protection rated housing makes this IR LED strobe light impenetrable to dust and submersible under water up to 3 meters. The unbreakable polycarbonate lenses are housed by a 6061 aluminum face plate which doubles as a radiant heat sink to melt away snow and ice in frigid conditions. These LED lights are certified to 6G RMS with vibration tests to ensure performance in high impact conditions. The light terminates with a short pigtail with Deutsch connector. An included 8 foot straight cord connects the light to the control box and another 8 foot straight cord terminates in a cigarette plug. The control box features a 3 position toggle switch, for on, off and beaconing mode. Thus, this LED IR strobe light can be used for continuous on or flashing mode with a toggle switch change. This light can also be ordered in 10 degree spot mode for a longer, tighter more concentrated light beam or 35 degree flood mode to produce a wider beam spread closer to the unit. Voltages: This unit is multi-voltage capable and automatically sense and adjusts incoming current to the correct levels. As a result, this unit can be operated with voltages of 9 to 48 VDC without additional hardware.
