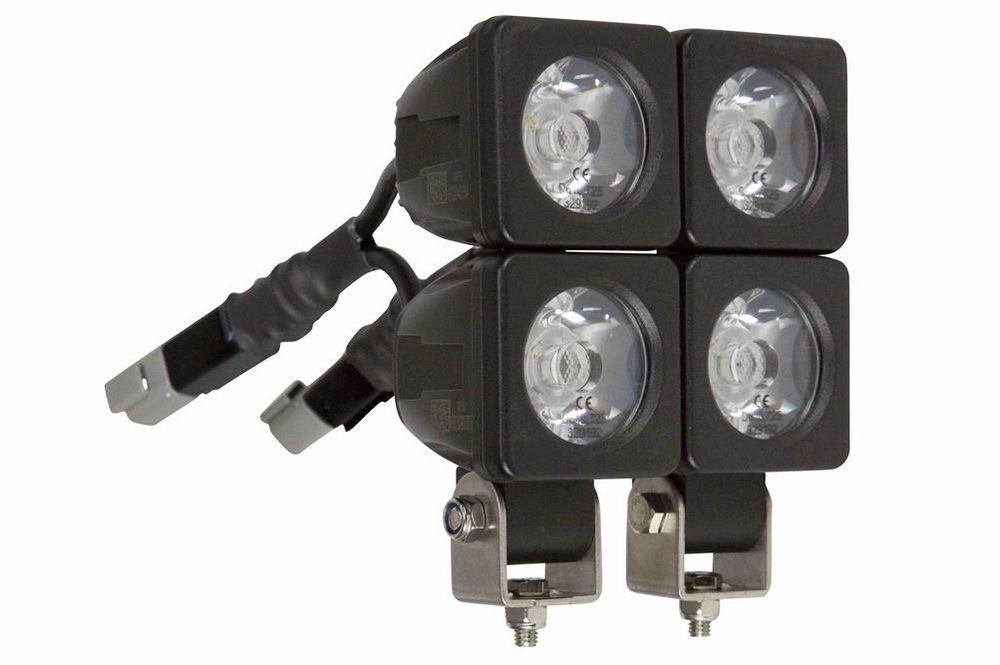

12 Watt Infrared LED Light Emitter Bar - (4) 3 Watt LEDs - Aluminum Housing - 500'L X 50'W Spot

LARSON ELECTRONICSSKU: PL3-LED10W-4R-IR
filler

Price:
Sale price$1,738.00

Description

Specifications / Additional Information
LED10W-4R-IR LED Light Bar LED10W-4R-IR LED Features
LEDs: (4) Edison Edixeon 3 Watt LED Emitters Edixeon® 3 Watt Infrared LED Emitters
Dimensions: 6"-L  3.13"-W  4.13"-H LEDs Driven At 80%
Watts: 12 -40 C~ +80C Operating Temp Range
Voltage: 9-50 VDC 70% Lumen Retention @65,000 hours
Spot Beam: 500`L x 50`W IP68 Rated Waterproof to 3 meters
Weight: 3.1 Lbs CE Certified
Lighting Configuration: 10° Spot or 35° Flood EN55015 EMI
Mounting: Adjustable Trunnion EN61547 EMS
Wiring: Deutsch IPD / LADD DT04-2P connector EN62471 Photobiological Safety
Amps: 1.0 (on 12 volts)  0.5 (on 24 volts)
Lumens: 720
LED Light Color: 750NM, 850NM, 940NM
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90% Toll Free: 1-800-369-6671
Materials: Aluminum Housing, Polycarbonate Lens Intl: 1-903-270-1187
Housing Colors: Black or White E-mail:
' Product Overview '
Buy American Compliant The Larson Electronics LED10W-4R-IR Infrared LED Light Emitter offers high light output in a light weight, durable, compact 4" square unit combined with versatile mounting and power options. This IP68 rated LED light is waterproof to three meters and produces an infrared light beam that can only be seen through the use of night vision goggles. 750Nm, 850Nm, 940Nm versions available. This IR LED light draws 1 amp at 12 volts, can run on any voltage from 9 to 50 volts, provides a rugged lighting solution that is ideal for use in industrial and commercial applications such as machine vision system lighting, security illumination and vehicle lighting. The LED10W-4R-IR LED light emitter from Larson Electronics produces a 500` long by 50` wide light beam with light output in the 750NM, 850NM, or 940NM range while drawing only 12 watts @1 amps from a 12 volt electrical system. Four Edison Edixeon 3 watt LEDs producing 180 lumens each are paired with high purity, 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread that is ideal for work and area lighting applications. These LED light emitters are IP68 rated and waterproof to three meters, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and conditions. These units incorporate a yolk type trunnion mount fitted with a single mounting stud that allows full adjustability and simple mounting. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED boat lights utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels ranging from 9 to 50 VDC. These LEDLB series light bars can operate on current ranging from 9 to 50 VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical.
LED10W-4R-IR 35° Flood Beam (Opt) LED10W-4R-IR 10° Spot Beam (Stnd)
Durability: The LED10W-4R-IR LED light from Larson Electronics offers IP68 rated construction that is designed to withstand tough environmental and operating conditions. These units can operate in temperatures ranging from -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum, the hardware is stainless steel and the lenses are unbreakable polycarbonate. The Edison Edixeon LEDs offer inherent LED resistance to shocks and vibrations, contributing to these units 15.6Grms rating of vibration tolerance. These LED10W series light bars are ideal for use in industrial and commercial settings as well as on vehicles and watercraft. Mounting: These LED10W LED light bars feature a smaller profile and lighter weight than our LEDLB-E extreme series lights, making them ideal for use in locations where traditional lights cannot fit or would block other mounted equipment. The LED10W-4R-IR is suspended within a form fitting trunnion (yolk-type) mount. This trunnion mount has two knurled knobs that can be loosened, allowing the LED light to be adjusted and re-tightened to lock the light into any desired position once mounted. A single stainless steel stud protrudes from the bottom of the mount, enabling the operator to install the light using a simple through-hole mount, allowing the unit to be  installed anywhere a 1/2-inch hole can be drilled. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
