LED Light - 3 Watt - 2" square - Stud Mount - Color LEDs - 15' 16/2 SOOW Harness w/ Blunt Cut End

LARSON ELECTRONICSSKU: PL3-LED3WC-15C
filler

Price:
Sale price$410.00

Description

Specifications / Additional Information
LED3WC-15C LED Spotlight Approvals/Ratings:
Lamp Type: Seoul Z-Power® LED Seoul Z-Power® LED
Dimensions: 2"W x 3.2"H x 2.5"Depth (Head Only) Low Amp Draw
Watts: 3 Multi-Unit Connectable
Led Drive %: 80% 50,000 Hour Service Life
Voltage: 9-48V DC Shock Vibration Resistant
Lighting Configuration: 10° Spot or 35° Flood Ambient Op Temp -45°C to 85°C
Mounting: Suction Cup Base/Double Ball Joint Mount Pin-compatible with the HV9910B
Wiring: 15` 16/2 SOOW Harness w/ Blunt Cut End & Weatherproof Deutsch Connector CE Certified
Amps: .8 (on 12 volts) EN55015 EMI
Lumens: 900 EN61547 EMS
LED Light Color: Amber, Red, Blue, Green or White EN62471 Photobiological Safety
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Weight: 1 lb. 4 Oz.
Housing Colors: Black or White
' Product Overview '

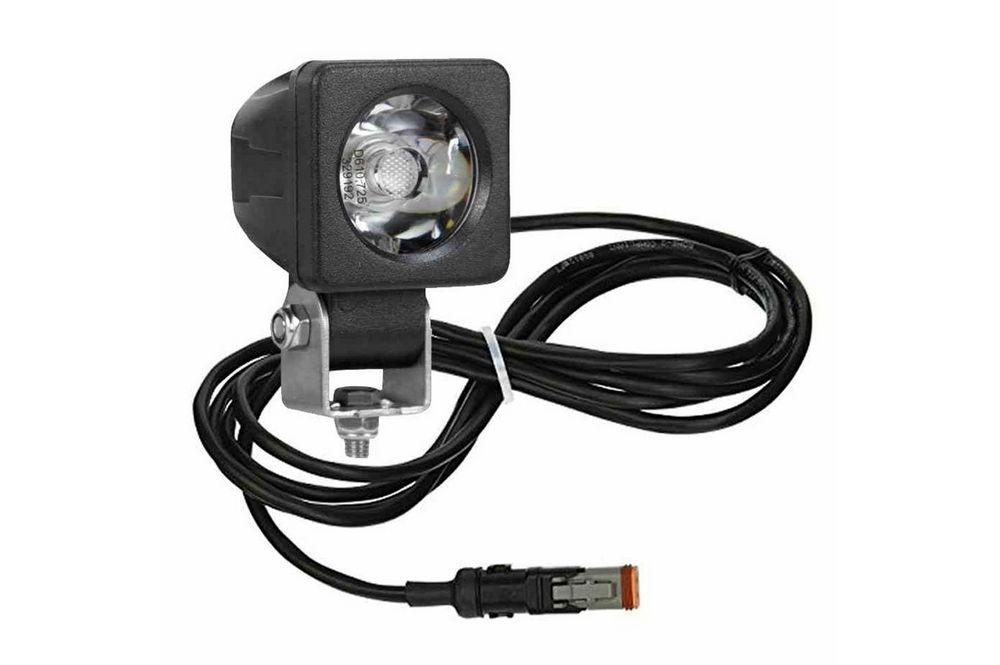

Buy American Compliant The LED3WC-15C from Larson Electronics is an ultra compact, high powered 3 watt LED spotlight produces 180 lumens, projecting a beam 125 feet long and 25 feet wide in spot configuration. This light includes 1 high powered 3 Watt LED spotlight potted into an aircraft grade aluminum chassis that is designed to protect the LED and dissipate heat. Even after running for a several hours, the lenses are only mildly warm. While the LED3WC-15C is a popular 10 Watt white LED light, this 3 watt LED light is designed specifically to produce colored LED light, including green, blue, red and amber. The value in this LED fixture is in the power and form factor. At 2 inches wide by 2 inches tall, by 2.5 inches deep, this fixture draws only a 1/4 amp on 12 volts and puts out a beam that reaches 125 feet. You can mount these just about anywhere traditional lights won`t fit. Ideal for boats, wreckers, utility vehicles and construction equipment for work area illumination. We originally built these to meet the safety needs of forklifts in beverage industry, but there are many applications for colored LED lights. We also offer an accessory inline flashing module which enables the operator to control whether the LED light has a steady light or a flashing light output. Another unique feature of this LED light is that the side brackets enable the operator to connect multiple units together. Thus, operators can combine any number of units to achieve the power and dimensions required for most any application. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Wiring: The LED3WC-15C is equipped with a 15` 16/2 SOOW harness with a blunt cut end. A weatherproof deutsch connector on the other end allows the harness to be connected to the light. Mounting: Suspended on top of an adjustable u-bracket, this LED light can be adjusted and tightened into any position to suit your application. A single stud protrudes from the bottom of the u-bracket mount, enabling the operator to install the light using a simple through hole mount. In other words, the light can be installed anywhere a 1/4 inch hole can be drilled. The LED3WC-15C is equipped with a single 3 watt LED, producing 180 lumens, while drawing less than 1/4 amp, due to advanced electronic drivers. The LED light has a 50,000 hour life span and accepts input voltage ranging from 9 to 32 volts DC. This includes 12 volts or 24 volts. Durability: The rugged aluminum extrusion housing provides optimum durability and heat dissipation. IP68 ingress protection rated housing and sealed lexan lens makes this LED light impenetrable to dust and submersible under water up to 3 meters. The unbreakable polycarbonate lenses are housed by a 6061 aluminum face plate which doubles as a radiant heat sink to melt away snow and ice in frigid conditions. These LED lights are certified to 6G RMS with vibration tests to ensure performance in high impact conditions.
