LED Strobe Light - Permanent Mount - 18 LED Beacon - 50,000 Life Hours - 252 Lumens - Inline Switch

LARSON ELECTRONICSSKU: PL3-LEDB-4-12C-ILS-4C-1227
filler

Price:
Sale price$664.00

Description

Specifications / Additional Information
LEDB-4-12C-ILS-4C-1227 LED Strobing Beacon Features
Lamp Type: LED Strobe 360 Degree Visibility
Dimensions: 2.8"W x 5.2"H Waterproof / Shock Resistant
Lamp Weight: 11 oz IP65 Waterproof
Voltage: 90-305V AC 50/60 Hz and 127-431V DC Triple Strobe Pattern
Lumens: 252 Compact
Lighting Configuration: Strobing Triple Flash
LED Life Expectancy: 50,000 hours
Ambient Operating Temp Range: -40°C to 80°C
Materials: Polycarbonate
Wiring: 12` of 16/2 SOOW Cord between the strobe & inline switch, 4` of 16/2 SOOW between the switch and inline transformer, & 1` of 16/2 SOOW w/ General Area Cord Cap
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
Mounting: Permanent Mount
' Product Overview '

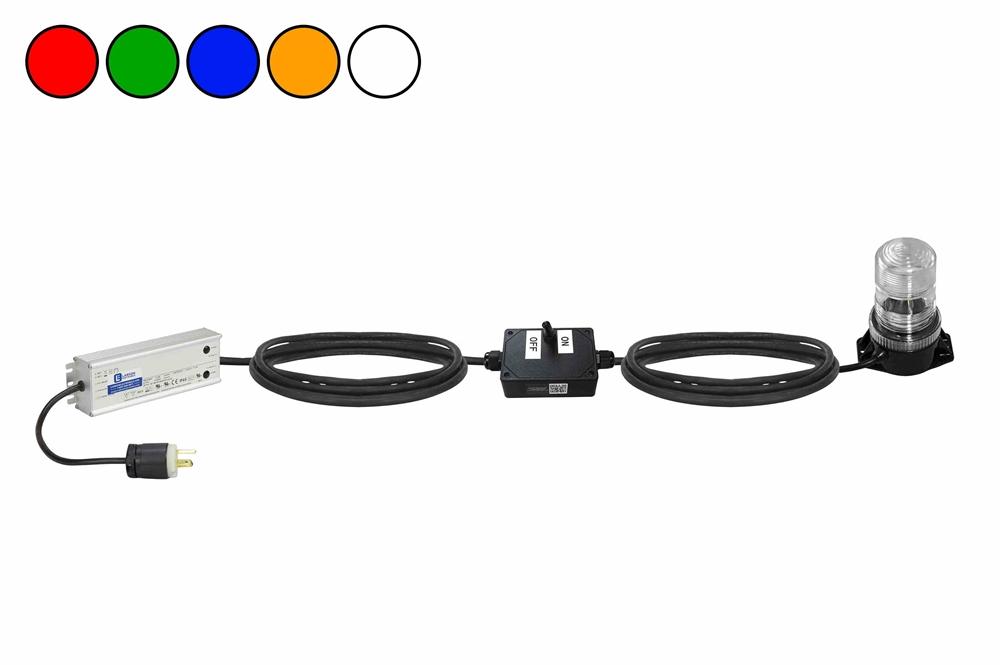

Made in the USA The LEDB-4-12C-ILS-4C-1227 from Larson Electronics is a Permanent Mount LED Strobe Light that produces a triple flash strobe pattern that makes it ideal for work, industrial, utility and security applications. The LEDB-4-12C-ILS-4C-1227 features an inline on/off switch and an inline transformer for operation from standard wall outlets. This LED Beacon offers a choice of colors and is designed to provide a signal with a full 360 degrees of visibility. This compact LED beacon contains an LED lamp assembly that produces 360° of brilliant light without the dark spots or uneveness of traditional incandescent beacon lights. This LED beacon is available in a choice of white, blue, green, amber or red colors, and produces a signal that is visible over a 360 degree range. This unit contains 3 modules, each containing 6 LEDs, that are specially mounted within a clear Fresnel lens to produce a full 360 degrees of signal radiation when the unit is powered on. This waterproof and shock resistant LED beacon produces a triple flash strobe pattern that makes it ideal for work, industrial, utility and security applications. A cast aluminum base and rugged lens provides excellent durability and is resistant to vibration and impacts. This unit is mounted via 3 simple screw holes located in the aluminum base and includes a gasket for secure placement. At only 2.8" Wide x 5.2" High and weighing only 11oz, this LED strobe beacon provides excellent power and visibility in a very compact form factor. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: The LEDB-4-12C-ILS-4C-1227 features an inline transformer that allows it to be powered from standard wall outlets. The LEDB-4-12C-ILS-4C-1227 can be operated on any voltages ranging from 90-305 V AC, 50/60 Hz and 127-431V DC.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This general use LED strobe light is equipped with 12 feet of 16/2 chemical and abrasion resistant SOOW cord between the strobe light and inline switch, 4 more feet of 16/2 SOOW between the switch and inline transformer, and a final 1 foot of 16/2 SOOW that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
