Larson 25 Watt Full Cutoff LED Wall Pack - 2750 Lumens - Replaces 100 Watt Metal Halide Fixtures - 24V DC

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Buy American Compliant

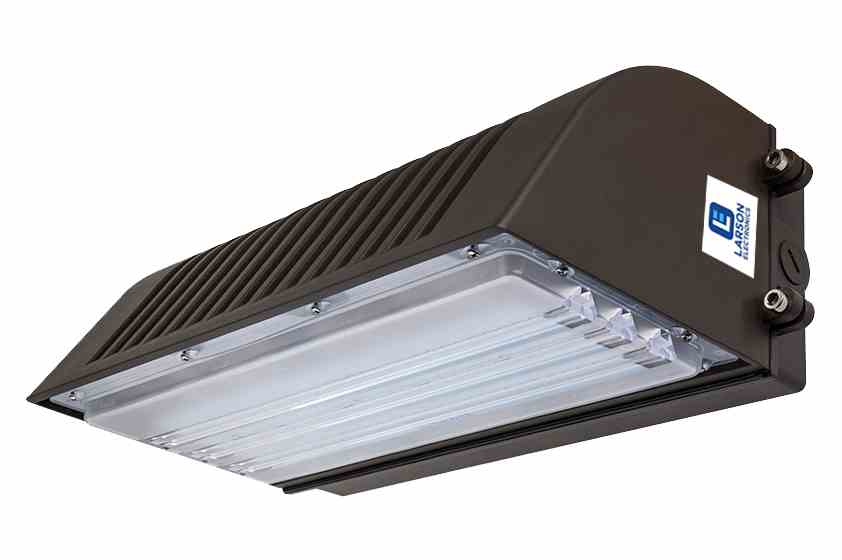

The LEDCWP-250-R2-24VDC from Larson Electronics is a Full-Cutoff LED Wall Pack Light that offers high light output from a compact form factor and is designed to provide a more durable and long lived alternative to halogen and metal halide units. This 25 watt integrated LED light assembly is designed to replace 100 watt metal halide wall packs and produces a wide flood beam without the high heat, fragile construction, or high energy costs of traditional lighting. The LEDCWP-250-R2-24VDC provides 2750 lumens and 50,000 hours of reliability with up to 75% savings compared to traditional 100 watt metal halide wall pack fixtures.
The popular LEDCWP-250-R2-24VDC full-cutoff LED wall pack light from Larson Electronics is designed to replace more fragile and energy consuming 100 watt metal halide fixtures, without the required maintenance or electrical requirements associated with metal halides. This 25 watt LED wall pack assembly consists of an integrated LED assembly paired with prismatic glass to produce a wide light distribution suitable for replacing 100 watt metal halide flood lights. This LED wall pack features a 2-piece hinged housing constructed of die cast aluminum alloy with an injected molded rubber gasket resembling that of traditional style wall pack fixtures. This LED wall pack is designed to withstand demanding conditions and is IP65 waterproof and built to resist the damaging effects of an outdoor environment. This fixture can be used indoors or outdoors as well as in confined spaces without heat buildup. Color temperature options include 3000K, 4000K, 5000K, or 5700K.
The LEDCWP-250-R2-24VDC consists of an integrated LED assembly housed within a waterproof die cast aluminum housing that is powder coated for added durability and resistance to corrosion. The 2-part hinged housing allows for easy wall mount installation and future servicing, and the aluminum design helps heat dissipation and increased LED longevity. The LED lamp assembly is protected by a prismatic glass lens which is secured to the housing with a one piece injected rubber seal. This prismatic glass lens is designed for superior light distribution. A 1/2" NPT knockout provides a secure and sealed power connection point and rounds out this unit's weather resistant construction. The traditional housing design of this LED wall pack helps maintain building aesthetics when replacing existing wall packs.
Full Cut-Off Lighting:
Full cut-off lighting is defined as lighting with zero intensity at or above 90 degrees, and limited to a value not exceeding 10% of the lamp's lumens at or above 80 degrees. Full cut-off lights limit spill and reduce glare.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
100W Metal Halide
40W LED
Savings
Wattage
100 watts
25 watts
-75 watts
Amp Draw @ 24 V DC
4.16 amps
1.04 amps
-3.12 amps
Lamp Life Expectancy
20,000 hours
50,000 hours
+30,000 hours
Operation cost per year - each
$52.56
$13.14
$39.42/yr
Operation cost per year -
$2,102.40
$525.60
$1,576.80/yr
71% in energy savings alone, before cost of maintenance for metal halide fixtures.
This LED wall pack light operates on 24 V DC voltage. The LEDCWP-250-R2-24VDC provides an efficient and highly durable alternative to standard 100 watt metal halide as well as halogen, fluorescent, and compact fluorescent wall pack lights while using only a fraction of the power. This light comes with the following beam configuration options: 10°, 30°, 60°, 110°, Down Light, Type II M, Type III M, Type IV M, Type V S, Tunnel or Wide Flood.
With the LEDCWP-250-R2-24VDC there is no warm up period, the light can be cycled on and off without any reduction in lamp life, there is no glass or filament to shatter or break, and the solid state LED design provides 50,000 hours of operation. The LEDCWP-250-R2-24VDC is ideal for wall pack lighting, wall pack down lighting, upwards lighting, monuments, marinas, docks, warehouses, billboards, parking lots, carports, loading areas, driveways, hotels, garages, commercial buildings, schools, public areas, and security systems just to name a few examples.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Listing: United States - Canada
Lamp Type: LED
Dimensions (Inches): 13.98"L x 8.22"W x 5.05"H
Dimensions (CM): 35.50 L x 20.88 W x 12.82 H
Weight: 6.61 lb
Voltage: 24 V DC
Watts: 25
Total Lumens: 2,750
Luminous Efficacy: 110 Lm/W
LED Life Expectancy: 50,000 hours
Lighting Configuration: 10°, 30°, 60°, 110°, Down Light, Type II M, Type III M, Type IV M, Type V S, Tunnel, or Wide Flood
LED Light Color: 3000K, 4000K, 5000K, or 5700K
Color Rendering Index: 80
Power Efficiency: 85%
Power Factor: 0.95
Amp Draw: 1.04 A @ 24 V DC
Housing Materials: Die Cast Aluminum
Housing Color: Black, Brown, Gray, Dark Gray, or White
Lens Materials: Polycarbonate
Ingress Protection: IP65
Ambient Temp Range: -40°C to +80°C
Mounting: Wall / Flat Surface
Wiring: Pigtail
Wiring Hub: 1/2" NPT Knock-outs
