Larson Low Profile Flush Mount LE Down Light - 10-30VDC - 20 Watt Halogen Equivalent - White or Multi-Color
Larson Low Profile Flush Mount LE Down Light - 10-30VDC - 20 Watt Halogen Equivalent - White or Multi-Color
Sold by: Larson Electronics
Buy American Compliant

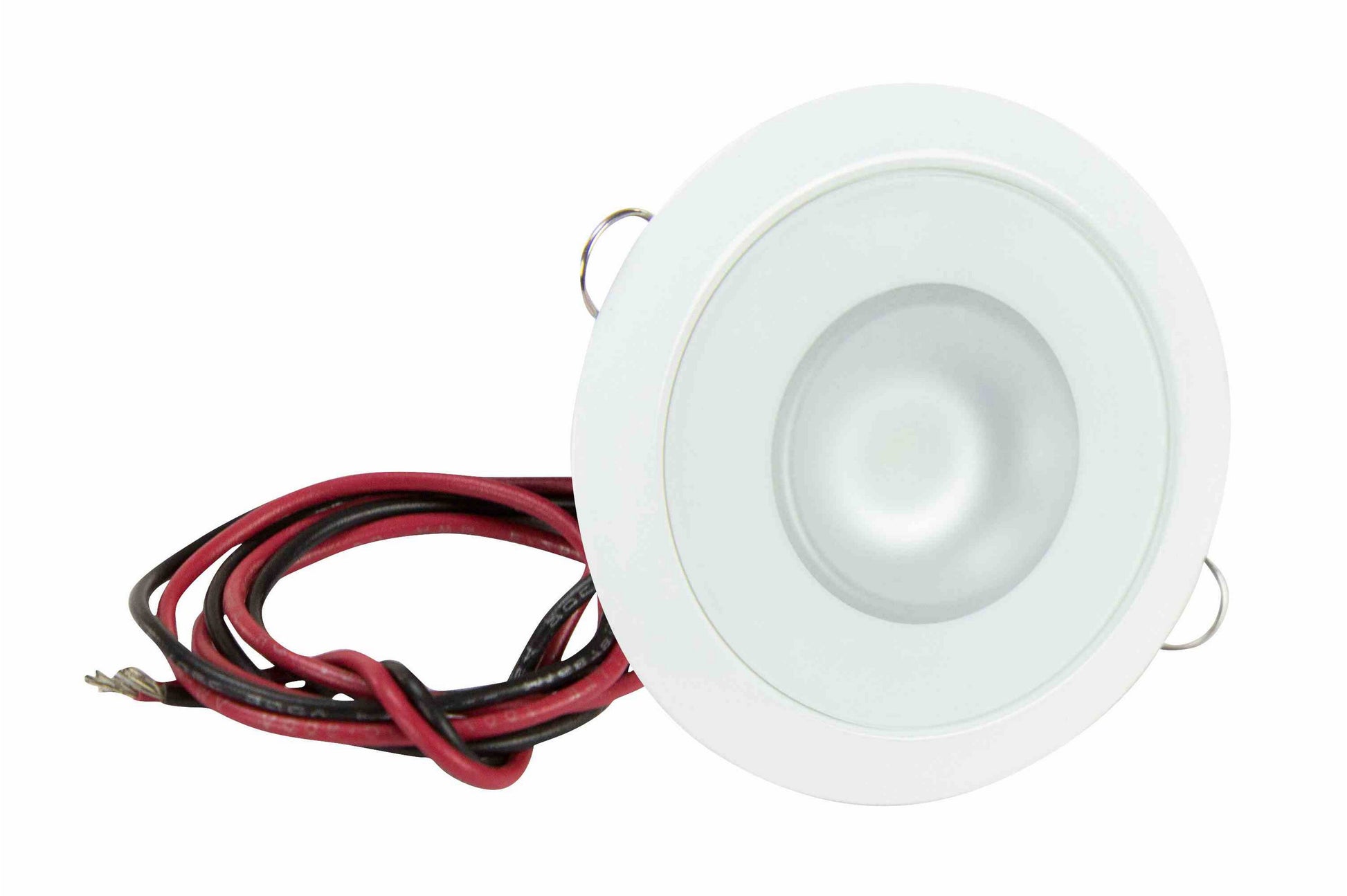

The LEDFM-20W LED Flush Mount Down Light is designed as an extremely efficient and versatile lighting solution for boat walkways, cabin areas, navigation areas, docks and other areas where low voltage is available. This LED down light in white light only configuration produces 350 lumens of pure white light with drawing 7 watts at 580mA and covers approximately 25 feet of area.
This High Intensity, Flush Mount, Overhead LED Down Light is fully potted and housed within a weatherproof brushed aluminum fixture that features a very shallow profile for easy and unobtrusive mounting in tight and space limited areas. These lights feature a white only version or a multi-color capability option including white, red, blue and a combination of the three in multi-color mode. These lights are also dimmable and all color modes and dimming can be controlled from a conventional on and off switch due to an integral intelligent circuitry design. As you toggle the switch on/off, the unit will dim. Toggling the switch again will stop the dimming at the desired level of intensity. These LED down lights are ideal for use in areas where space is limited and low voltage the only power source available.
This image shows a 53` container with no illumination
This image shows the same trailer, this time illuminated with the LEDFM-20W White
This image shows the same trailer, this time illuminated with the LEDFM-20W Red
These units are fully sealed, weatherproof, constructed of aluminum and available with either a brushed metal or white finish. Measuring only 3.25" in diameter and 1†in total thickness, these compact units are designed for flush mounting in either interior or exterior applications. The low 7 watt, 580mA draw of these LED lights makes them ideal for low power applications such as those found at docks and on sailboats where solar power is used to power low level area lighting. These light’s color and dimming modes are controlled by toggling your standard on/off switch quickly to change modes. This method of mode control negates the need for separate controllers or external hardware and simplifies the installation process while adding versatility.
The total width of the LEDFM-20W is 3.75 inches as shown in blue and the cutout width is 1.75 inches as shown in red in the image above.
USCG certified for marine environments and IP67 compliant, these flush mounting down lights are mounted via two spring loaded spring clips for a flush fit. They can be connected to dimmers and rocker switches and provide an ideal lighting solution for closets, walkways, bathrooms, cabins, flying bridges and just about anywhere an efficient and unobtrusive light is needed.
Specifications
Lamp Type:
Dimensions: 3.25" Diameter 1" Depth
Watts: 7
Voltage: 10-30 VDCÂ
Mounting: Flat Surface Flush Mount
Wiring: Coventional 2 Wire Single Ground
Amps: Â 580mA on 12 volts
Lumens: 350
LED Life Expectancy: 50,000 hours
Materials: Aluminum Housing
