|LEDLB-12-IR Infrared LED Light Bar||LEDLB LED Features|
|LEDs: 12 EdixeonÂ® 3 Watt Infrared LED Emitters||EdixeonÂ® 3 Watt LED Emitters|
|Dimensions: 8"-L 5"-H 3.00"-D||LEDs Driven At 80%|
|Watts: 36||-40 C~ +80C Operating Temp Range|
|Voltage: 9-42 VDC||IP67 Rated Waterproof to 3 meter|
|Spot Beam:550`L x 70`W||CE Certified|
|Flood Beam: 120`L x 100`W||EN55015 EMI|
|Weight: 3.3 Lbs||EN61547 EMS|
|Lighting Configuration: 10Â° Spot or 35Â° Flood||EN62471 Photobiological Safety|
|Mounting: Stud Bracket|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|Amps: 3 (on 12 volts) 1.5 (on 24 volts)|
|Wavelength: 750Nm, 850Nm or 940Nm Infrared|
|LED Life Expectancy: 50,000 hours|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black or White.|

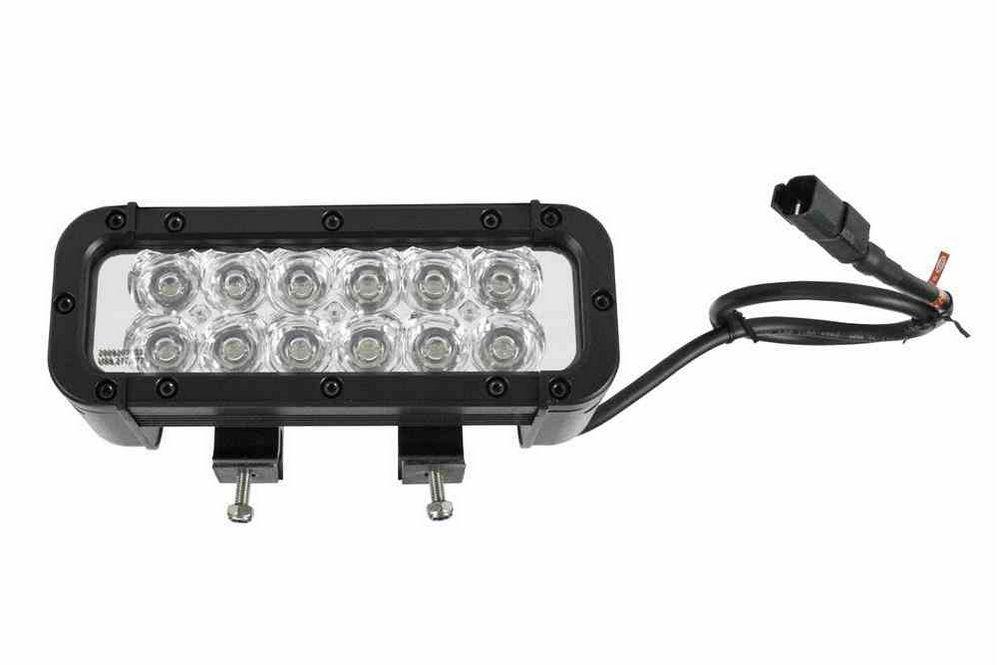

|Buy American Compliant The Larson Electronics LEDLB-12-IR LED Light Bar offers high infrared light output in a light weight, durable, low profile housing combined with versatile mounting and power options. This IP67 rated infrared LED light bar is waterproof to one meter and produces 3,600mW of infrared light while drawing only 36 watts of power at 3 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 42 Volts DC and produces an infrared light beam that can only be seen through the use of night vision goggles. We also offer other wavelength options tha include 750Nm, 850Nm or 940Nm. The LEDLB-12-IR LED light bar from Larson Electronics produces a 550` long by 70` wide infrared light beam with 3,600mW of light in the infrared spectrum while drawing only 36 watts @3 amps from a 12 volt electrical system. Twelve EdixeonÂ® thee watt Infrared Emitters LED`s producing 300mW each are paired with high purity 10Â° degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35Â° degree optics to produce a wider infrared beam spread. We offer 750Nm, 850Nm versions that are ideal for most IR applications and 940Nm versions that require the latest IR equipment for full effectiveness. These LED light bars are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The entire Larson Electronics LEDLB series are constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds.|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison EdixeonÂ® Emitters. The end result is more light and longer LED life of 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels ranging from 9 to 42 VDC. These LEDLB series light bars can operate on current ranging from 9 to 42 VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems donâ€™t always operate with 12 volts and external generators, transformers or inverters are impractical.
