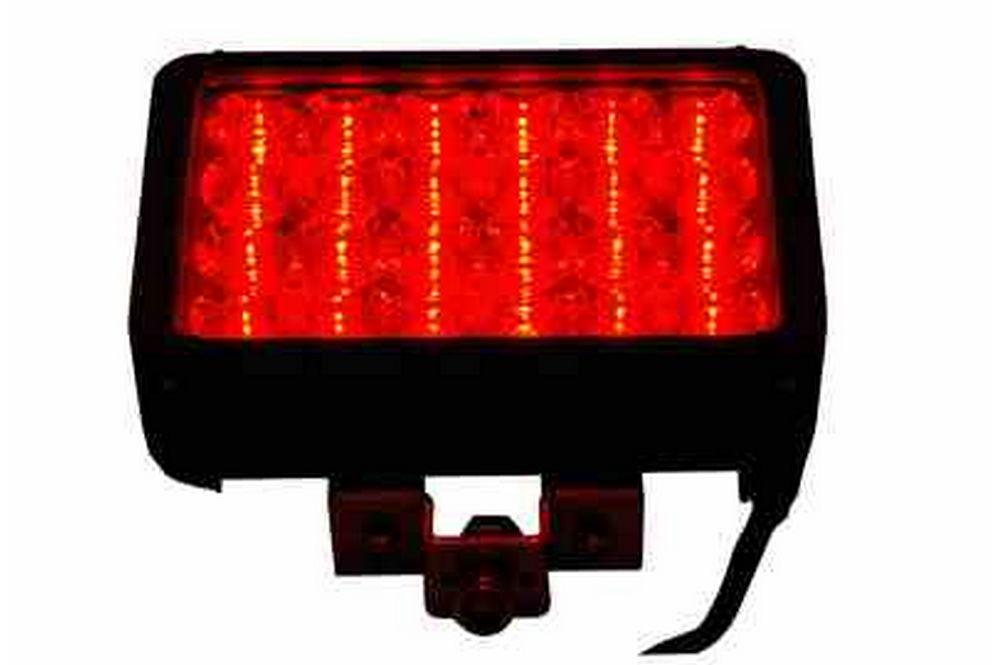

|LEDLB-24-ET-RED LED Light Bar||LEDLB LED Features|
|LEDs: 24 EdixeonÂ® 3 Watt LED Emitters||EdixeonÂ® 3 Watt LED Emitters|
|Dimensions: 8"-LÂ Â 4.7"-HÂ Â 3.00"-D||LEDs Driven At 80%|
|Watts: 72||-40 C~ +80C Operating Temp Range|
|Voltage: 9-42 VDC Spot Beam: 575`L x 70`W Flood Beam: 130`L x 100`W||70% Lumen Retention @65,000 hours|
|Weight: 4 Lbs||IP67 Rated Waterproof to 1 meter|
|Lighting Configuration: 10Â° Spot orÂ 35Â° Flood|
|Mounting:Â Adjustable Trunnion|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|Amps: 6 (on 12 volts)Â 3 (on 24 volts)|
|LED Light Color: RED|
|LED Life Expectancy: 50,000 hours|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black or White|
|Lux Readings 10` Increments: 10` - 4,450Â 20` - 1,175Â 30` - 525Â 40` - 275Â 50` - 182Â 60` - 115Â 70` - 82Â 80` - 62Â 90` - 42Â 100` - 36Â 110` - 30|
|CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.||Â|
|Buy American Compliant TheÂ LEDLB-24-ET-RED LED Light Bar offers high light output in a light weight, durable, low profile housing combined with versatile mounting and power options. This IP67 rated LED light bar is waterproof to one meter and produces 4,320 lumens while drawing only 72 watts of power @6 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 42 volts and is configured to produceÂ red colored light only. The LEDLB-24-ET-RED LED light bar produces a 575` long by 70` wide light beam with 4,320 lumens ofÂ red light that is ideal for low light visibility applications such as hunting and military operations while drawing only 72 watts @6 amps from a 12 volt electrical system. Twenty Four Edison EdixeonÂ® Emitters containing CREE EZBrightÂ® three watt LEDs producing 180 lumens each are paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread approximately 300` long by 280` feet wide. These LED light bars are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The entire Larson Electronics LEDLB series are constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds. The advantage in colored LED light bars lies in the fact that no lenses are required to change the light color. LEDs can be configured to produce light in only a specific color, allowing the full power of the LED to be projected. Traditional colored lights require a colored lens or filter to produce colored light, which reduces the overall light output as some of the light energy is lost to the colored lens.|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison EdixeonÂ® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels ranging from 9 to 42 VDC. These LEDLB series light bars can operate on current ranging from 9 to 42 VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems donâ€™t always operate with 12 volts and external generators, transformers or inverters are impractical.
