LED Light Emitter - 12 Blue LEDs, 12 White LEDs - 72 Watts - No Cable Harness
LED Light Emitter - 12 Blue LEDs, 12 White LEDs - 72 Watts - No Cable Harness
Sold by: LARSON ELECTRONICS
| LED Light Emitter - 24 LEDs - 72 Watts - 800`L X 100`W Beam - 9-42 Volts – Produces Visible White and Blue Light  BUY AMERICAN COMPLIANT |

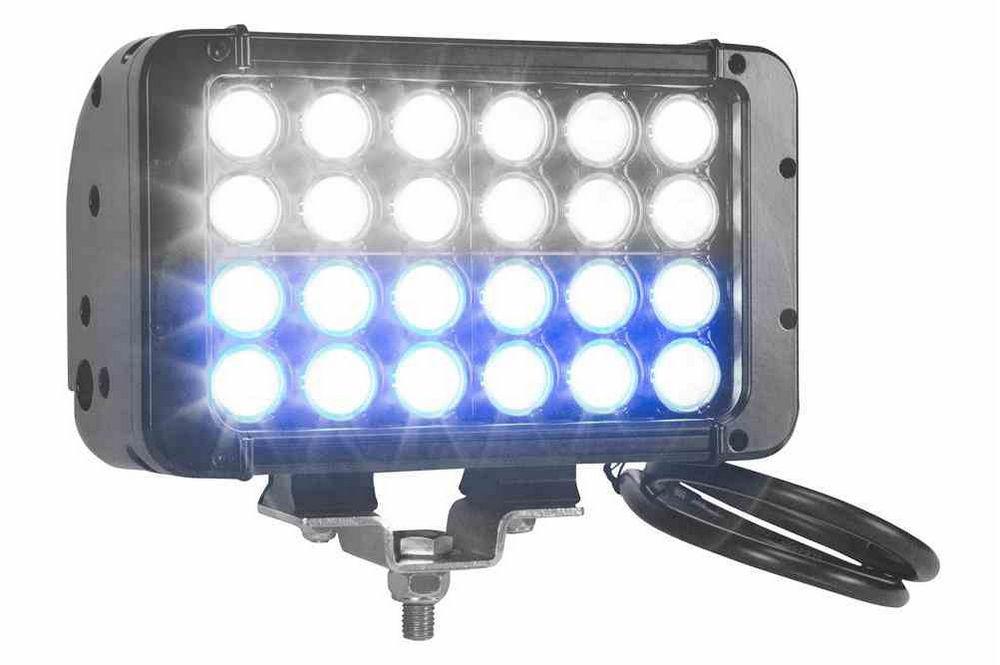

| This LED emitter light contains 24, 3-watt high powered LEDs providing 72 watts of LED light power. The unit uses 12 Blue LEDs and 12 White LEDs to produce the half visible and half blue light beam. This dual LED light emitter bar light runs on any voltage ranging from 9 Volts to 42 Volts. This LED light emitter produces a visible white beam of light that is 800 feet long and 100 feet wide with high luminosity.  This 24 LED emitter light also produces a light beam that is blue in color. This specially configured LED emitter is designed to produce visible white light and visible blue light. The wiring harness includes separate power leads that enable the operator to power the white array (top 2 rows of LEDs) and the blue array (bottom 2 rows of LEDs) separately. The white and blue array share a single ground and use a DTP-06-3S. This enables the operator to switch from visible white light to the blue tracking light without leaving the safety of the vehicle via a 3 position switch.  This LED light emitter bar light runs on any voltage ranging from 9 Volts to 42 Volts.  The LED emitter light bar uses a patent pending LED and reflector combination to provide a high powered, projected light source for vehicles, heavy equipment and security applications. Each LED is combined with its own reflector. The material composition and angle of the reflector, paired with the positioning and angle of the LED create a wide spot beam, which is unusual for a LED array, which typically produce short flood patterns.  This 24 LED light produces a more focused, directed beam.  Each light bar is manufactured with an extruded aluminum housing, machined aluminum mounts and stainless steel hardware for strength, durability and weather resistance.  These LED Light Emitters come standard with aluminum supports with rubber shock isolators. The adjustable, shock insulated mounts are attached to a simple u-bracket type mount.  The LED light can be mounted via a single 3/8 bolt at the center of the bracket that can be passed through a hole in the mounting surface or bracket.  Our optional BC-2 bar clamp mount offers a 3/8 inch center hole to accommodate this mounting option as well. We offer the BC-2 bar clamp mount for more versatile mounting options on horizontal and vertical rails, pipes, conduit, etc.    All of our LED emitter bars are IP 68 rated, being both waterproof and dust proof. This LED light emitter bar is unique because of the patent pending technology that pairs a reflector with each LED. Typically LEDs are mounted against a surface and "glow". This glow is often effective at close range, but the light energy drops off rapidly. By pairing each LED with a reflector, the emitted light energy is concentrated and projected outward, so that the "drop off" in light energy does not occur until much greater distances. Like all reflector technology, the amount of light energy projected is directly related to the shape and material of the reflector, as well as the thickness and composition of the lens. Because this LED light bar clusters the LED/reflectors together, the light pattern is both wide and long. This LED light bar emitter produces a wide spot pattern (or a modified spot pattern) which falls in between a narrow spot and a flood pattern. This particular 24 LED model produces a beam that is 900 feet long and 100 feet wide. This 8 inch wide bar with quantity 24 of 3 Watt LEDs, while drawing only 6 amps on 12 volts (3 amps on 24 volts) and offering a 50,000+ hour life span.  Each light bar is manufactured with stainless steel and aluminum for strength and durability. The light bar measures 8 inches long, 4.7 inches tall and 3 inches deep. SPECIFICATIONS: Length: 8 inches Height: 4.7 inches Depth: 3 inches Weight: 4lbs LEDs: 24 LED Watts: 3 Total Watts: 72 Volts: Operates on 9-42 Volts (includes 12 and 24 volts) Amp Draw: 6 (on 12 volts) 3 amps (on 24 volts) Housing Color: Black or White Ambient operating temperature range: -40 degrees C to 85 degrees C BENEFITS: Low amp draw Instant light output 50,000 hour life Small form factor Visible and Infrared light in the same fixture Aluminum Housing and stainless mounting hardware |
