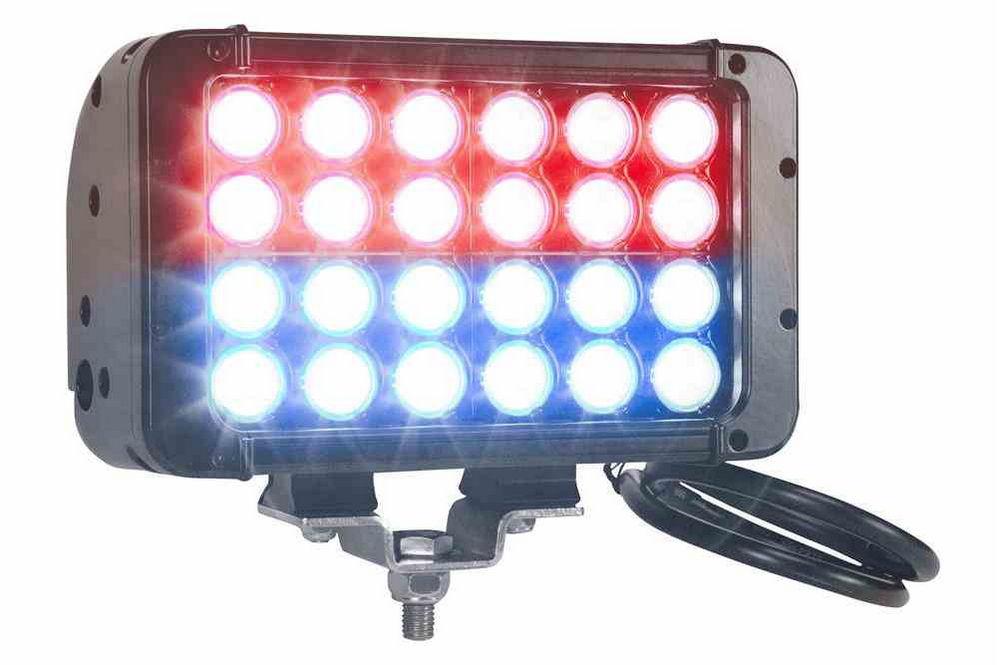

|LEDLB-24-REDBLUE LED Light Bar||LEDLB LED Features|
|LEDs: 24 EdixeonÂ® 3 Watt LED Emitters||EdixeonÂ® 3 Watt LED Emitters|
|Dimensions: 8.25"-L 5.25"-H 3.56"-D||LEDs Driven At 80%|
|Watts: 72||-40 C~ +80C Operating Temp Range|
|Voltage:Â 9-42 VDC||RoHS Compliant|
|Weight: 7.4 Lbs||70% Lumen Retention @65,000 hours|
|Lighting Configuration: 10Â° Spot or 35Â° Flood||LED Chip Op Temp -40C to +125C|
|Mounting: Inverted U Bracket||IP68 Rated Waterproof to 3 Meters|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|Amps: 6 (on 12 volts) 3 (on 24 volts)|
|LED Light Color:Â Red & Blue Combination|
|LED Life Expectancy: 50,000 hours|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black or White|
|3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.|
|Buy American Compliant The Larson Electronics LEDLB-24-REDBLUE LED Light Bar offers high light output and extreme durability combined with versatile mounting and power options. This IP68 rated LED light bar is waterproof to three meters and only draws 6 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. This specially configured LED emitter is designed to produce visibleÂ red light andÂ blue light. The wiring harness includes separate power leads that enable the operator to power the red array (top 2 rows of LEDs) and the blue array (bottom 2 rows of LEDs) separately. The red and blue array share a single ground and use a DTP-06-3S. This enables the operator to switch from visible red light to the blue tracking light without leaving the safety of the vehicle via a 3 position switch. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison EdixeonÂ® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems donâ€™t always operate with 12 volts and external generators, transformers or inverters are impractical.
