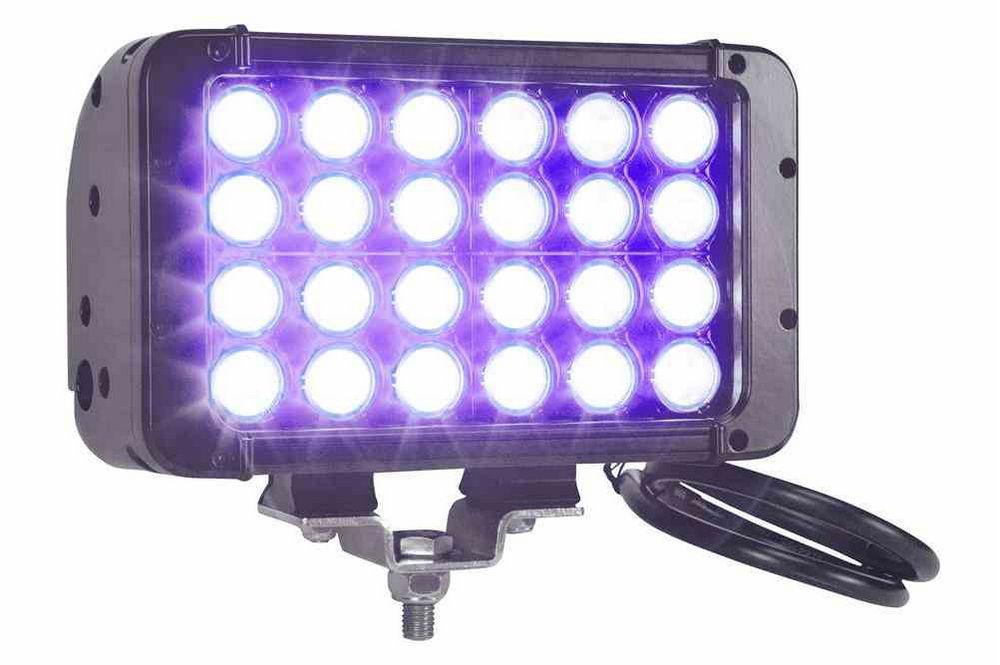

|LEDLB-24E-UV-365NM LED Light Bar||LEDLB LED Features|
|LEDs: (24)Â 5 Watt UV LED Emitters||5Â Watt UV LED Emitters|
|Dimensions: 8.25"-L 5.25"-H 3.56"-D||LEDs Driven At 80%|
|Watts: 120||-40 C~ +80C Operating Temp Range|
|Voltage: 9-42 VDC||RoHS Compliant|
|Weight: 7.4 Lbs||70% Lumen Retention @65,000 hours|
|Lighting Configuration: 10Â° Spot or 35Â° Flood||LED Chip Op Temp -40C to +125C|
|Mounting: Inverted U Bracket||IP68 Rated Waterproof to 3 Meters|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|Amps: 10 (on 12 volts) 5 (on 24 volts)|
|LED Light Color: Ultraviolet (365NM)|
|Intensity (Spot): 300 mW/cmÂ² @ 12"|
|Intensity (Flood): 35 mW/cmÂ² @ 12"|
|LED Life Expectancy: 50,000 hours|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black or White|
|CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.|
|Buy American Compliant The Larson Electronics LEDLB-24E-UV-365NM LED Light Bar offers high light output and extreme durability combined with versatile mounting and power options. This IP68 rated LED light bar is waterproof to three meters and produces 300 mW/cmÂ² while drawing only 120 watts of power @10 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. The LEDLB-24E-UV LED light bar from Larson Electronics produces a UV light beam in the 365 nanometer wavelength spectrum with a 300 mW/cmÂ² intensity while drawing only 120 watts @10 amps from a 12 volt electrical system. Twenty-four five watt LEDs producing 12.5 mW/cmÂ² each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds. This 120 watt ultraviolet LED fixture is a direct replacement for 400 watt metal halide fixtures with 365nm cutoff filters. Unlike metal halide fixtures that produce UV-B and UV-C radiation, the LEDLB-24E-UV-365NM produces UV-A wavelengths only. This results in more useable ultraviolet light and requires no cutoff filters or lenses. The low profile housing makes this UV LED light fixture an ideal alternative to fragile and bulky gas burning fixtures. Â|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison EdixeonÂ® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems donâ€™t always operate with 12 volts and external generators, transformers or inverters are impractical.
