72 Watt Adjustable Magnetic Trunnion Mount LED Light Emitter - 12 Red LEDs, 12 White LEDs - 9-42VDC

LARSON ELECTRONICSSKU: PL3-LEDLB-24ET-M-VISRED
filler

Price:
Sale price$2,501.99

Description

Specifications / Additional Information
LEDLB-24ET-M-VISRED LED Light Bar LEDLB LED Features
LEDs: 24 Edixeon® 3 Watt Emitters - (12) White & (12) Red Edixeon® 3 Watt LED Emitters
Dimensions: 8.25"-L  5.25"-H   3.56"-D LEDs Driven At 80%
Watts: 72 -40 C~ +80C Operating Temp Range
Voltage: 9-42 VDC RoHS Compliant
Spot Beam: 800`L x 100`W 70% Lumen Retention @65,000 hours
Flood Beam: 275`L x 240`W LED Chip Op Temp -40C to +125C
Weight: 8.6 Lbs IP68 Rated Waterproof to 3 Meters
Lighting Configuration: 10° Spot or 35° Flood
Mounting: Inverted U Bracket w/ Magnets
Wiring: 26" 14/3 AWM Whip terminated in Deutsch IPD / LADD DT04-3P connector
Wiring Harness: 20` 16/3 SOOW Wiring Harnesses w/ Deutsch IPD / LADD DT06-3S plugs and blunt cut ends
Amps: 6 (on 12 volts)  3 (on 24 volts) CE Certified
Lumens: 4,320
LED Light Color: White( 6000K) + Red
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '
Buy American Compliant The Larson Electronics LEDLB-24ET-M-VISRED Adjustable Magnetic Mount LED Light Bar offers high light output and extreme durability combined with versatile mounting and power options. This IP68 rated LED light bar is waterproof to three meters and produces a combination of white and red light while drawing only 72 watts of power @6 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 32 volts and provides an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. The LEDLB-24ET-M-VISRED adjustable magnetic mount LED light bar from Larson Electronics produces a combination light beam consisting of white and red light while drawing only 72 watts @6 amps from a 12 volt electrical system. Twenty-four Edison Edixeon® Emitters containing CREE EZBright® three watt LEDs are arranged in rows, two rows of white and two rows of red, and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. This specially configured LED emitter is designed to produce visible white light and visible blue light. The wiring harness includes separate power leads that enable the operator to power the white array (top two rows of LEDs) and the red array (bottom two rows of LEDs) separately. The white and red array share a single ground. This enables the operators to switch from visible white light to the red tracking light without leaving the vehicle via a 3-position switch. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.

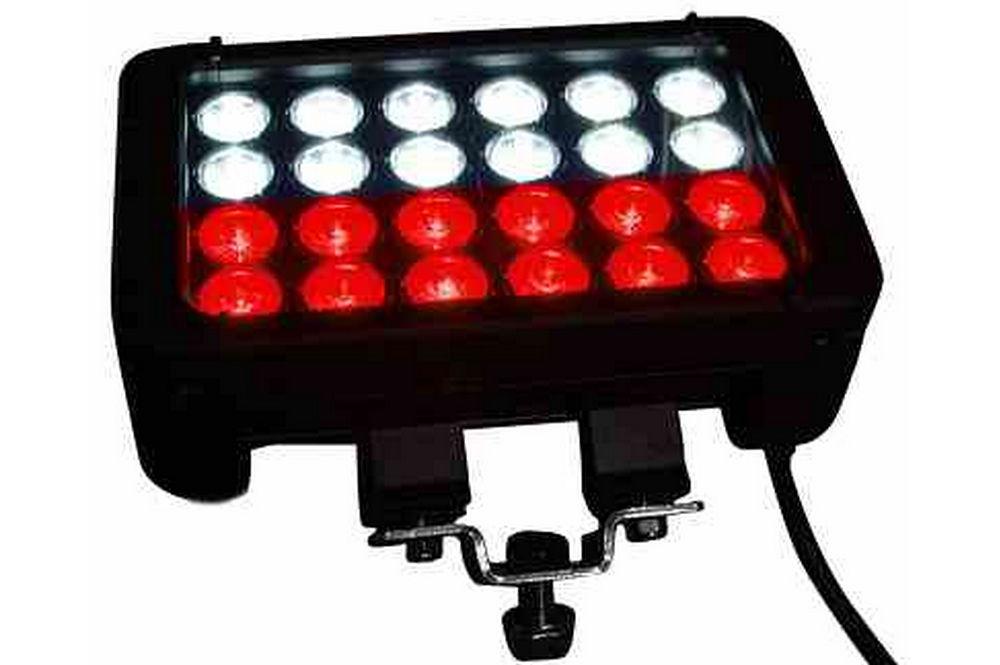

This image shows the top row of (12) white LEDs illuminated. This image shows the top row of (12) blue LEDs illuminated. This image shows both white and red LEDs illuminated.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 32VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical.
LEDLB-24ET-M-VISRED 35° Flood Beam (Opt) LEDLB-24ET-M-VISRED 10° Spot Beam (Stnd)
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and heavier than the standard LEDLB series lights and are nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Adjustable Magnetic Mounting:The dual 100 lbs magnets and trunnion mounting design on the LEDLB-24ET-M-VISRED allows for easy fixture placement and post-placement angle positioning. This means that by loosening 2 thumb bolts located on either side of the light, the operator can adjust the positioning angle of this light 270 degrees. Then he/she would simply have to tighten thumb bolts to lock the angle in place. No tools are required for adjusting angle. This mounting system makes this unit ideal for vehicle and equipment lighting applications where the unit can simply be attached or removed as needed. Please note, the magnetic base on this unit increases the units overall height from 5" to 6.3" total. Note: This combination spotlight is terminated in a Deutsch IPD / LADD DT04-3P connector. The mating connector plug is DT06-3S. A 20` 16/3 SOOW wiring harnesses terminated in DT06-3S connectors and blunt cut ends are included with the light.
