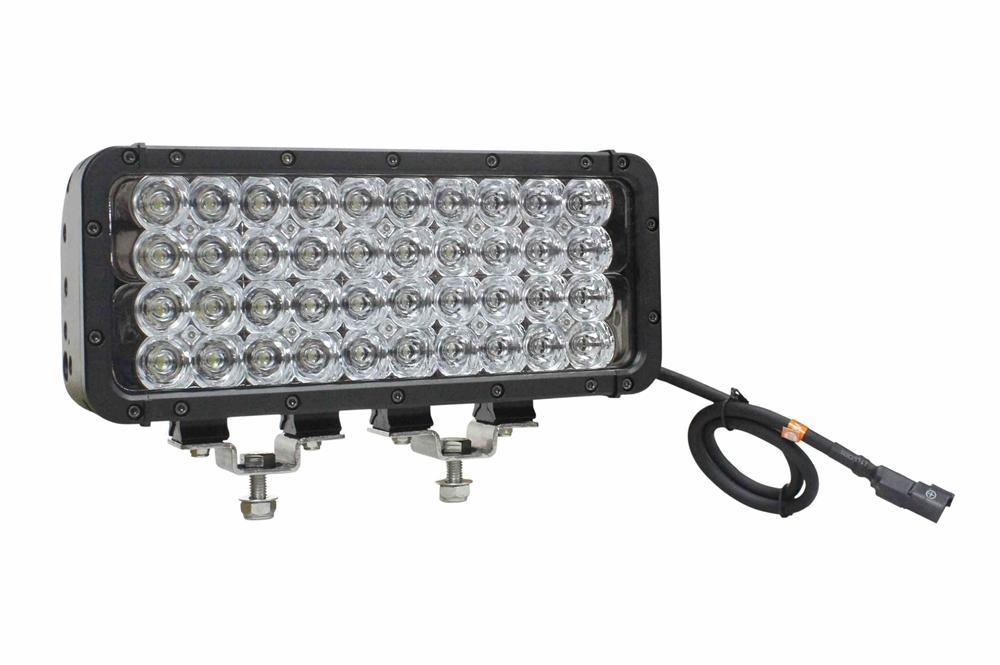

120 Watt Dimmable Infrared LED Light Emitter - Extreme Environment - 9-42V DC - PWM - 850nm/940nm Combo

120 Watt Dimmable Infrared LED Light Emitter - Extreme Environment - 9-42V DC - PWM - 850nm/940nm Combo

$3,914.00 CAD
$3,914.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
LEDLB-40X2E-2XIR-DIMM-PWM LED Infrared Light Bar LEDLB LED Features
LEDs: 40 Edixeon® 3 Watt IR LEDs Edixeon® 3 Watt IR LEDs
Dimensions: 12.5"-L x 5"-H x 3.57"-D LEDs Driven At 80%
Watts: 120 -40°C ~ +80°C Operating Temp Range
Voltage: 9-42 V DC RoHS Compliant
Spot Beam: 1300'L x 180'W 70% Lumen Retention @65,000 hours
Flood Beam: 420'L x 380'W LED Chip Op Temp -40°C to +110°C
Weight: 11 lb IP68 Rated Waterproof to 3 Meters
Lighting Configuration: 10° Spot or 35° Flood Dimming / Tunable via PWM Control Wire
Mounting: Stud Bracket CE Certified
Wiring: Deutsch IPD / LADD DT04-2P connector w/ PWM Control Wire
Amps: 10 (on 12 volts)  5 (on 24 volts)
Lumens: 7200 Lumens
Infrared Wavelength: Top Row - 940nm; Bottom Row - 850nm
LED Life Expectancy: 50,000 hours Special Orders - Requirements
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
LUX measurements: @Lens: 193,300  @1 Meter: 47,400
Housing Color: Black
' Product Overview '
Buy American Compliant The Larson Electronics LEDLB-40X2E-2XIR-DIMM-PWM Dimmable Infrared LED Light Bar offers high 7200 lumen infrared light output and extreme durability for demanding operating conditions. This IP68 rated infrared LED light bar is waterproof to three meters and produces an infrared light beam that can only be seen through the use of night vision goggles. This infrared light bar features infrared output in both 850nm and 940nm wavelengths. The top row of the light bar outputs IR light in the 940nm wavelength while the bottom bar outputs IR light in the 850nm wavelength. The 850nm LEDs have a very slight red glow around the LED emitters when viewed from a certain angle while 940nm versions are completely invisible to the naked eye. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged infrared lighting solution that is ideal for use in commercial and industrial security applications as well as military environments. The LEDLB-40X2E-2XIR-DIMM-PWM infrared LED light bar with dimming capabilities from Larson Electronics produces light in both the infrared 850nm and the infrared 940nm end of the light spectrum depending upon the version selected. Forty Edison Edixeon® 3 watt infrared emitters producing 180 lumens each are arranged in stacked rows and paired with high purity 10 degree optics to produce a tightly focused spot beam 1300' long by 180' wide with limited spread or light spillage. We offer optional floodlight versions of this light that have 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.
LEDLB-40X2E-2XIR-DIMM-PWM 35° Flood Beam LEDLB-40X2E-2XIR-DIMM-PWM 10° Spot Beam
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42 V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical. PWM Control: The pulse width modulation drivers in this unit also provide secondary benefits through the ability to tap into a provided input wire with an external pulse generator and adjust the duty cycle of the current being applied to the LEDs. Thus you can connect an external dimmer, switch or pulse control and adjust the perceived output of the light, effectively causing the light to flash, dim or brighten to the desired levels. Additionally, this method of controlling light output results in a corresponding drop in amperage draw, so if the duty cycle is cut back to 50% there will be a matching 50% reduction in amperage draw. These units are also able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These dimmable light bars can operate on current ranging from 9 to 42V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Mounting: Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light. We also offer a BC-2 bar clamp mounting system for even greater mounting versatility. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
