LED Light - Extreme Environment - 9-42 Volts DC - 550'L X 70'W Spot Beam - 2250 Lumens

LED Light - Extreme Environment - 9-42 Volts DC - 550'L X 70'W Spot Beam - 2250 Lumens

$798.00 CAD
$798.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
LEDLB-5W-6E LED Light Bar LEDLB LED Features
LEDs: (6) 5 W LEDs 5 Watt LEDs
Dimensions: 4.7"L x 3.8"W x 3.3"D LEDs Driven At 80%
Watts: 30 -40°C ~ +80°C Operating Temp Range
Voltage: 9-32 V DC -40°C ~ +80°C Operating Temp Range
Spot Beam: 550'L x 70'W RoHS Compliant
Flood Beam: 120'L x 100'W 70% Lumen Retention @65,000 hours
Weight: 2.65 lb LED Chip Op Temp -40°C to +125°C
Lighting Configuration: 10° Spot or 35° Flood IP68 Rated Waterproof to 3 Meters
Mounting: Stud Bracket CE Certified
Wiring: Deutsch IPD / LADD DT04-2P connector
Amps: 2.5 A
Lumens: 2250
LED Light Color: 6000 K
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90% Special Orders - Requirements
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
Lux-Spot : @Lens: 192,900   @ 1 Meter 17,000
Lux-Flood : @Lens: 186,500   @ 1 Meter 1,930
' Product Overview '

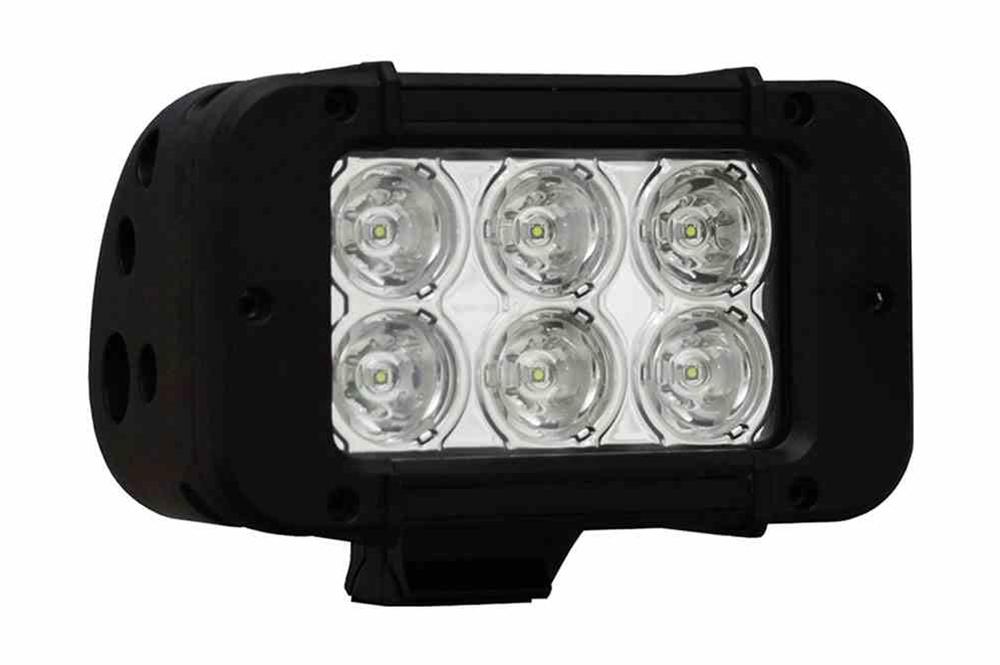

Buy American Compliant The LEDLB-5W-6E from Larson Electronics is a LED Light Bar that offers high light output and extreme durability combined with versatile mounting and power options. This IP68 rated LED light bar is waterproof to three meters and produces 2,250 lumens while drawing only 30 watts of power @ 2.5 amps from a 12 volt electrical system. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. The LEDLB-5W-6E LED light bar from Larson Electronics produces a 550' long by 70' wide light beam with 2,250 lumens of bright light. The LEDLB-5W-6E features (6) five W watt LEDs that each produce 375 lumens for a total lumen output of 2,250 lumens. The LEDs are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.
This image shows a dark street, illuminated by nothing but distant street lamps and suburban lighting. The same street illuminated with the LEDLB-5W-6E, the beam easily reaches the street light over 500' away. Warehouse wall illuminated from approximately 400' away.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 32 V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don't always operate with 12 volts and external generators, transformers or inverters are impractical.
LEDLB-5W-6E 35° Flood Beam LEDLB-5W-6E 10° Spot Beam
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the 'E' part number designation are designed for extreme durability and are larger and heavier than the standard LEDLB series lights and are nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Mounting: Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light. We also offer a BC-2 bar clamp mounting system for even greater mounting versatility. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
