|LEDLB-60E-VIR-AB LED Light Bar||LEDLB LED Features|
|LEDs:Â 30 EdixeonÂ® 3 Watt Infrared LED Emitters Â Â Â Â Â Â Â Â 30 EdixeonÂ® 3 Watt Visible LED Emitters||EdixeonÂ® 3 Watt Infrared LED Emitters EdixeonÂ® 3 Watt Visible LED Emitters|
|Dimensions: 32"-LÂ Â 3"-HÂ Â 3.56"-D||LEDs Driven At 80%|
|Watts: 180||-40 C~ +80C Operating Temp Range|
|Voltage: 9-42 VDC||RoHS Compliant|
|Weight:Â 15.6 Lbs||70% Lumen Retention @65,000 hours|
|Lighting Configuration: 10Â° Spot orÂ 35Â° Flood||LEDÂ ChipÂ OpÂ Temp -40C to +125C|
|Mounting: Stud Bracket||IP68 Rated Waterproof to 3ft|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|Amps: 15 (on 12 volts)Â 7.5 (on 24 volts)|
|Wavelength: Visible: 6000k Infrared: 750Nm, 850Nm or 940Nm|
|LED Life Expectancy: 50,000 hours|
|Optics Efficiency: 90%|
|Materials: Aluminum Housing, Polycarbonate Lens|
|Housing Colors: Black or White|
|CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.||Â|

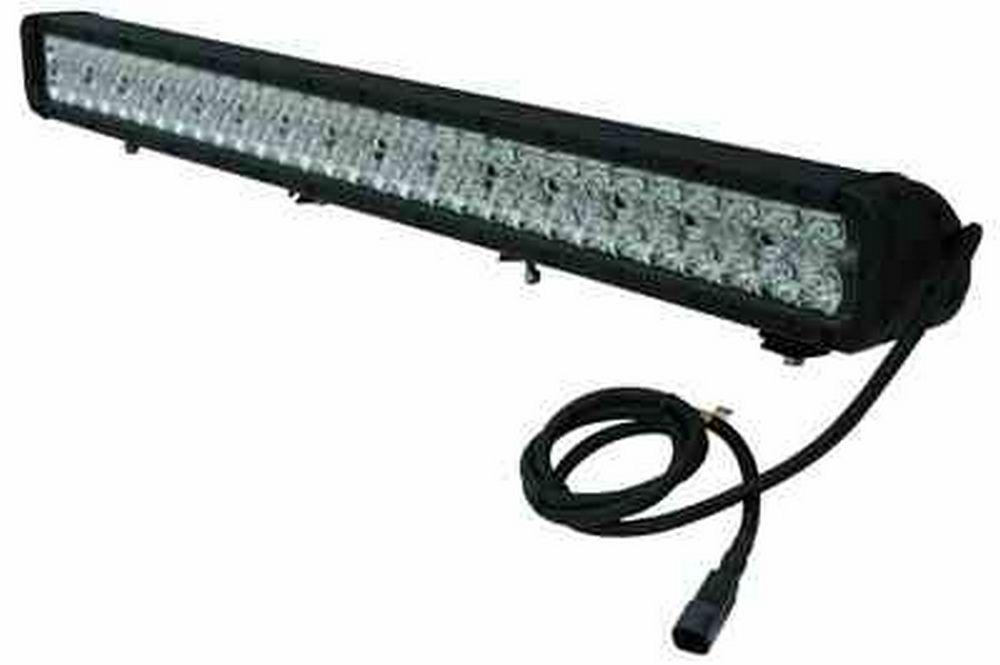

|Buy American Compliant The Larson Electronics LEDLB-60E-VIR-CB visible andÂ infrared LED Light Bar offers high light output and extreme durability combined with versatile mounting and power options. This unit has a distinct pattern of infrared LEDs and visible LEDs, much like a checkerboard, the unit has an alternating pattern of every other LED being infrared. Â This IP68 rated visible andÂ infrared LED light bar produces an infrared light beam that can only be seen through the use of night vision goggles as well as a visible led beam output, pure white in color.Â 750Nm, 850Nm or 940Nm versions.Â This light can run on any voltage from 9 to 42 volts and provides an extremely rugged infrared lighting solution that is ideal for use in commercial and industrial security applications as well as military environments. The LEDLB-60E-VIR-CB visible andÂ infrared LED light bar from Larson Electronics produces light in the infrared 750Nm, 850Nm or 940Nm end of the light spectrum depending upon the version selected, the unit also produces pure white, 6000 kelvin light that is visible.Â Thirty Edison EdixeonÂ® 3 watt infrared emitters producing 180 lumens each are arranged inÂ an alternating pattern with 30 Edison Edixeon 3 watt visible led emitters to create a checkerboard pattern unit.Â The LEDs areÂ paired with high purity 10 degree optics to produce a tightly focused spot beam 1,450` long by 220` wide with limited spread or light spillage. We offer optional floodlight versions of this light that have 35 degree optics to produce a wider beam spread and more infrared light over a larger area nearer the fixture. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison EdixeonÂ® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems donâ€™t always operate with 12 volts and external generators, transformers or inverters are impractical.
