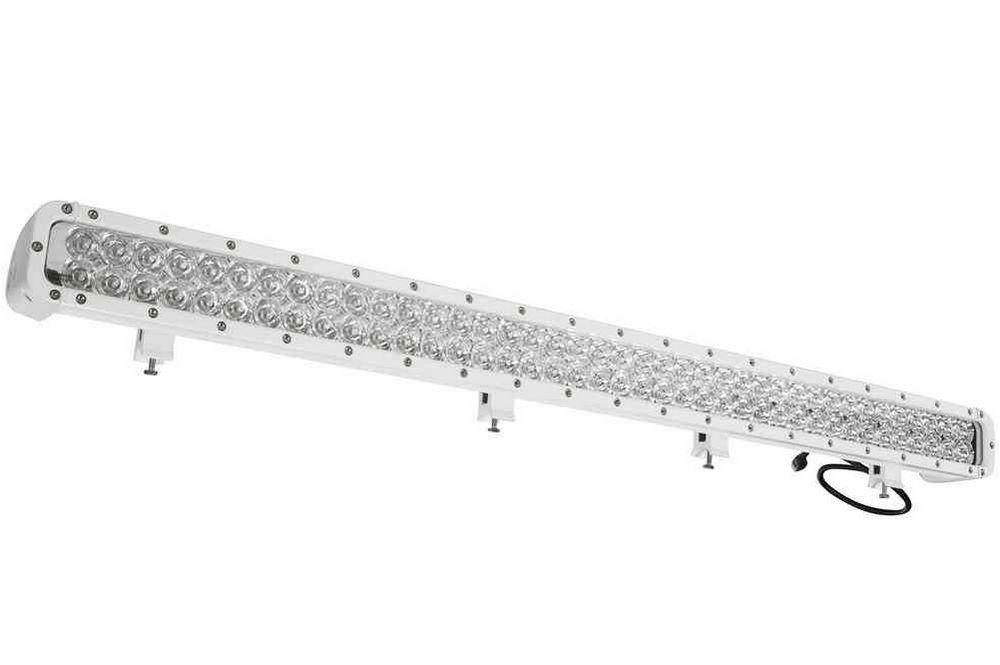

Infrared LED Light Bar - Extreme Environment - 80, 3-Watt LEDs - 9~42 Volts DC

LARSON ELECTRONICSSKU: PL3-LEDLB-80E-IR
filler

Price:
Sale price$4,851.99

Description

Specifications / Additional Information
LEDLB-80E-IR LED Light Bar LEDLB LED Features
LEDs: 80 Edixeon® 3 Watt Infrared LED Emitters Edixeon® 3 Watt LED Emitters
Dimensions: 42.25"-L  3.25"-H   3.56"-D LEDs Driven At 80%
Watts: 180 -40 C~ +80C Operating Temp Range
Voltage: 9-42 VDC Spot Beam: 1650`L x 320`W Flood Beam: 540`L x 520`W RoHS Compliant
Weight: 20.2 Lbs 70% Lumen Retention @65,000 hours
Lighting Configuration: 10° Spot or 35° Flood Ambient Op Temp -40C to +125C
Mounting: Stud Brackets IP68 Rated Waterproof
Wiring: Deutsch IPD / LADD DT04-2P connector
Amps: 20 (on 12 volts)  10 (on 24 volts)
Lumens:14,400
LED Light Color: Infrared:750Nm, 850Nm or 940Nm
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '
Buy American Compliant The Larson Electronics LEDLB-80E-IR Infrared LED Light Bar offers high infrared light output and extreme durability combined with versatile mounting and power options.This IP68 rated LED light bar produces an infrared light beam that can only be seen through the use of night vision goggles. 850Nm versions have a very slight red glow around the LED emitters when veiwed from a certain angle while 940Nm versions are completely invisible to the naked eye. This light can run on any voltage from 9 to 42 volts and provides an extremely rugged infrared lighting solution that is ideal for use in commercial security applications, law enforcement and military environments. The LEDLB-80E-IR LED light bar from Larson Electronics produces produces light in the infrared 850Nm or 940Nm end of the light spectrum depending upon the version selected. Eighty Edison Edixeon® Infrared Emitters containing CREE EZBright® three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused, 1650` long by 320` wide light beam with 14,400 lumens of light while drawing only 240 watts @20 amps from a 12 volt electrical system. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more infrared light over a larger area nearer the fixture.These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical.
LEDLB-80E-IR 35° Flood Beam (Opt) LEDLB-80E-IR 10° Spot Beam (Stnd)
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three feet and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Mounting: Larson Electronics LEDLB series light bars are equipped standard with aluminum mounting blocks which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each aluminum mounting block has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light. We also offer a BC-2 bar clamp mounting system for even greater mounting versatility. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
