Dimensions: 6.25"-LÂ Â 3"-HÂ Â 3.56"-D (LED head only)
LEDs Driven At 80%
Watts: 24
-40 C~ +80C Operating Temp Range
Voltage: 110VAC; & 9-42 VDC
RoHS Compliant
Weight: 3.4 Lbs
70% Lumen Retention @65,000 hours
Lighting Configuration: 10° Spot or 35° Flood
LED Chip Op Temp -40C to +125C
Mounting: 150lb. Magnetic Grip Base
Light - IP68 Rated Waterproof to 3 meters
Wiring: Deutsch IPD / LADD DT04-2P connector
Amps:Â 2 (on 12 volts)Â Â 1 (on 24 volts)
Lumens: 1440
LED Light Color:Infrared:850Nm
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
CE Certified
3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
Â
'
Product Overview
'
Buy American Compliant

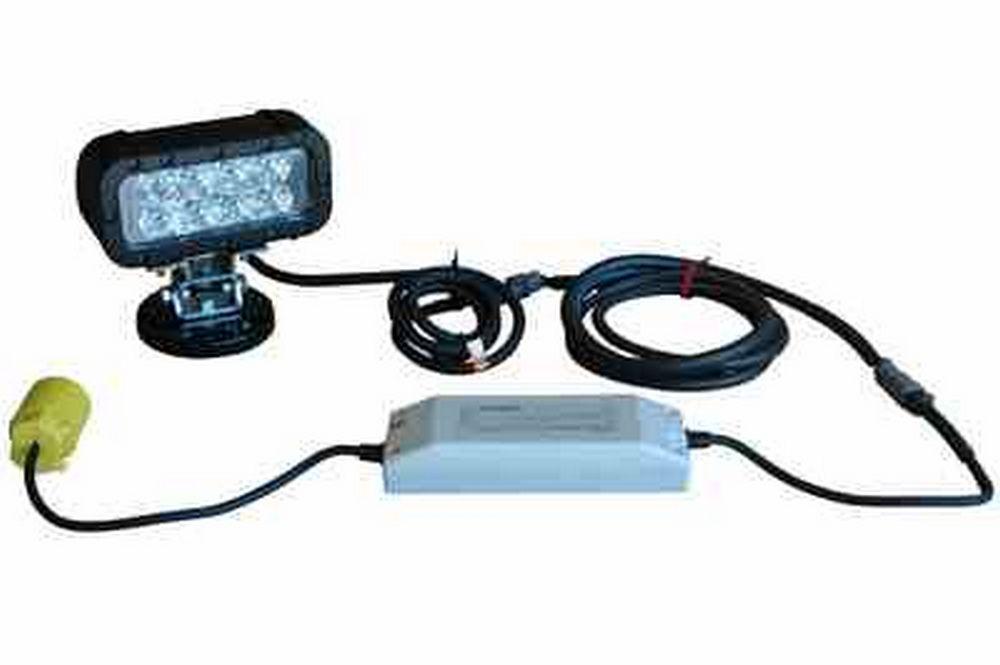

The Larson Electronics LEDLB-8E-IR-M-110V infrared LED Light Bar offers high light output and extreme durability combined with a 150lb. magnetic grip base for temporary mounting solutions to metallic surfaces. This IP67 rated infrared LED light bar produces an infrared light beam in the 850 nanometer (NM) range. The 850Nm versions have a very slight red glow around the LED emitters when viewed from a certain angle while higher NM units cannot be viewed with the human eye. This light comes standard to run off of a 110VAC wall plug in source, however, operator can remove the transformer allowing the unit to run on any voltage from 9 to 42 volts. This unit is set up as a medical infrared led light emitter. Larson Electronics provides 6 feet of SOOW cable so that the LED is able to position itself away from the wall where it receives it`s power.
The LEDLB-8E-IR-M-110V infrared LED light bar from Larson Electronics produces light in the infrared 850Nm standard, which is what is recommended for medical use. Eight Edison Edixeon® 3 watt infrared emitters producing 180 lumens each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam 325` long by 70` wide with limited spread or light spillage. We offer optional floodlight versions of this light that have 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture. These LED light bars are IP67 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability.Â
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units come standard with a 120vac plug in. However, these units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. When the transformer is removed, these LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result.
LEDLB-8E-IR-M-110V 35° Flood Beam
(Opt)
LEDLB-8E-IR-M-110V 10° Spot Beam
(Stnd)
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme.
Magnetic Mounting: This unit comes standard with a 150lb. Magnetic Grip Base. This base attaches to various metallic surfaces and still offers 140 tilt as to adjust the angle of the unit. This allows operators to mount to a surface while still aiming the unit at desired position for
therapy.
Measurements:
Taken at 5 feet from the lens.
850nm Spot - 1430 uWatts/cm^2
850nm Flood - 190 uWatts/cm^2
940nm Spot - 940 uWatts/cm^2
Â
Â
