|LEDP5W-12ETÂ LED Light Bar||Internal LED Driver Features|
|Lamp Type: CREE XLamp XPGÂ® LED||Fast average current control|
|Dimensions: 3.9 "-WÂ Â 2"-DÂ Â 5.5"-H||Programmable off-time switching|
|Voltage: 9-46 VDC||Linear dimming input|
|Watts: 60||PWM dimming input|
|Lumens: 5556Â||Short protectionÂ w/Skip mode|
|Lighting Configuration: 10Â° Spot orÂ 40Â° Flood||AmbientÂ OpÂ Temp -40C to +125C|
|Led Drive %: 90%||Pin-compatible with the HV9910B|
|Optics Efficiency: 90%Â||IP68 Waterproof - Tested to 3 Meters|
|Color Temp: 6000K|
|LED Life Expectancy: 50,000 hours|
|Housing Colors: Black or WhiteÂ|
|Amps: 5 (on 12 volts)Â 2.5 on 24 VoltsÂ|
|Materials: Aluminum Housing, Polycarbonate LensÂ|
|Mounting: Adjustable Trunnion|
|Wiring: Deutsch IPD / LADD DT04-2P connector|
|CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.|

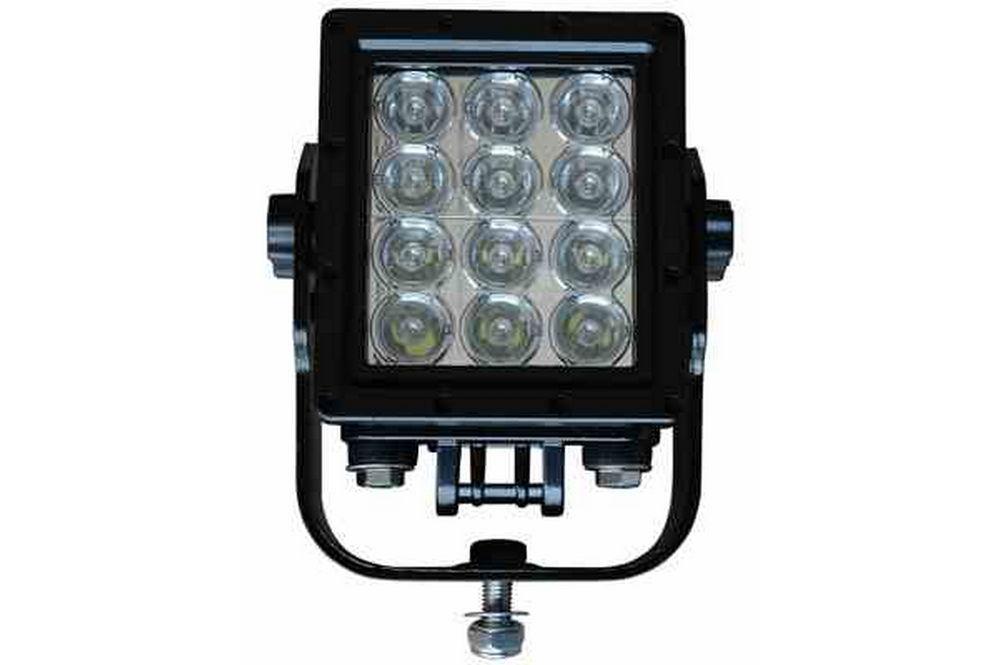

|Buy American Compliant The LEDP5W-12ET LED Light Bar offers high light output from a compact form factor and is designed specifically for extreme durability in high stress operating conditions. This 60 watt light bar produces 5,556 lumens and is designed to withstand sustained heavy vibration making it ideal for mounting on machinery or equipment and well suited for use in mining, manufacturing and industrial environments where durabilty is critical. The trunnion mount on this particular LED light allows for 270 degrees of adjustability, even after the unit has been permanently mounted. Â The LEDP5W-12ET LED light bar from Larson Electronics produces 5,556 lumens of bright light while drawing only 60 watts @5 amps from a 12 volt electrical system. Twelve CREE XLamp XPGÂ® five watt LEDs producing 525 lumens each are paired with high purity 10 degree optics to produce a tightly focused spot beam. We also offer optional floodlight versions with a 40 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. This LED light bar is designed to withstand extreme vibratory conditions and is waterproof to 3 meters, sealed against intrusion by dust and dirt and built to survive use in the most demanding environments. An integral Pulse Width Modulation controller, small profile, low power requirements, extreme durability and versatile mounting system makes this LED light emitter a superior lighting solution for a wide array of applications including but not limited to: mining, military, industrial manufacturing, machine visioning, boating,Â vehicle and commercial equipment illumination.|
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or â€œduty cycleâ€ accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LEDâ€™s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
PWM Control: The pulse width modulation drivers in this unit also provide secondary benefits through the ability to tap into a provided input wire with an external pulse generator and adjust the duty cycle of the current being applied to the LEDs. Thus you can connect an external dimmer, switch or pulse control and adjust the perceived output of the light, effectively causing the light to flash, dim or brighten to the desired levels. Additionally, this method of controlling light output results in a corresponding drop in amperage draw, so if the duty cycle is cut back to 50% there will be a matching 50% reduction in amperage draw. These units are also able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDP5W series light bars can operate on current ranging from 9 to 46VDC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it.
Durability: As well as unparalleled heat control, the LEDP5W series of LED light bars from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The CREE XLamp XPGÂ® LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use.
Mounting: The trunnion mounting design on the LEDP5W-12ET allows for post-installation angle positioning. This means that by loosening 2 thumb bolts located on either side of the light, the operator can adjust the positioning angle of this light 270 degrees. Then he/she would simply have to tighten thumb bolts to lock the angle in place. No tools are required for adjusting angle.
Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB, LEDP10WÂ and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors.
